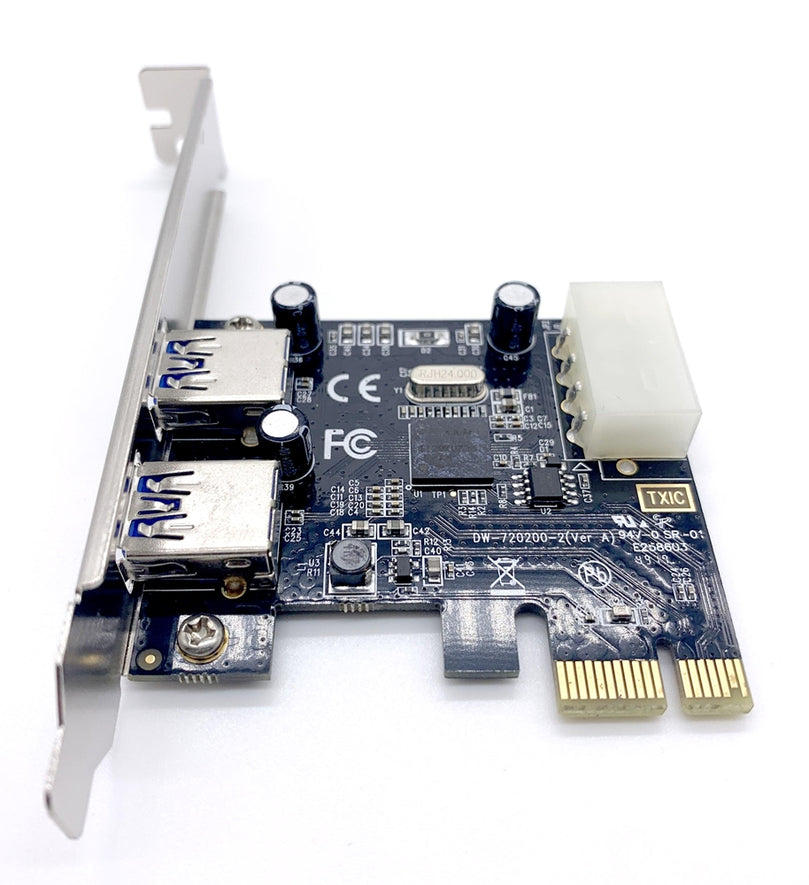

2-Port SuperSpeed USB 3.0 PCI-E PCIE PCI Express 4-pin IDE Connector Adapter usb3.0 Add On Card With Low Profile

:In stock



Supports PCI Express2.0 X 1Lane, can transferring up to5Gbps MAX.

Supports USB 3.0 specfication typeA Connector X 2ports.

Backward compatible to USB 1.1/USB 2.0.

Supports tHe following speed data rate: Low-speed(1.5Mbps)/Full-speed(12Mbps)/High-speed(480Mbps)/Super-speed(5Gbps).

Suppots PCI Low profile.

Supports External power plug in order to supplying power for each USB3.0.

Up to 900mA MAX/port.

System Requirements:

PC with 512MB of RAM and 1.0GHz or faster processor.

1 available PCI Express 1.x or 2.x slot.

32-bit & 64-bit Windows Vista/Server 2008/Windows 7.


To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot.

To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required.

Supports both 32-bit & 64-bit OSes.

Make sure the power is well connected; otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.

The file NEC(Renesas)-201-202-DR-WIN-20120531 of the CD is for PCI Express Card.


Item size: 12 * 6.5cm / 4.7 * 2.6in

Item weight: 45g / 1.6oz

Low Profile Bracket size: 8 * 1.8cm / 3.1 * 0.7in

Package size: 15 * 13 * 3cm / 5.9 * 5.1 * 1.2in

Package weight: 110g / 3.9oz

Package list:

1 * PCI Express Card

1 * Software Drivers CD

1* Low Profile
