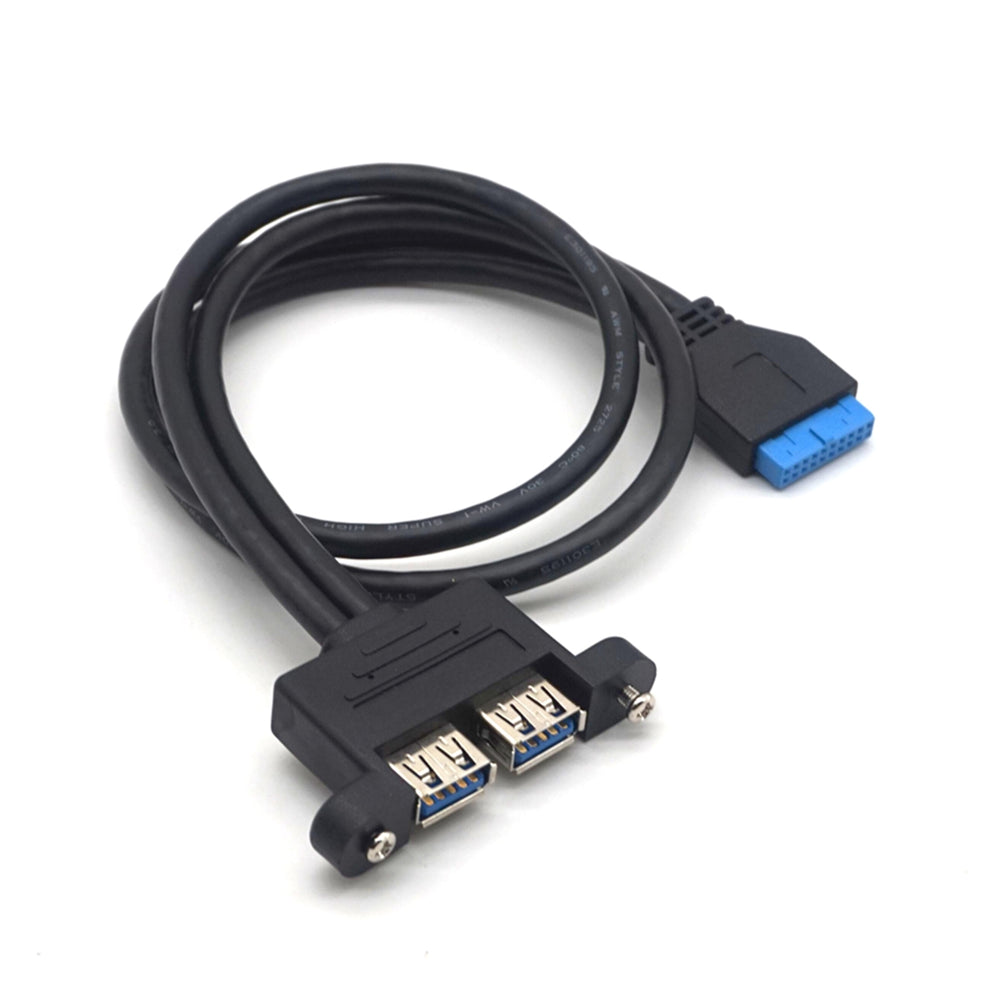

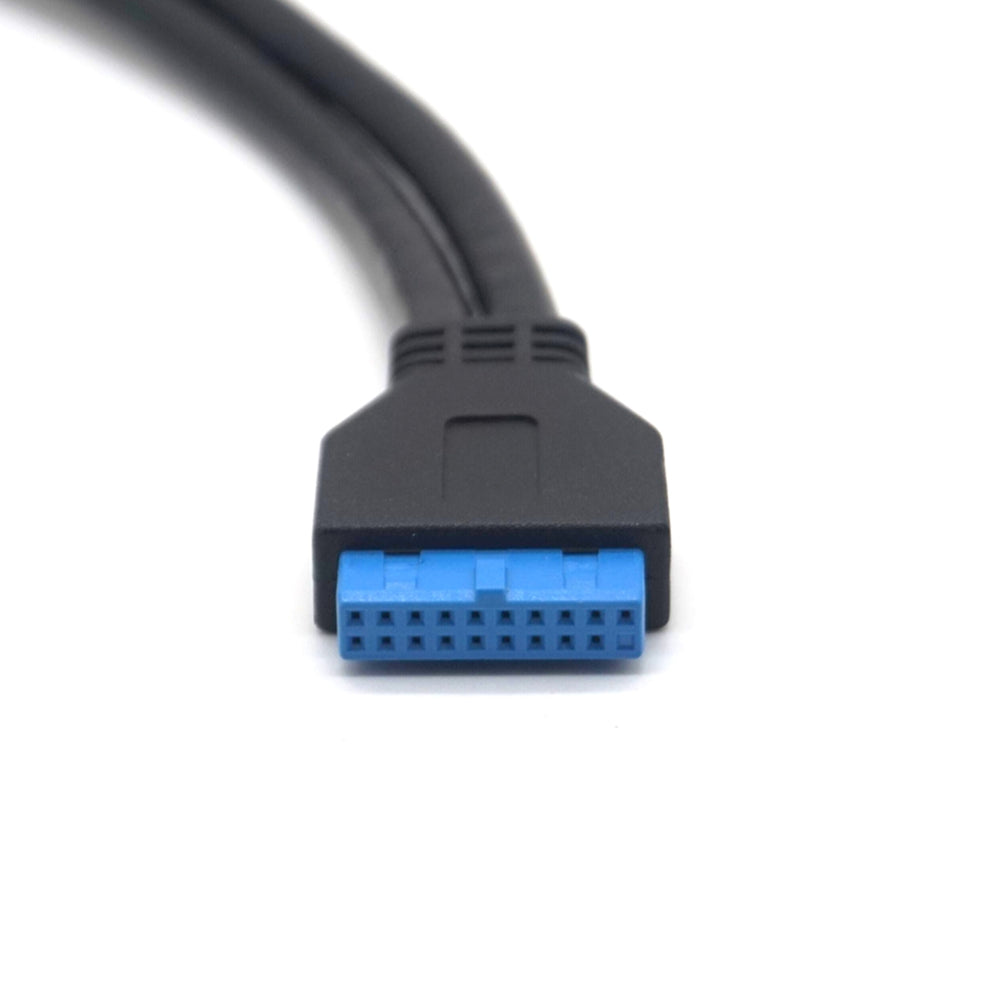

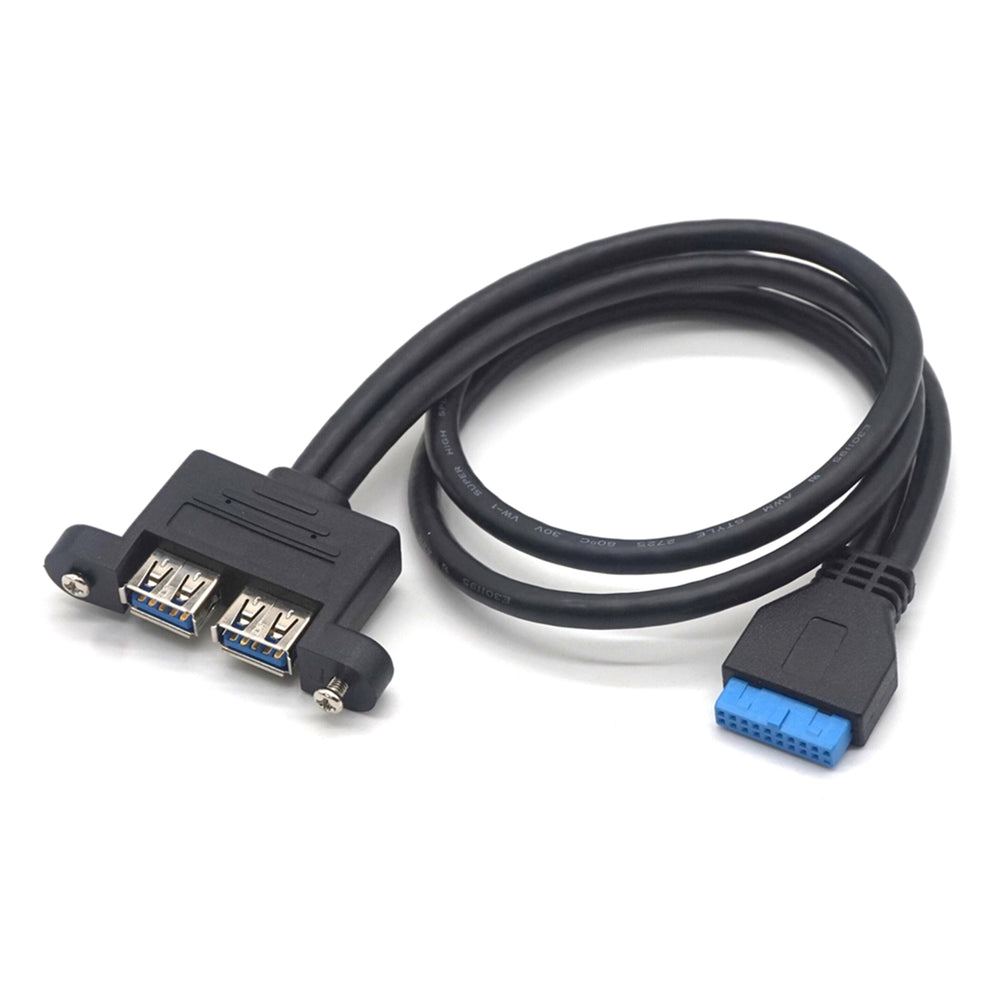

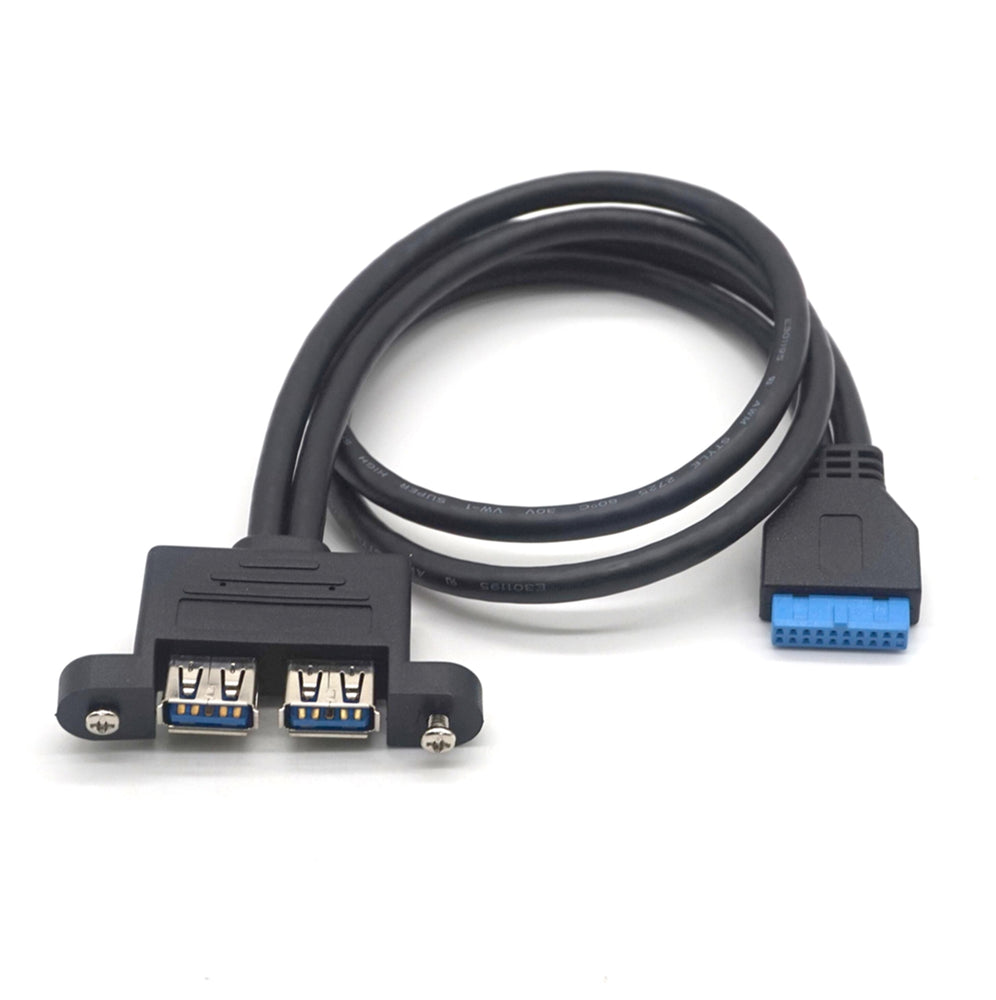

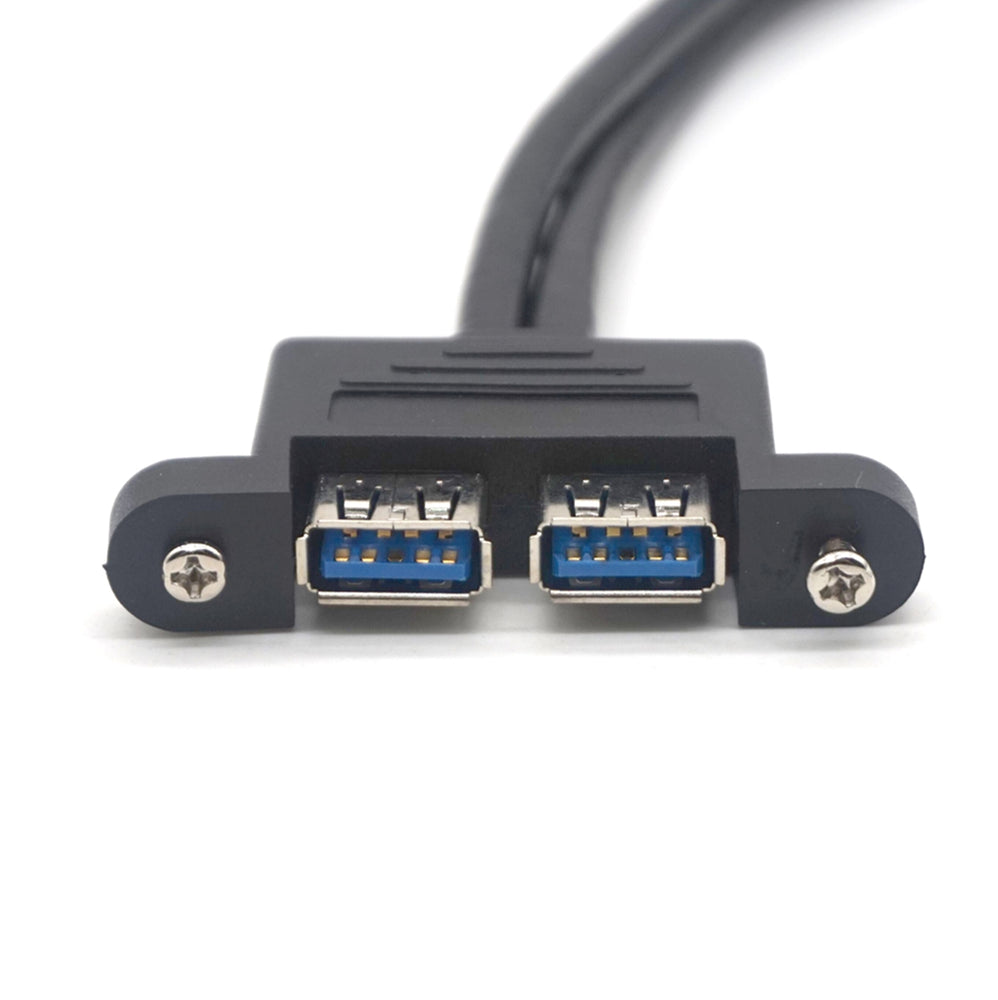

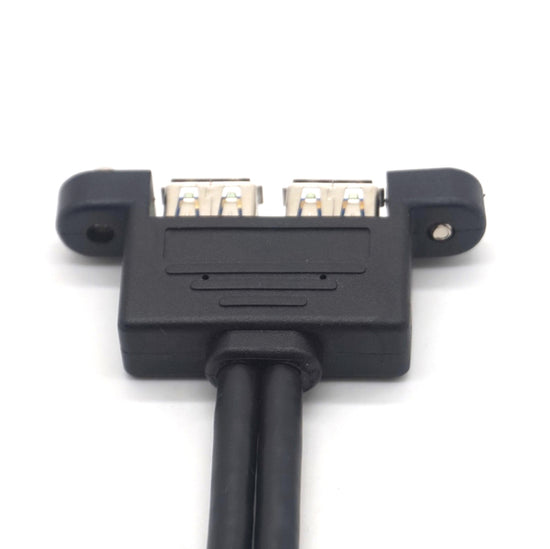

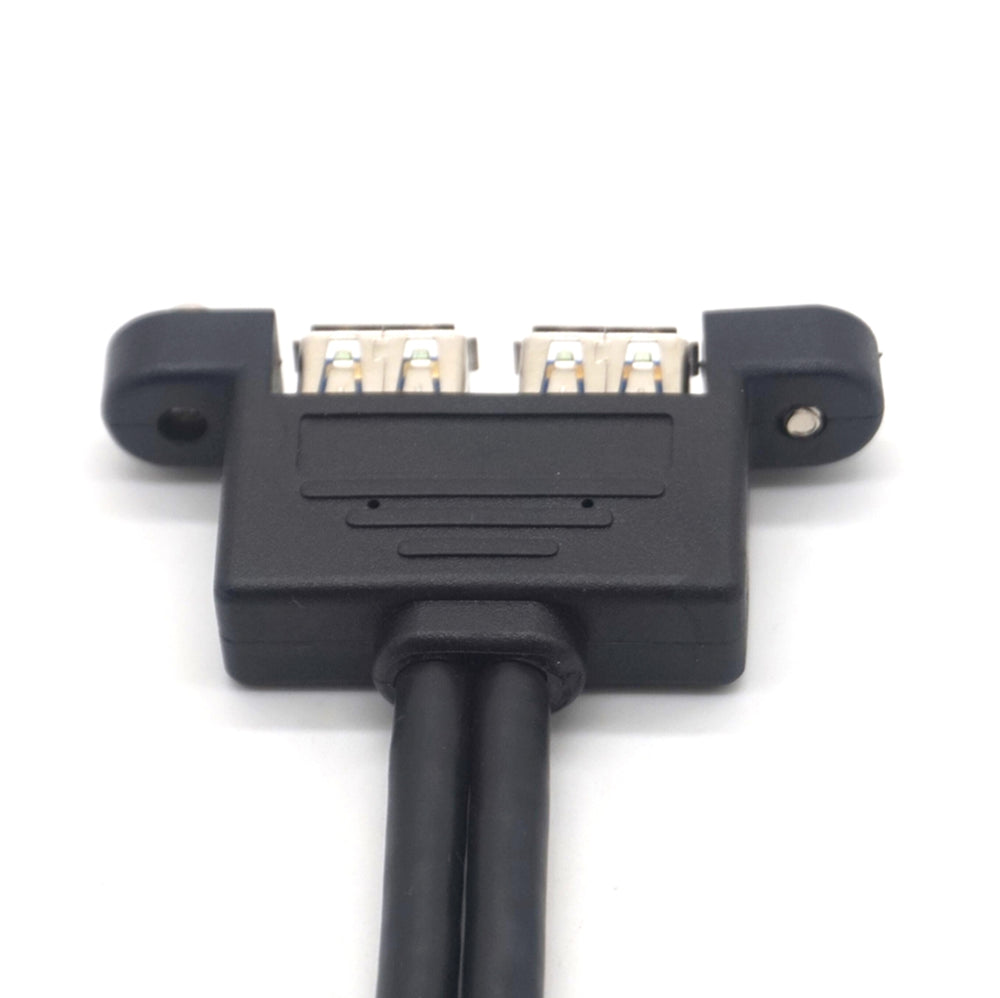

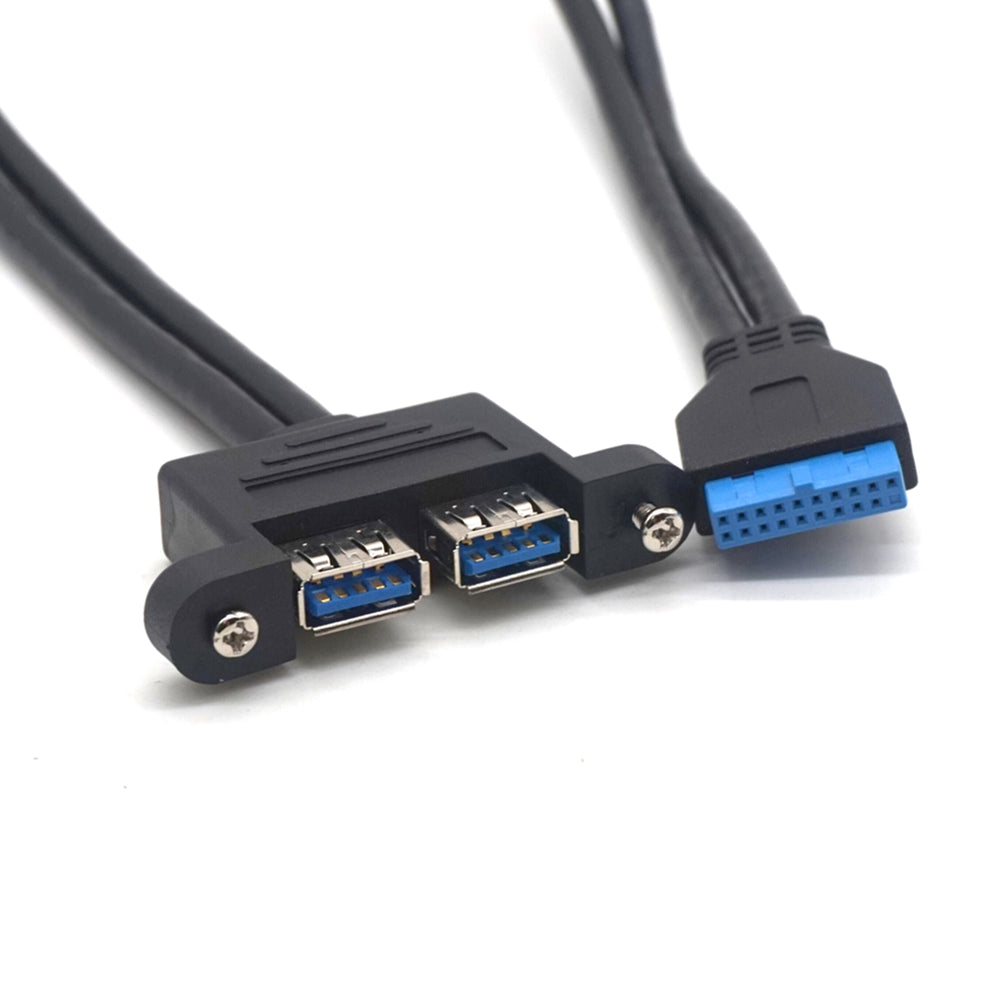

Plugadget 19Pin Female Header to Dual USB3.0 Female 20Pin USB 2 Port Splitter Cable with Screw PCIe Profile Bracket for DIY Motherboard Front Panel

:In stock



Cable Length: About 50cm.

Type: 2-Port USB 3.0 A female to 19Pin/20Pin header

Suiltable: For PC Desktop PCI Slot Position;

Speed: USB 3.0 Hi-Speed 5Gbps;

Support system: WinXP/Vista/Win7/Win8 32-bit/64-bit MAC10.8 or higher

Screw hole spacing 47.5MM, two USB port spacing 16.5MMM ,Gift full height Bracket

Product Usage:

With the popularity of USB3.0, more and more motherboards will provide 20pin USB3.0 interface, and many DIY enthusiasts install PCIE adapter cards to achieve 20pin USB3.0 interface! You can use this device to directly convert the 20pin interface on the board into two USB3.0 ports and install it in the original USB2.0 position. This provides the front-mounted SuperSpeed USB3.0 interface, which is very convenient!

This cable is used to modify the USB port of the chassis. You can first remove the USB2.0 port that was originally fixed on the chassis panel and then install the cable.

Product description:

environmentally friendly wire and connectors, with excellent electrical conductivity, high-speed transmission of data.

Data wire twisted pair (impedance matching): Minimize data line signal crosstalk.

Provides ultra-fast data transfer rates of up to 5Gbp/s.

Flexible PVC jacket: flexible and not easy to break, durable

Overmolded, not easy to break, durable, ensuring error-free data transmission.

Intimal shielding: Helps reduce signal interference and is 100% compatible with current USB specifications.

Braided copper mesh and aluminum-platinum double-layer shielding: can greatly reduce electromagnetic interference and radio interference.

Package Included:

1 x 2-Port USB 3.0 Female to 19pin Extension Cable
