Features:

Note:

Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router

Please comfirm that you device output power range is between 3dBm and 20dBm,only that the wifi signal booster could work well .

Low-noise receive gain.

Signal activity LED indicates.

High Gain, High Value, High Performance.

Maximum output power of 8000mW by the Booster.

Plug-and-play, Easy installation, no driver needed.

Ideal for increase the 2400-2500Mhz frequency devices.

Increase the effective range and coverage area of your Wi-Fi network.

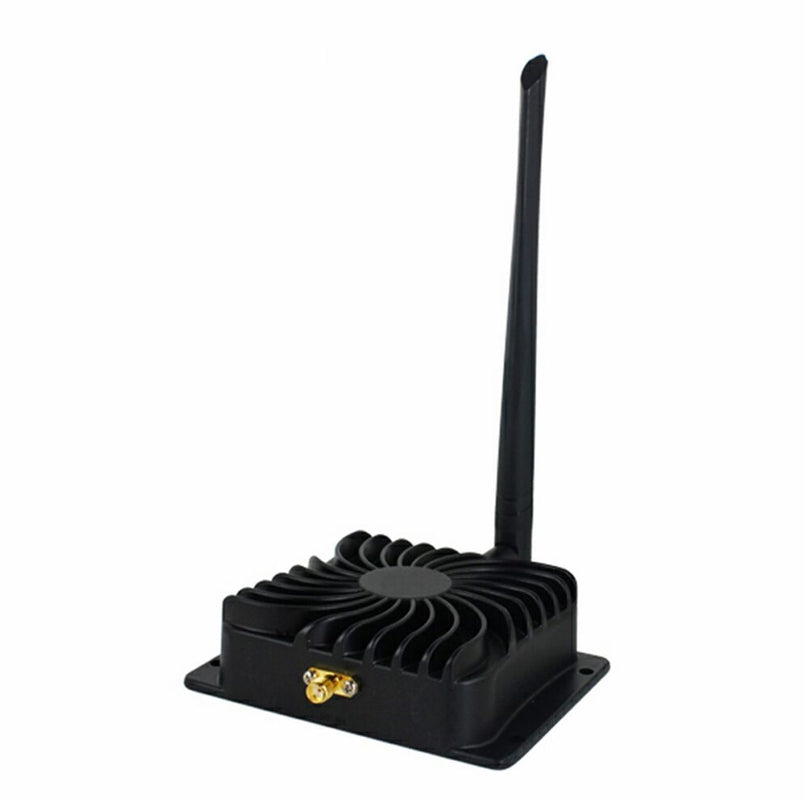

Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.

The amplified wireless signal may even penetrate complex environments with many walls and obstacles.

Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).

Specification:

Operation Range: 2400-2500 MHz.

Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.

Frequency Response: ± 1dB over operation range.

Input Power: 3dBm (Min.)-20dBm (Max.).

Output Power: 8000mW/39dBm nominal

Connector: SMA Receptacle, 50 ohm.

Transmit Gain: 16-18dBm nominal.

Receiver Gain: 10-12dBm.

Receive Noise Figure: 3.0dBm nominal.

Operating Temperature: -40 to 70 degree.

Operating Humidity: Up to 95% relative humidity.

Material: Cast Aluminum

INPUT：100-240V 0.3A  50/60HZ

OUTPUT:12V  1.5A

Package Included:

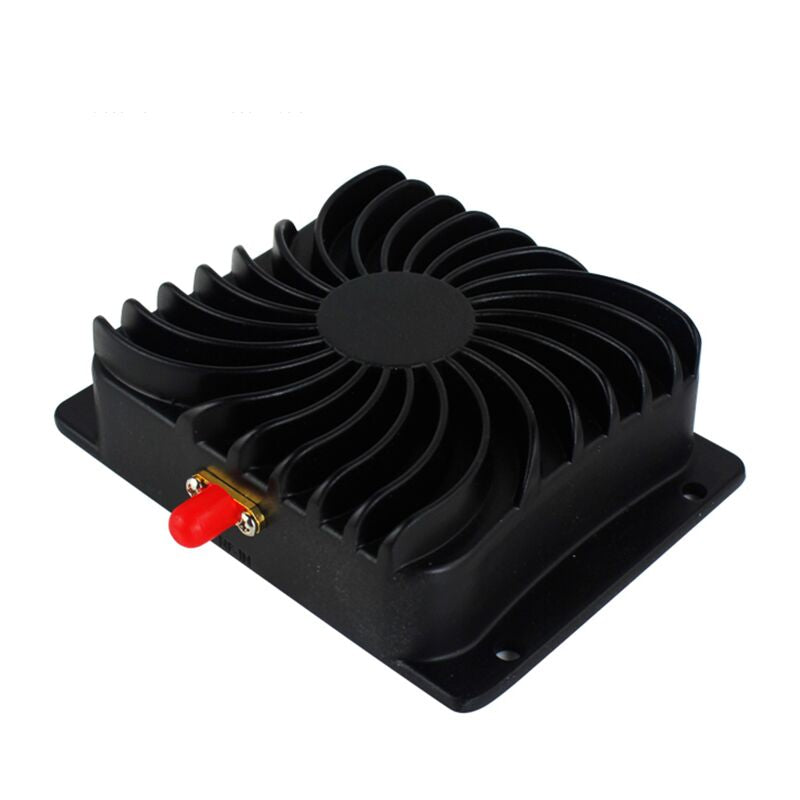

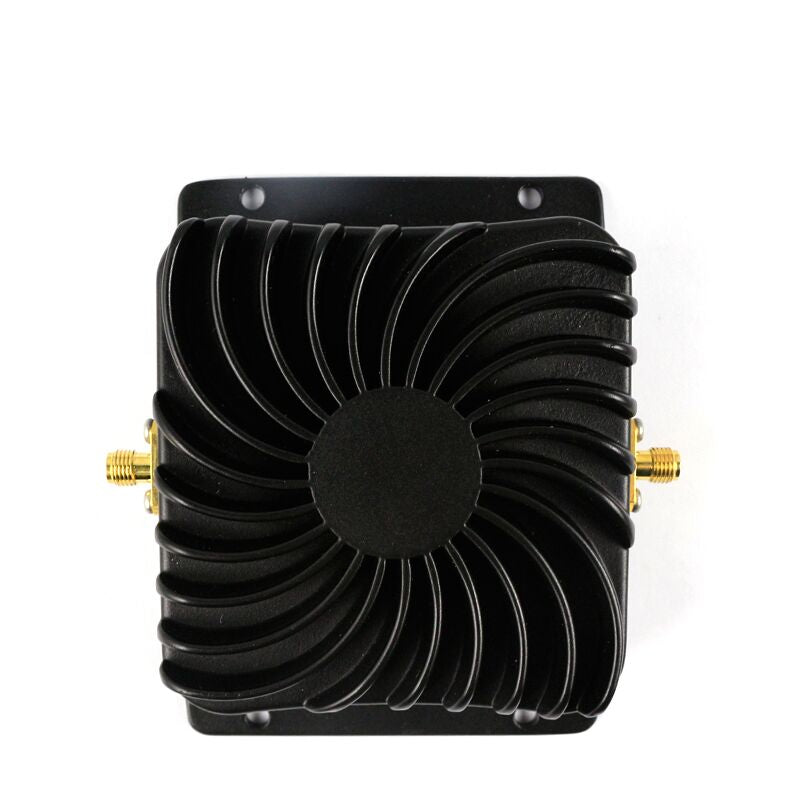

1 x Wireless signal power amplifier
