Features:

100% brand new and high quality

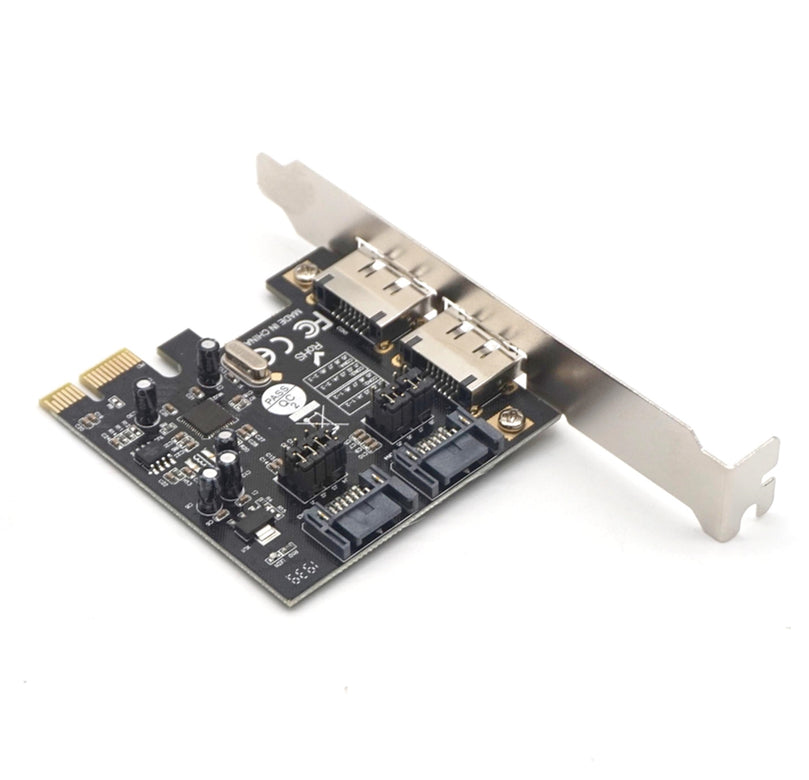

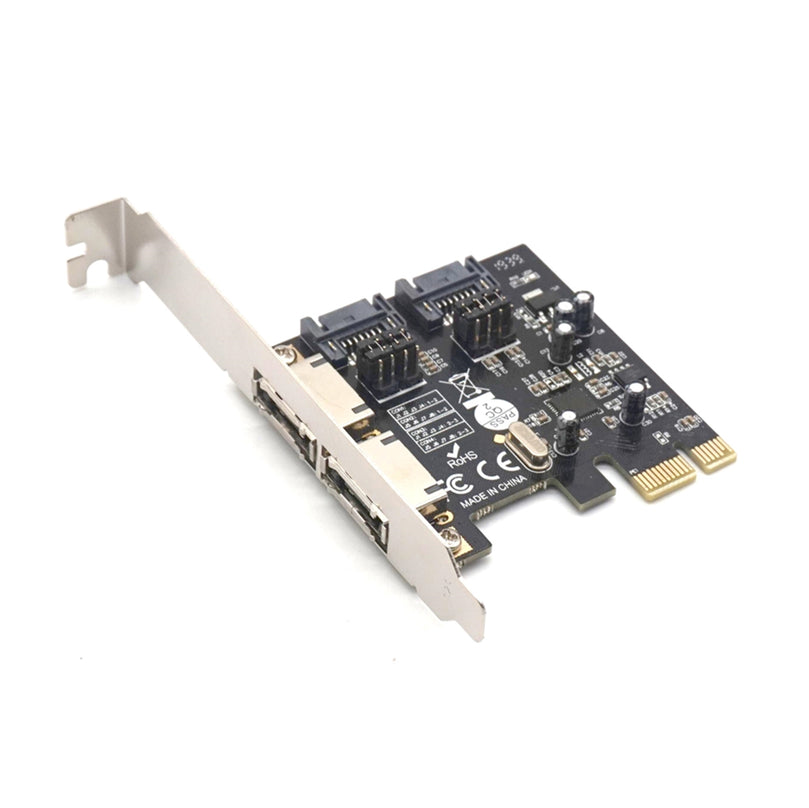

PCI-E PCI Expess to 2 SATA 2 ESATA Adapter Card.

Compliant with Serial ATA 3.0 Specification the Data transfer rate up to 6.0Gb/s

Serial ATA III is compatible with speed negotiation serial ATA II and serial ATA I.

Chipset: ASM1061

Support SATA 3.0 port

2 x SATA Port

2 x ESATA port

AHCI Compliant

Hot-Plug capability

Support 2TB Hard Disk

Speed: 6Gbps (each SATA port)

Compatible with SATA Revision 2.6

Support Native Command Queuing(NCQ)

Compatible with SATA(III, II, I), Hard Drive, SSD.

Driver supported Windows98SE / ME / 2000 / XP / Server 2003 / Vista / WIN7/8/10 32 / 64bit

Size:(L*W)12.00*6.60cm/4.72"*2.60"

Quantity:1Set

Note:

This card must use the PCI-E 2.0 slot to increase the speed. Please confirm the specifications of the PCI-E slot on your motherboard.

This card is based on the SATA3.0 function provided by the admedia ASM1061 chip. It is used for the expansion of the SATA3.0 interface and cannot be used as an array.

Motherboard BOIS settings: SATA mode must be changed to AHCI. Although some motherboards have PCIE version 2.0, BOIS does not enable high-speed transmission mode (gen2 high speed mode) by default.

It only can connect 2 SATA or 2 ESATA port at the same time by Jumper setting.

Package Included:

1 x PCIE to 2 STA3.0 2 ESATA expansion cards
