Features:

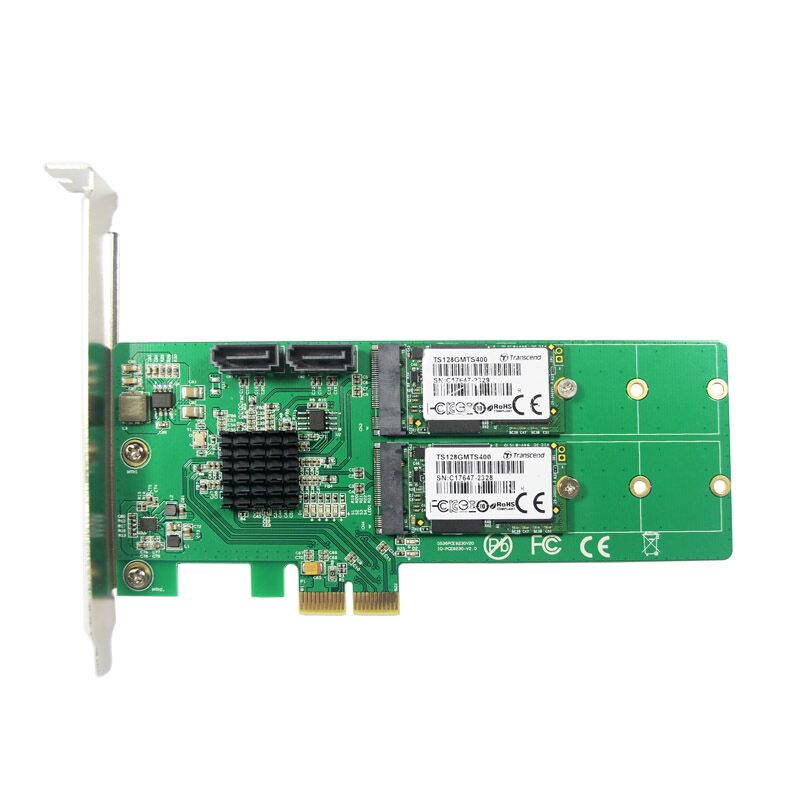

The PCI Express card expands your PC by two M.2 NGFF slots as well as two SATA connectors. You can connect up to two M.2 NGFF modules in format 2280, 2260, 2242 and 2230 and even connect up to two SSDs or HDDs.

· Supports PCIe 1.0 and PCIe 2.0 motherboard

· Compliant with PCI Express 2.0

· Fully compliant with Serial ATA specifications 3.0

· Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps

· Supports SATA I & SATA II & SATA III drive and M.2 NGFF SSD

· Supports ATA and ATAPI commands

· PCI Express M.2 specification 1.0

· Supports Native Command Queue (NCQ)

· Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD

· Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA

· Data transfer rate up to 6 Gb/s

System Requirement

· Require an empty PCIe x2 or x4 or x8 or x16 slot in computer

· Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

Package Included:

1 x PCI Express to 2x M.2 NGFF + 2x SATA adapter card

1 x User Manual

1 x Software Driver CD

4 x NGFF M.2 SSD mounting screws

1 x Low profile bracket

1 x SATA Cable
