Plugadget 5 port industrial grade non-managed Ethernet switch 10/100Mbps auto negotiation full duplex half duplex Auto MDI/MDI-X UT-6405

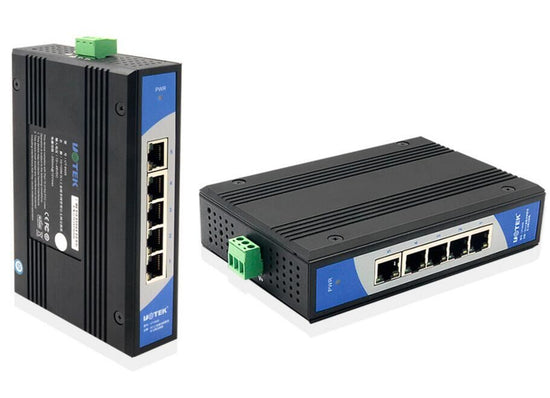

UT-6405 is a 5-port 10/100Mbps unmanaged Ethernet switch. It provides AC/DC input, reverse polarity protection; at the same time, it supports DIN-Rail and wall-mounted under industrial standard, easy for installation.

Product name: 10/100M 5-Port Unmanaged Ethernet Switch

Specification model: UT-6405

-5x10/100Base-T(X) ports

-Supports full-duplex or half-duplex

-10/100Mbps auto negotiation

-Auto MDI/MDI-X

-Built-in store-and-forward, supports multiple protocols

-Fail, relay output auto alarm function

-Telecom standard, MTBF>300,000 hours

Standards:IEEE 802.3 10Base-T IEEE 802.3u 100Base-T(X) & 100Base-FX

Ports:RJ45 port: 5x10/100Base-T(X)port, auto detection, full/half-duplex, auto MDI/MDI-X

LED indicators: PWR, 1~5 RJ-45 port indicator

Power requirement Voltage input:- DC9-48V, reverse polarity protection - AC9-38V

Power consumption: Max. 2.2 Watts

Terminal block: 1 pluggable 3-pin terminal block

Overload protection: Yes

Reverse polarity protection: Yes

Mechanical Characteristics

Case: steel

Installation: DIN-Rail/wall-mounted

Dimension(W x H x D): 150mm×30mm×100mm


Operating temperature: -10℃~60℃

Storage temperature: -40℃~85℃

Relative humidity: 5~95% (non-condensing)

Industrial standards

EMI: CE, FCC; EMI: FCC Part 15 Subpart B classA, EN55022 class A





IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)

Package Included:

1 x 10/100M 5-Port Unmanaged Ethernet Switch
