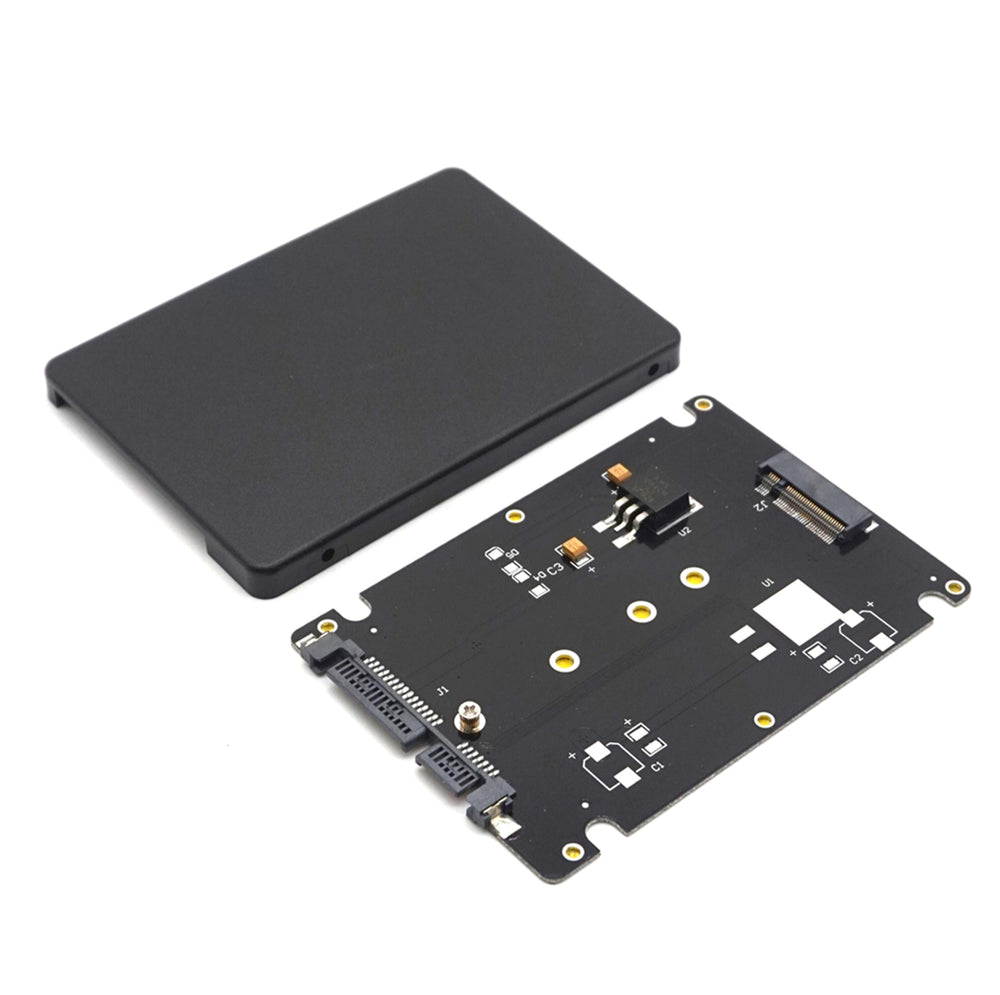

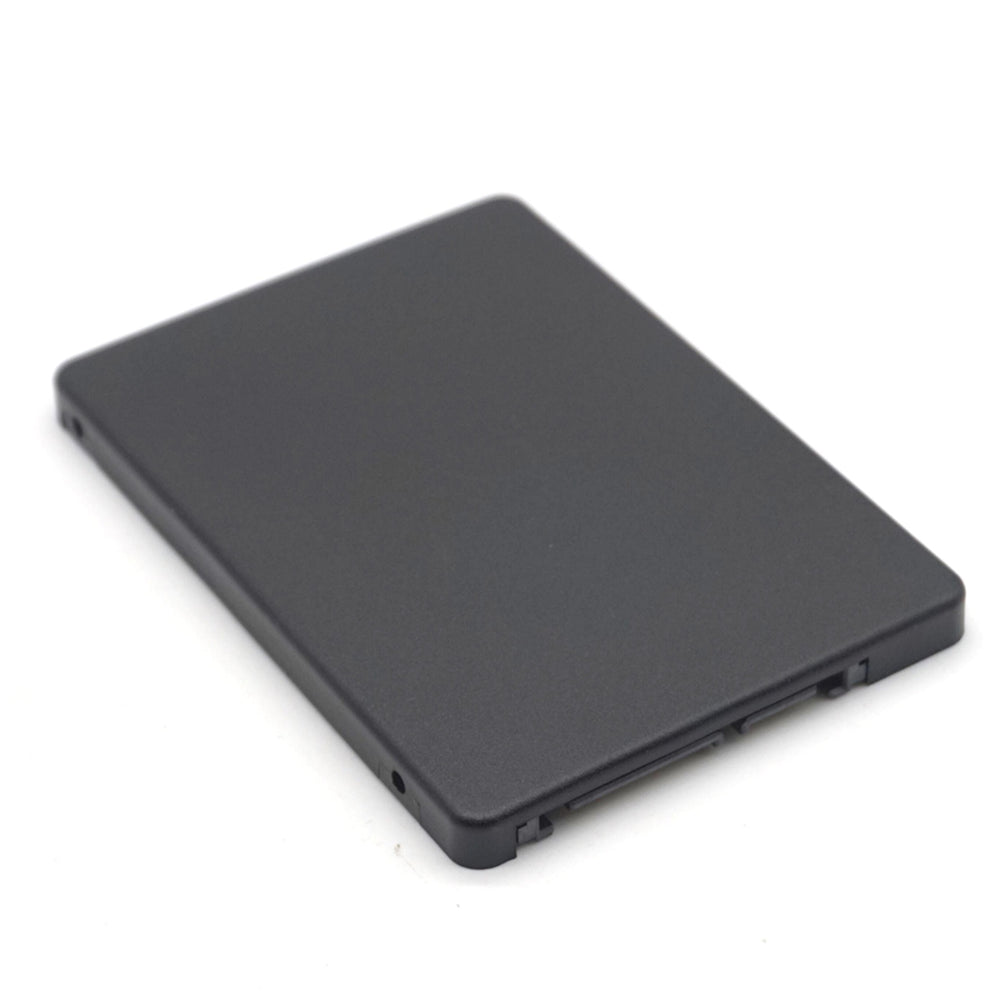

Plugadget B+M Key Socket 2 M.2 NGFF (SATA) SSD to 2.5 SATA Converter Adapter Card with Case For Desktop Laptop
This product only support socket2 (Gen2) B+M key SATA M.2 NGFF SSD,it can not support socket2 (Gen2) B+M key PCIe x2 M.2 NGFF SSD and socket3 (Gen3) M key PCIe x4 M.2 NGFF SSD,please confirm that your SSD is fit.

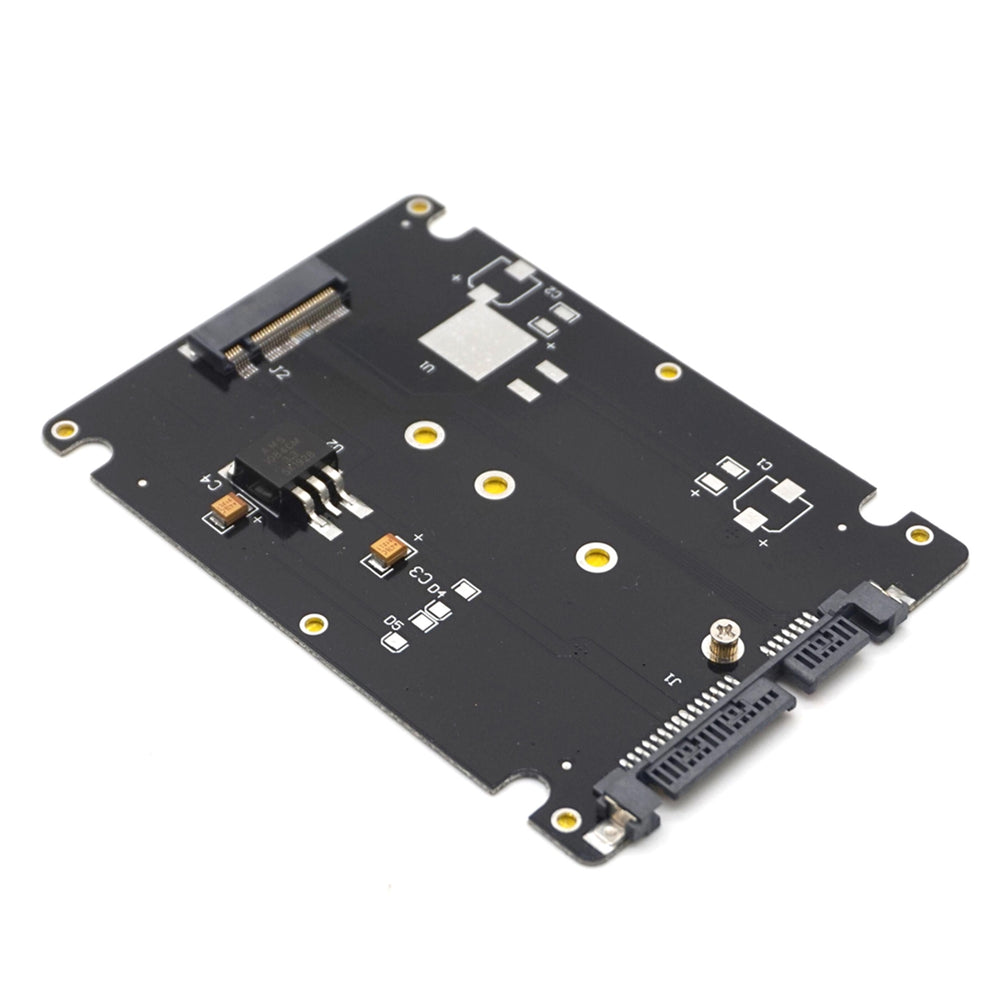

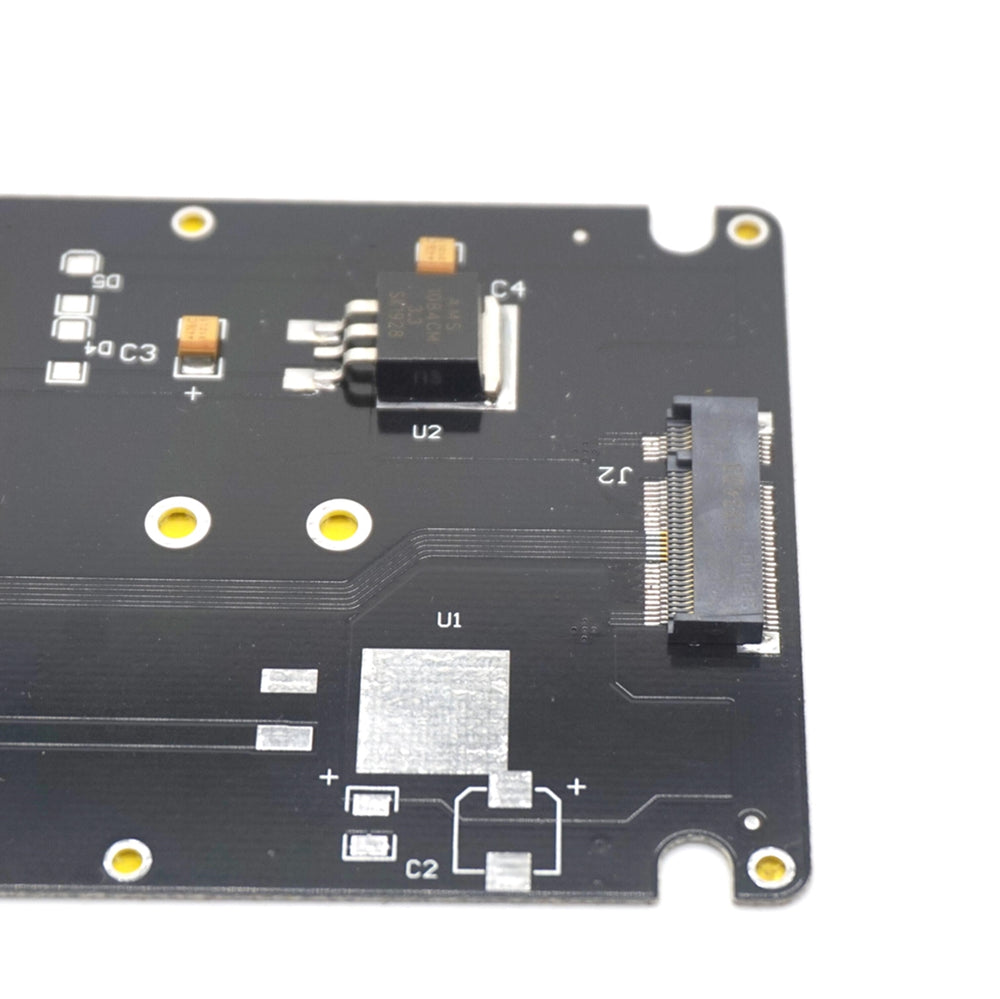

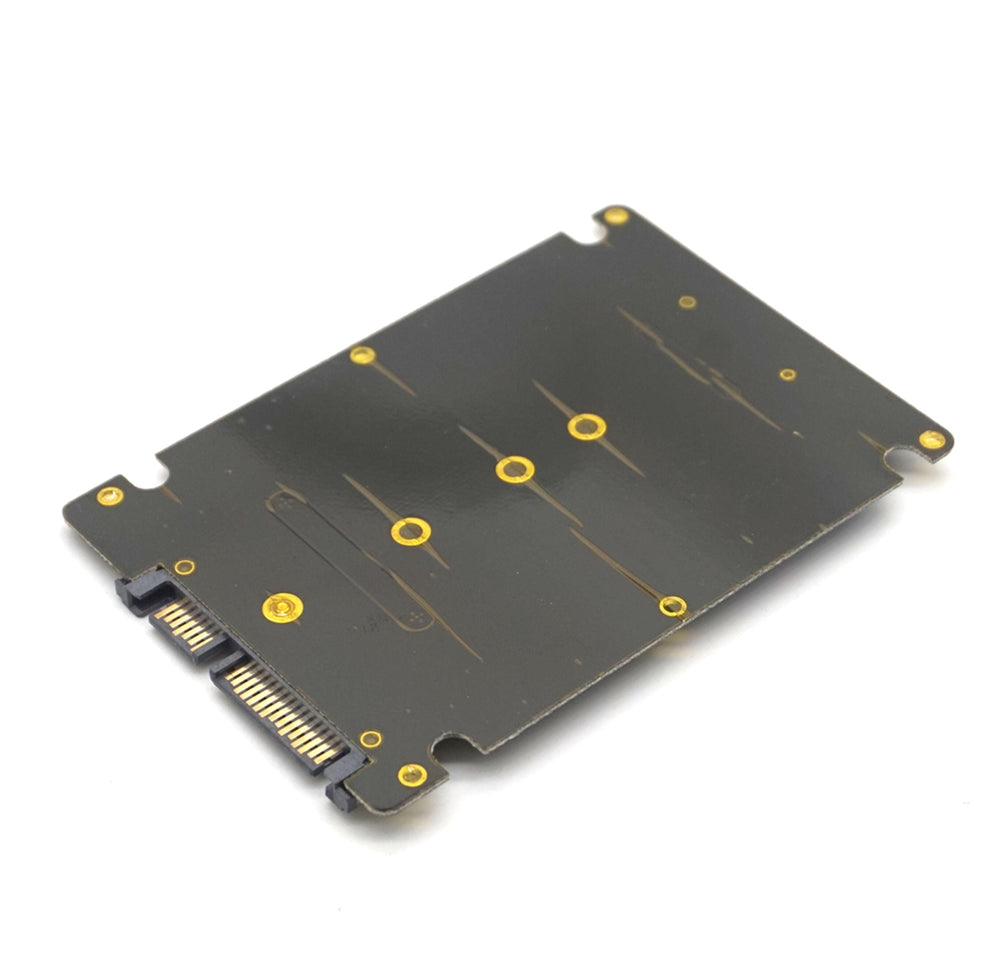

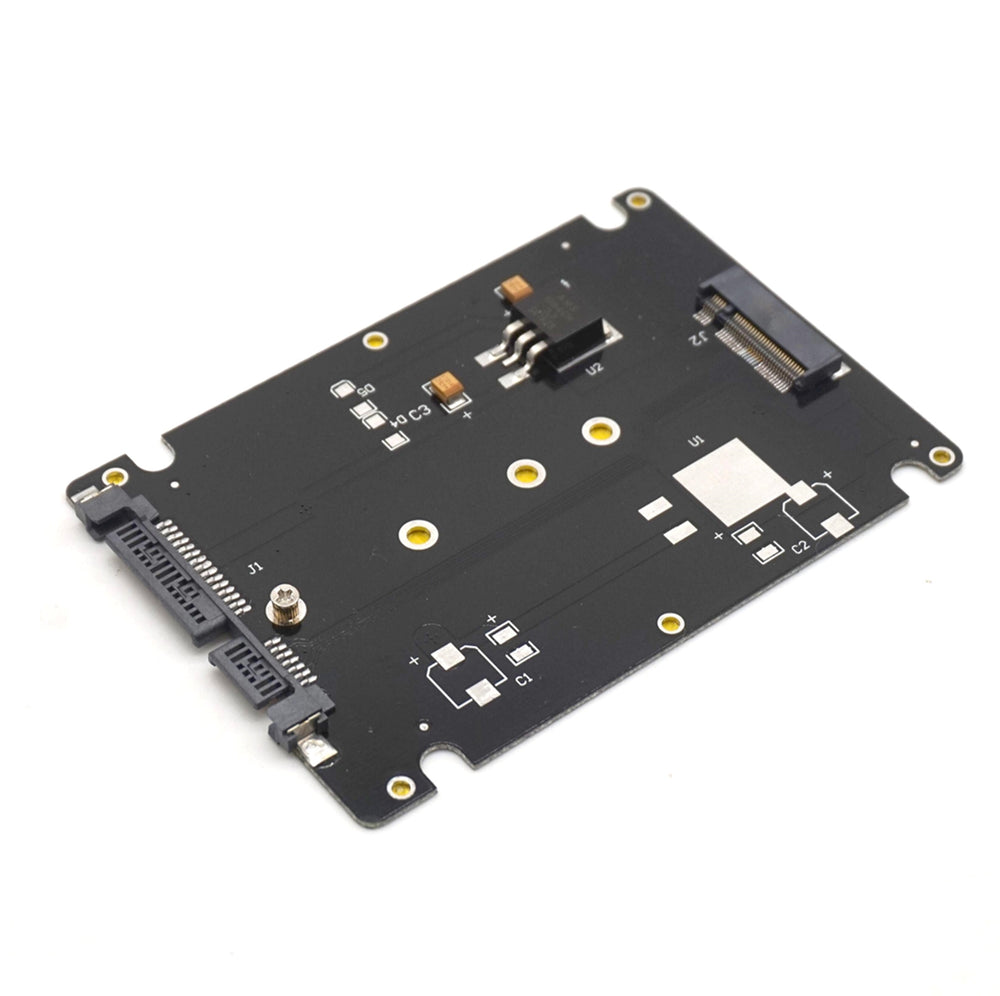

1.2.5" SATA to Soket2 B+M key SATA M.2 NGFF SSD adapter card.
2.The speed and other properties is not changed,only form conversion interface.
3.Support the 22*30 mm/22*42 mm/22*60 mm/22*80 mm size of SATA M.2 NGFF SSD.
4.You can connect it to desktop or laptop.
5.Transparent to the operating system and does not require any software drivers.
1.Size:10 cm*7 cm*0.7 cm.
2.Iterfation:M.2 NGFF to 2.5" SATA
There are three kinds of M.2 NGFF SSD, please pay attention to identify:
Product does not work troubleshooting:
A).Please confirm interface definition is correct of your hard disk,new SSD if there is no partition,open the "my computer" can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a new partition on the SSD.
B).Please make sure your hard drive can work normally in the original equipment,cancel the all the password set,especially the BIOS disk encryption password.
C).Upgrade computer BIOS to the latest version,revert to the default Settings.
D).Note the boot mode Settings,UFEI or Legacy.
E).You can connection USB port or connection SATA port of your computer to test this product,please change another test method if it can't work normally,it would exclude compatibility issues.
F).Please replace the SSD or computer test,because some computers not compatible with the specific model or a specific brand solid-state drives.
G).If the BIOS can detect hard disk,you can to partition normal formatting of hard disk,you can install system files,but can't normal into the operating system after installation,this because lack of he master boot record.you can rebuild the master boot record or use CD-ROM installation system,at the same time to partition for the hard disk.
Note 1 :
1. Socket 2 PCIE X2 B+M key M.2 NGFF SSD and SOCKET 3 PCIE X4 M key M.2 NGFF SSD don't support!

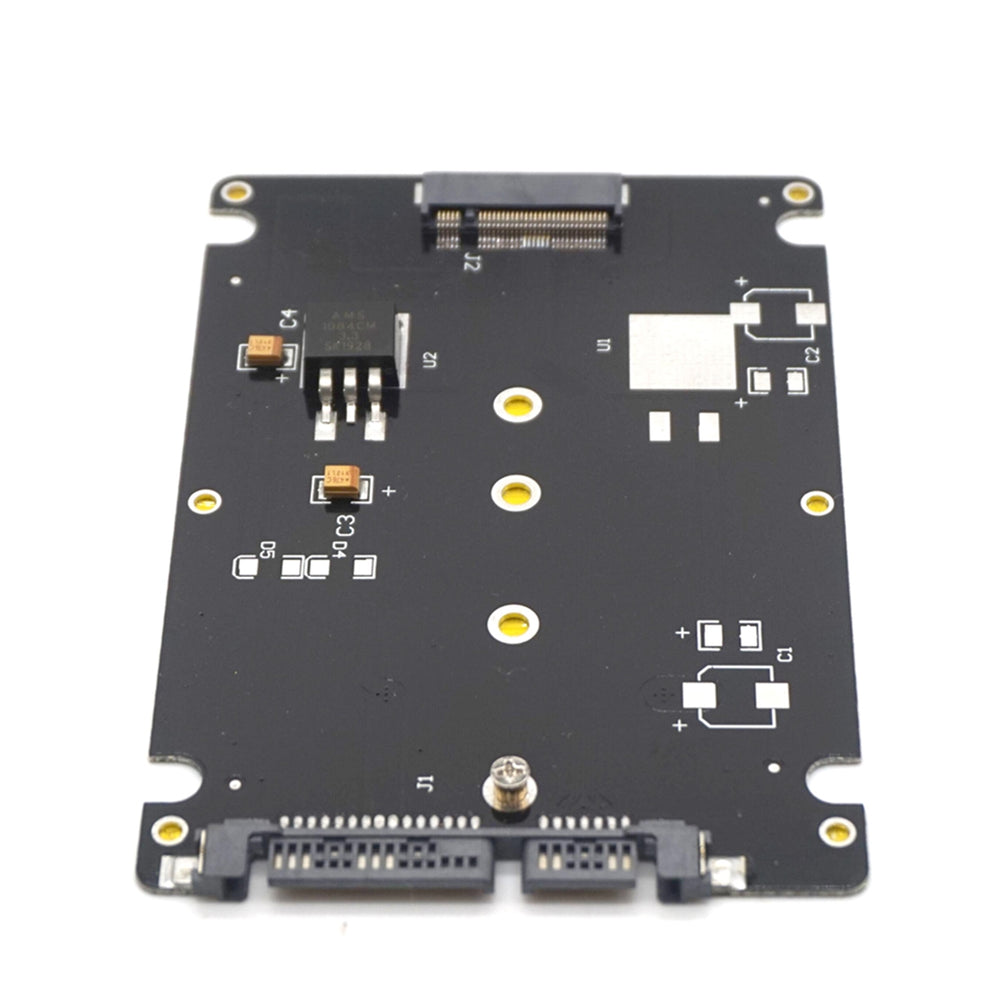

2.The design of four fixation installation location for the adapter card,the fixeg default location in 22*80mm size place,there is a copper cylinder in a bag, if is other size of the ssd,placing copper cylinder in the appropriate place.
3. Please cancel the hard disk password if your hard drive set a password in the original computer, The other computer doesn't recognize the hard disk if the password not cancel.
4. Please connect the adapter card in your computer hard disk drive interface test or with USB hard disk box to test the adapter card (Do not connect USB interface test if Your hard disk rated current is greater than 1.2A,because maximum power supply current is 500 mA of USB 2.0 port,maximum power supply current is 900 mA of USB 3.0 port),if the SSD with a test method can't identify by computer,change other test method to check the SSD,If still can't identify please try to replace a computer,this operation can be ruled out compatibility problems.
5. Mac OS and some digital camera system use disk format can't compatible with Microsoft system,new SSD if there is no partition,open the "my computer" can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a new partition on the SSD.
1 x NGFF M.2 SATA Adapter
