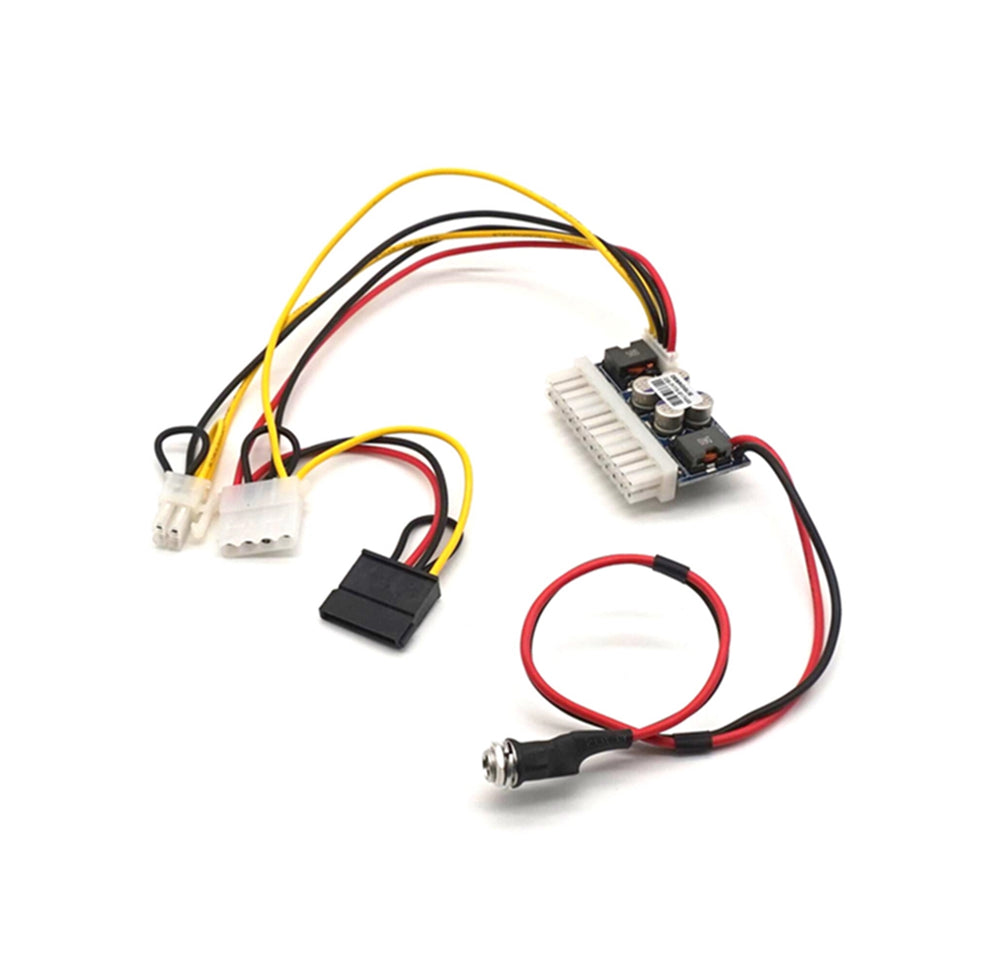

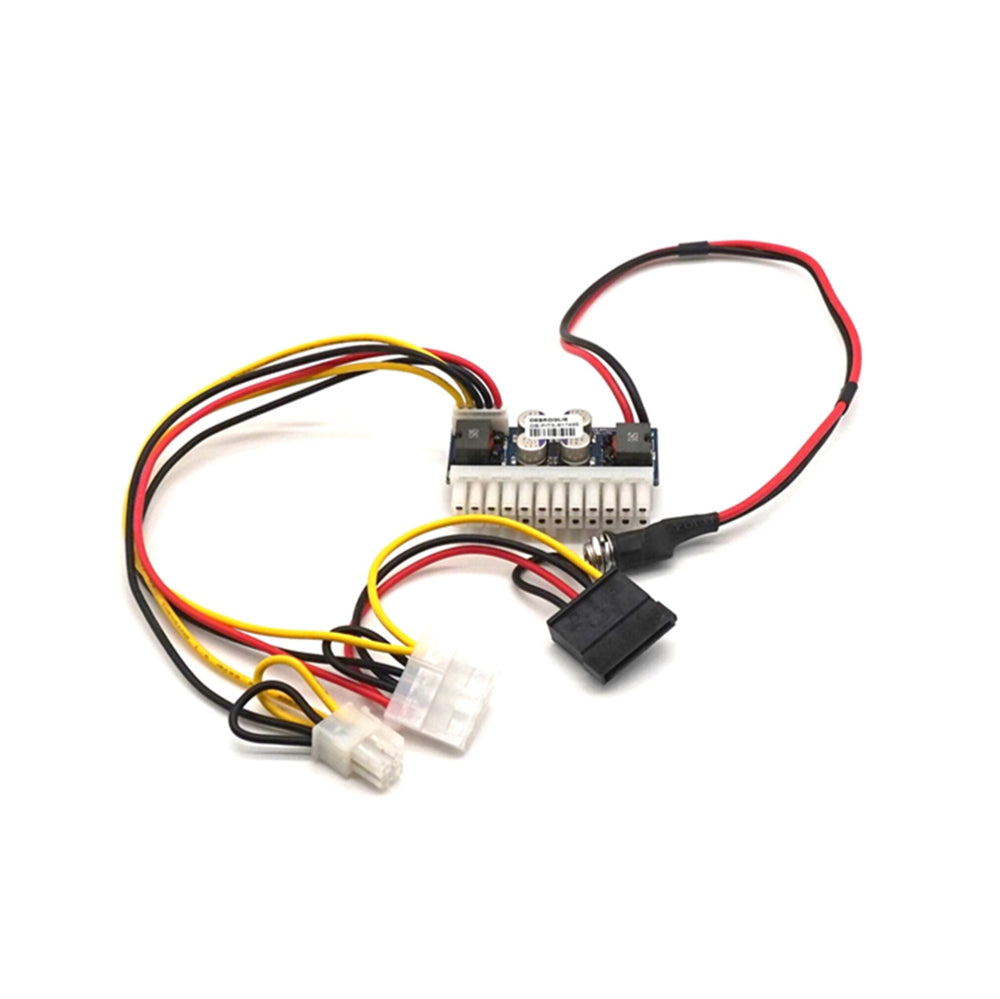

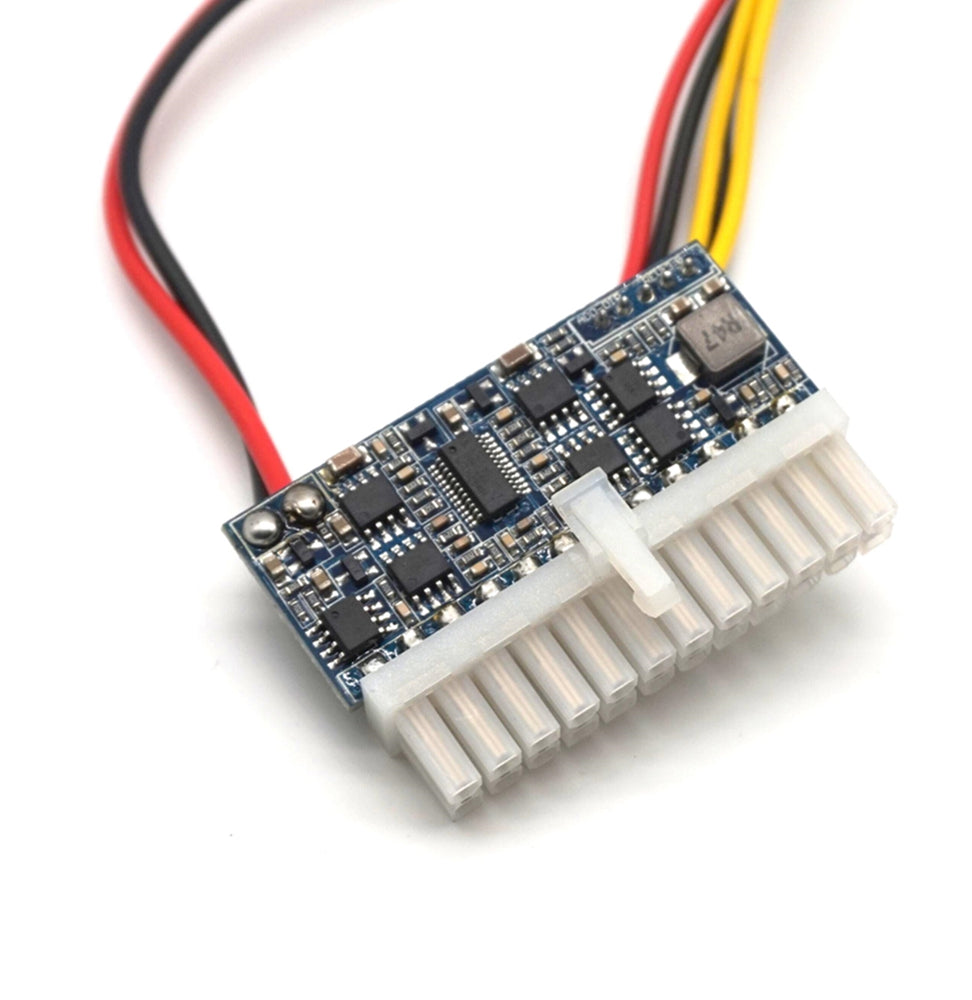

Plugadget DC 12V 160W 24-Pin ATX Switch PSU Car Auto Mini ITX Power Supply Module Cable
- Regular price
- $19.98
- Sale price
- $19.98
- Regular price
-
- Unit price
- per
Features: Material: Plastic Color: Black+Yellow+Red Input Voltage: DC 12V Output ATX: Max 160W Output Power: 84W Standard 24pin ATX Power Connector Power Efficiency: ≥ 92%...
Type: Power Supplies
Vendor: Plugadget
Sku: PGCPSC008
Availability: In Stock
Couldn't load pickup availability
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Share
Features:
Material: Plastic
Color: Black+Yellow+Red
Input Voltage: DC 12V
Output ATX: Max 160W
Output Power: 84W

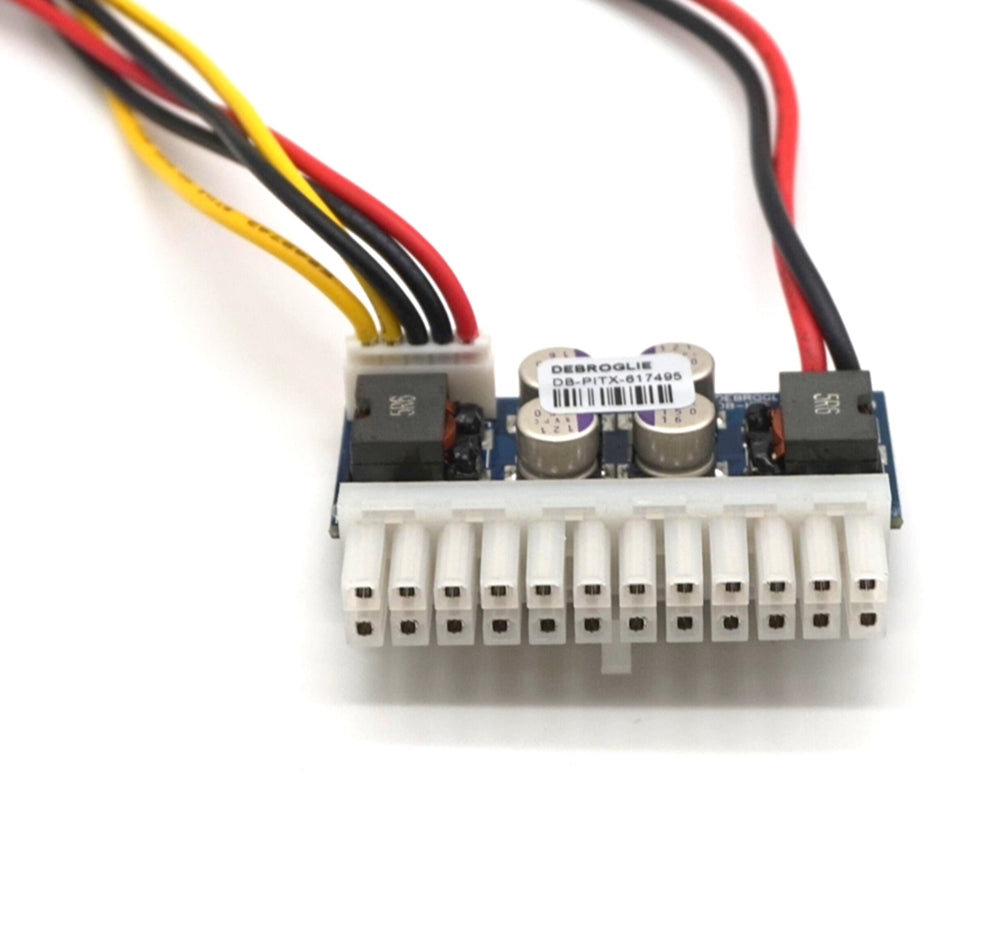

Standard 24pin ATX Power Connector
Power Efficiency: ≥ 92%
Operating temperature: 0° - 40°
Storage temperature: -20° - 80°
Size: 55×33×13mm/2.17×1.30×0.51in (Approx.)
PCB Size: 55×22mm/2.17×0.87in (Approx.)

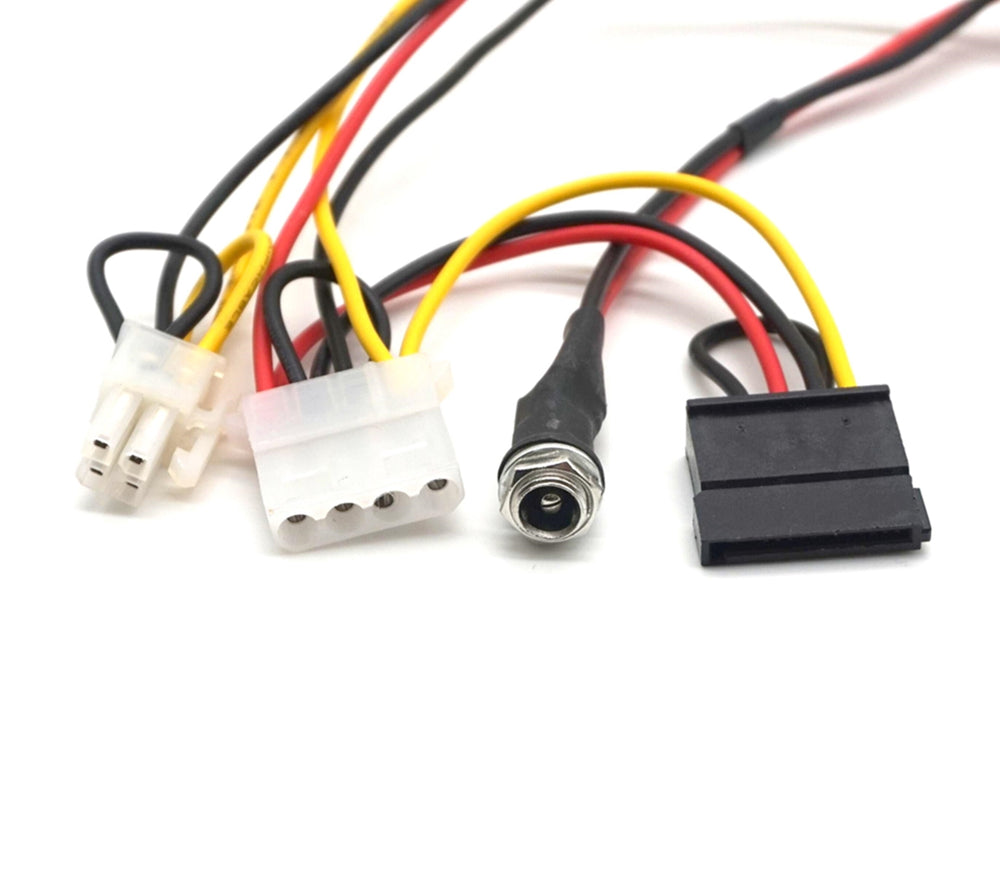

Length: (Approx.)

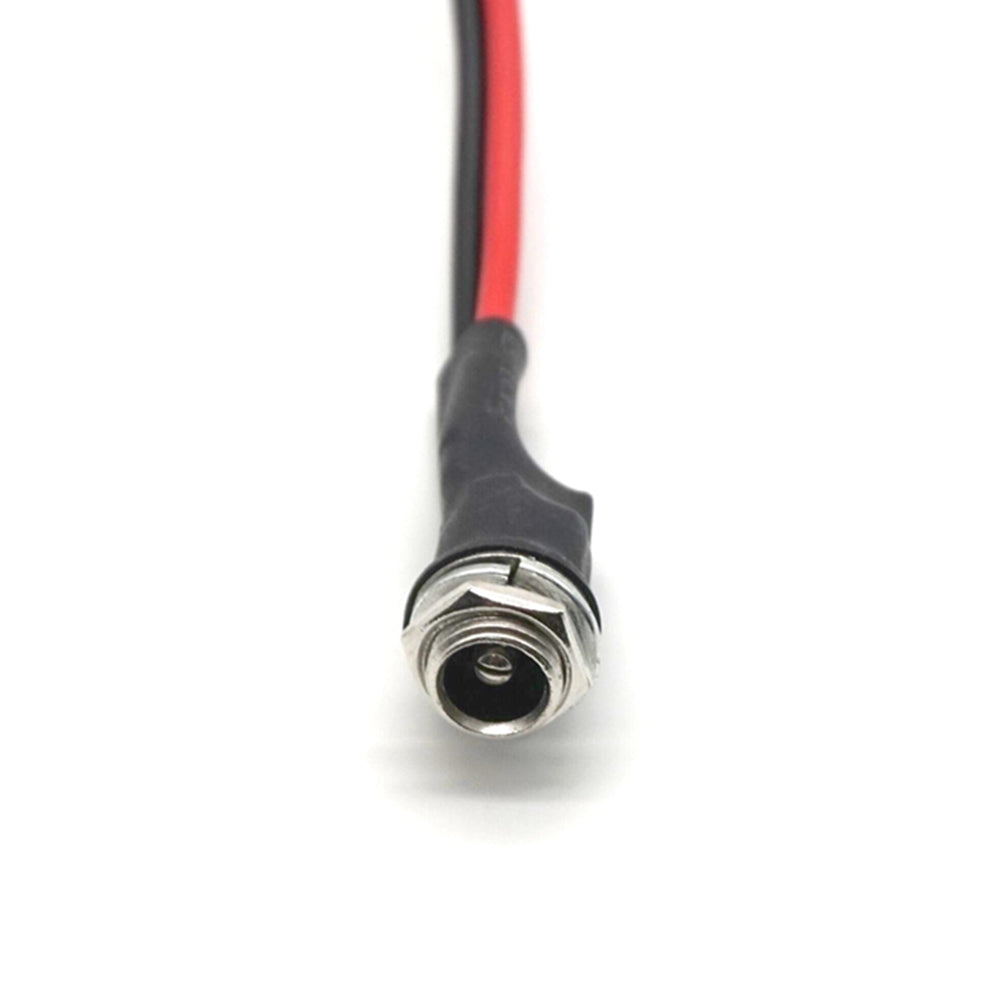

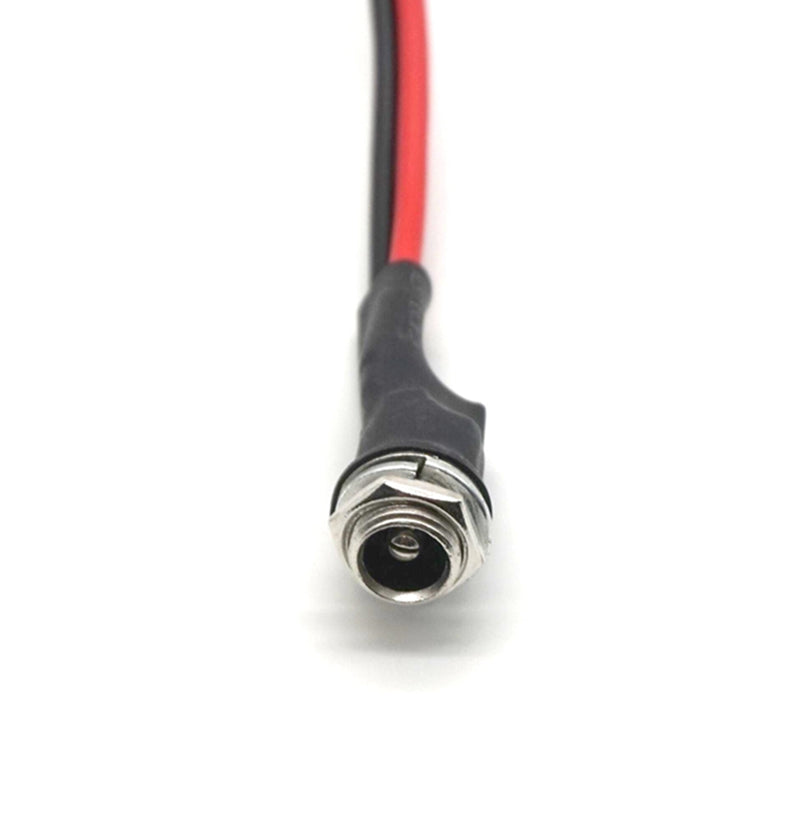

DC 5.5*2.5 (16AWG): 300mm/11.81in

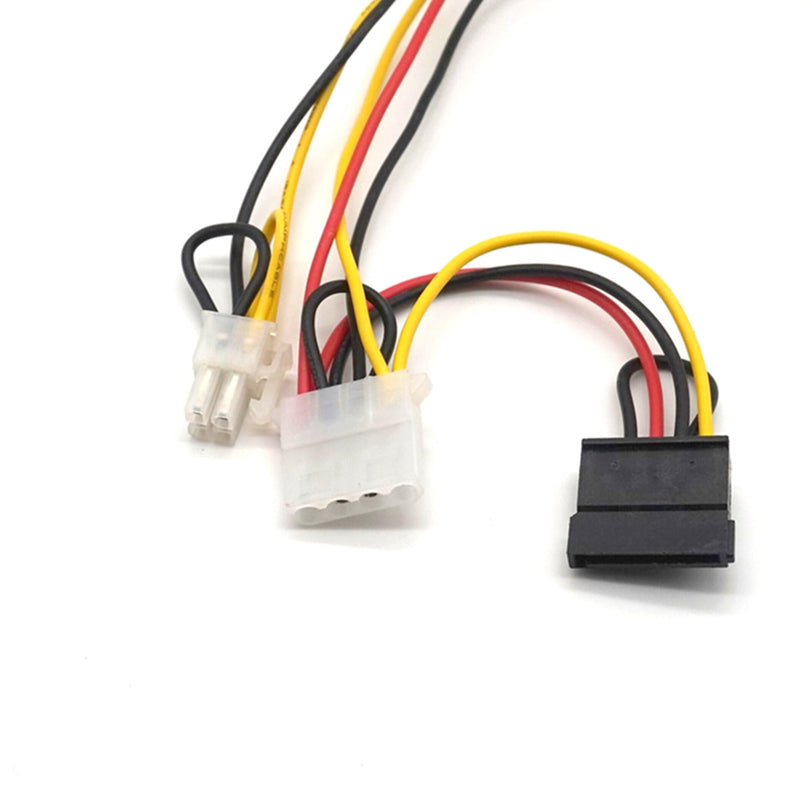

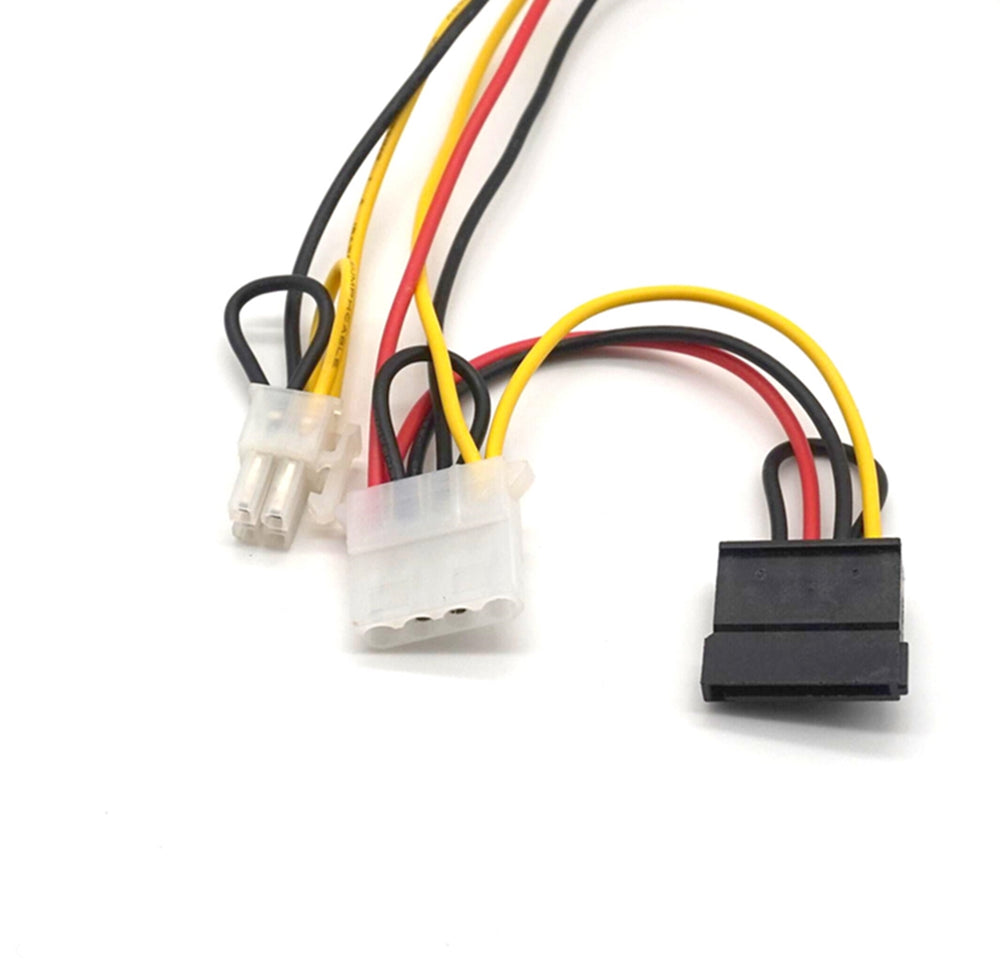

4-pin IDE female (18AWG): 240mm/9.45in
15-pin SATA (18AWG): 240mm/9.45in
CPU 4-pin (18AWG): 240mm/9.45in
4-pin IDE to 15-pin SATA (18AWG): 100mm/3.94in
Output characteristics:
Output Current +12V (11.4V～12.6V): 3A
Output Current +5V (4.75V～5.25V): 5A
Output Current +3.3V (3.14V～3.47V): 5A
Output Current +5VSB (4.75V～5.25V): 1A
Output Current -12V (-11.4V～-12.6V): 0.1A
Application: Mini computer, all-in-one computer, POS machine, digital set top box, ITX case, network server, advertisement machine, bank terminal, etc.
Package Included:
1 X DC Cable
