Plugadget Dual Band 1.73Gbps 802.11ac Wifi Wireless Network Wlan Card For Intel 9560 9560NGW NGFF Key E 2.4G/5Ghz Wi-fi Bluetooth 5.0

:In stock

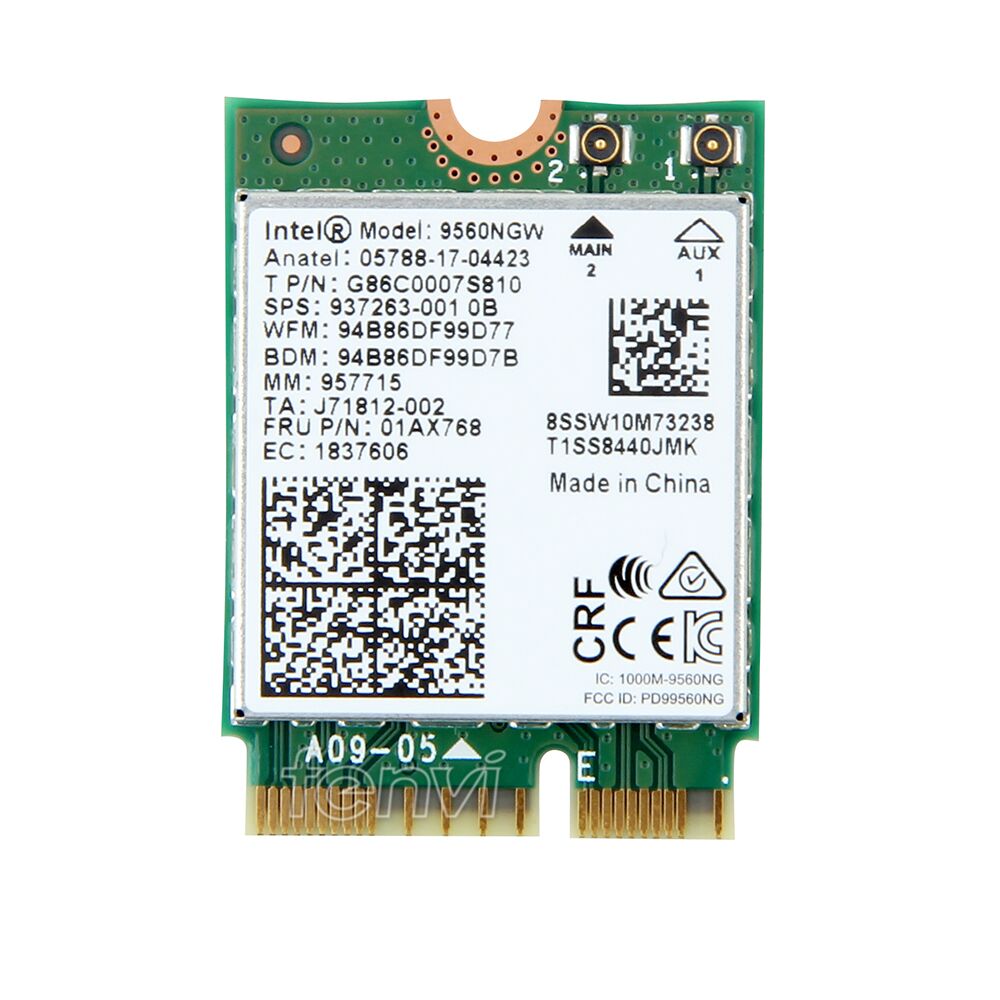

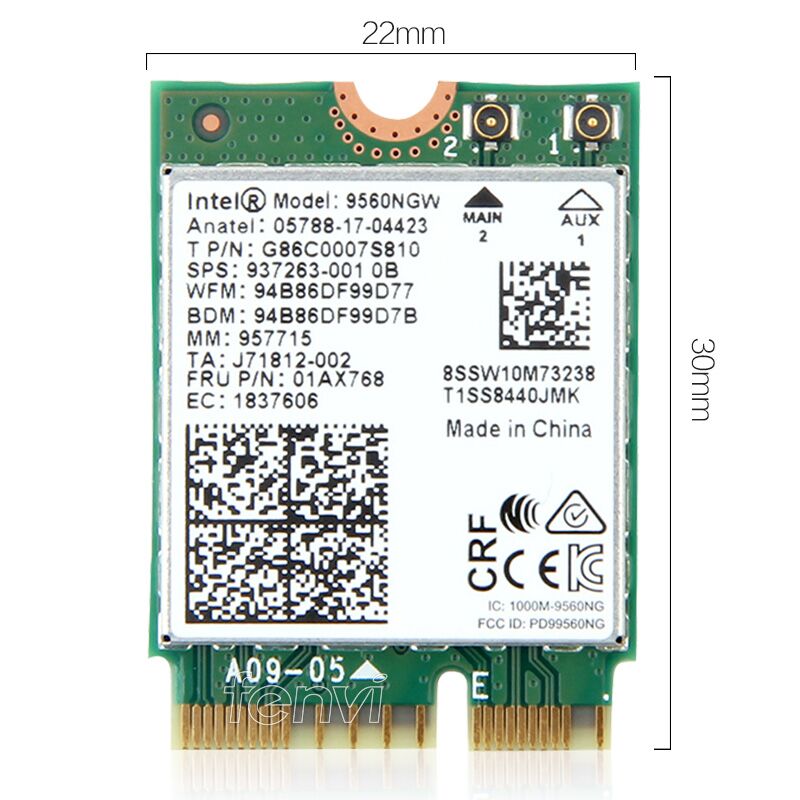

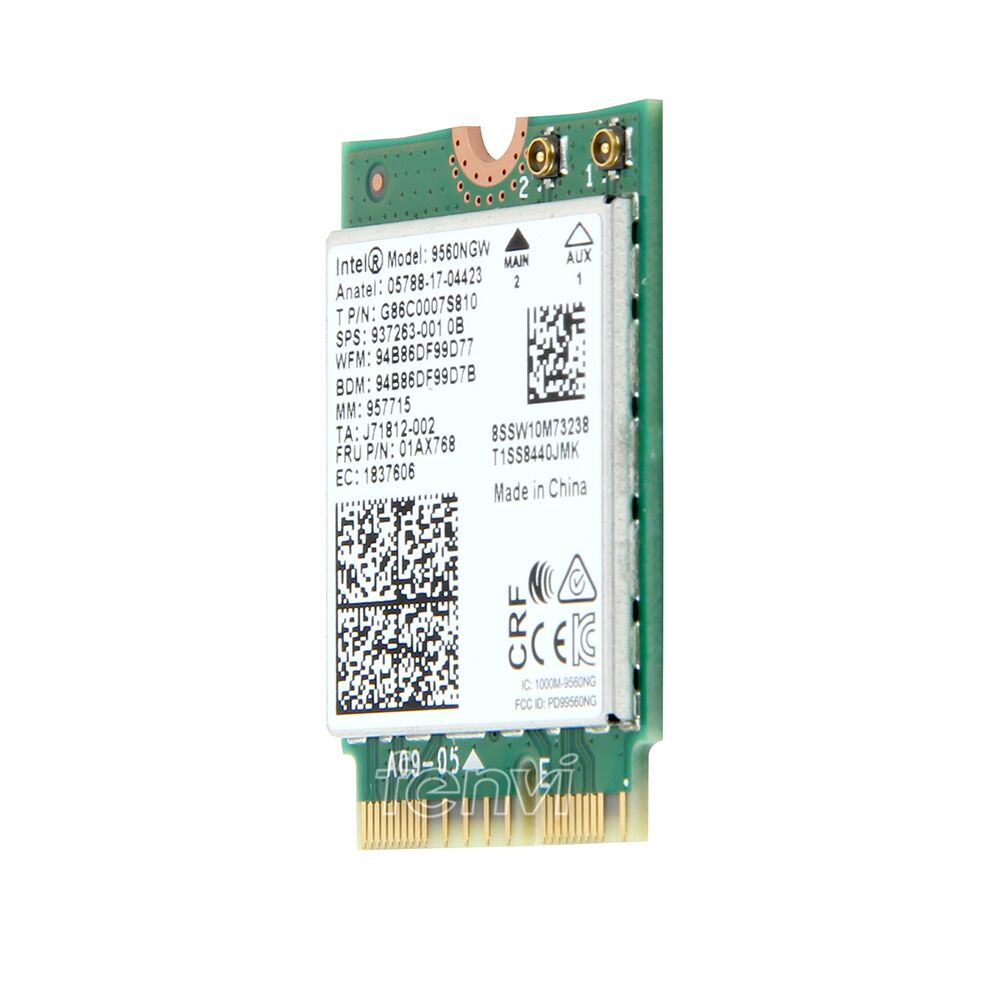

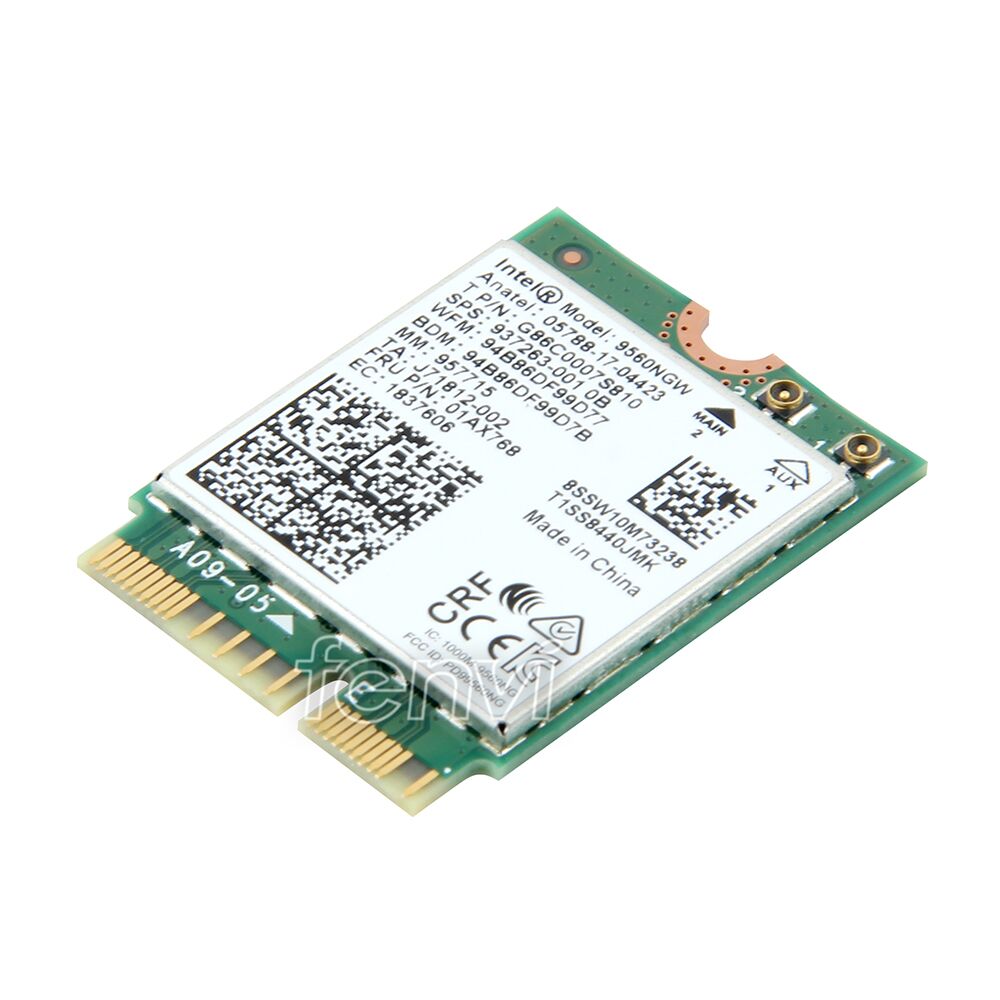

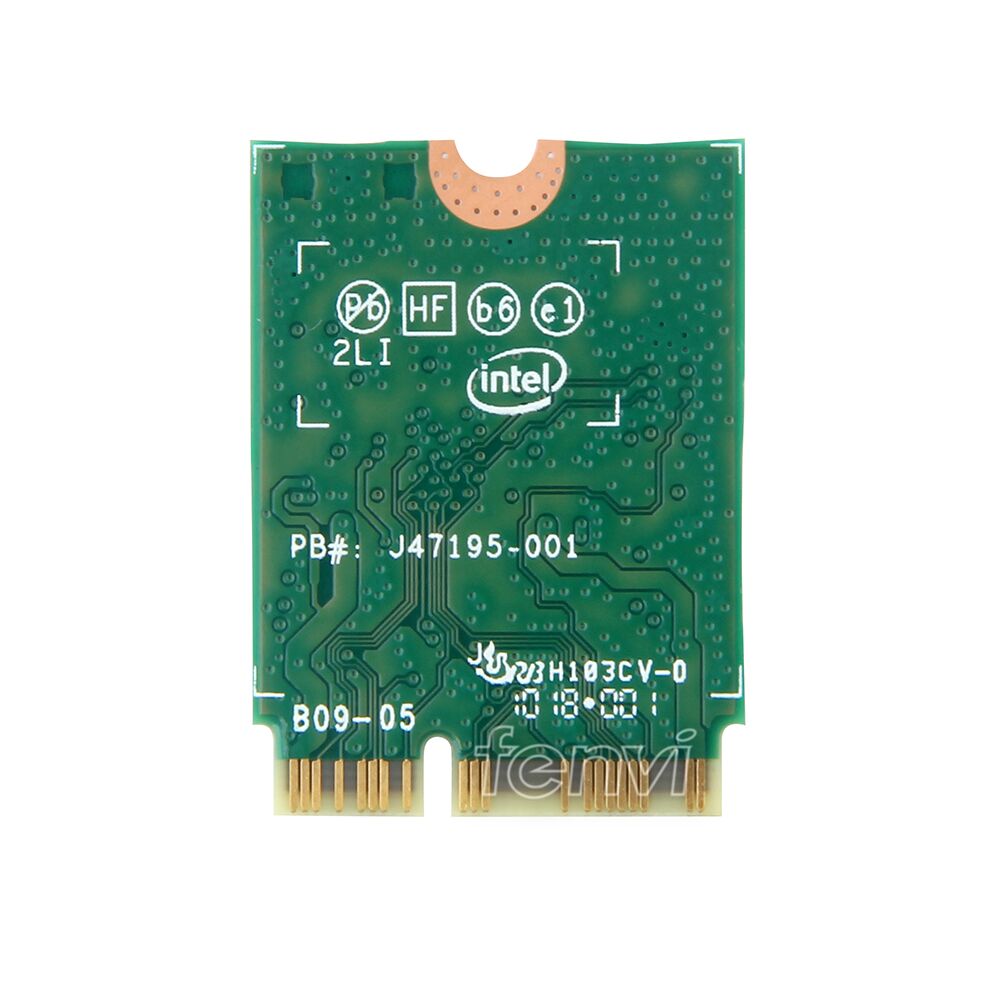

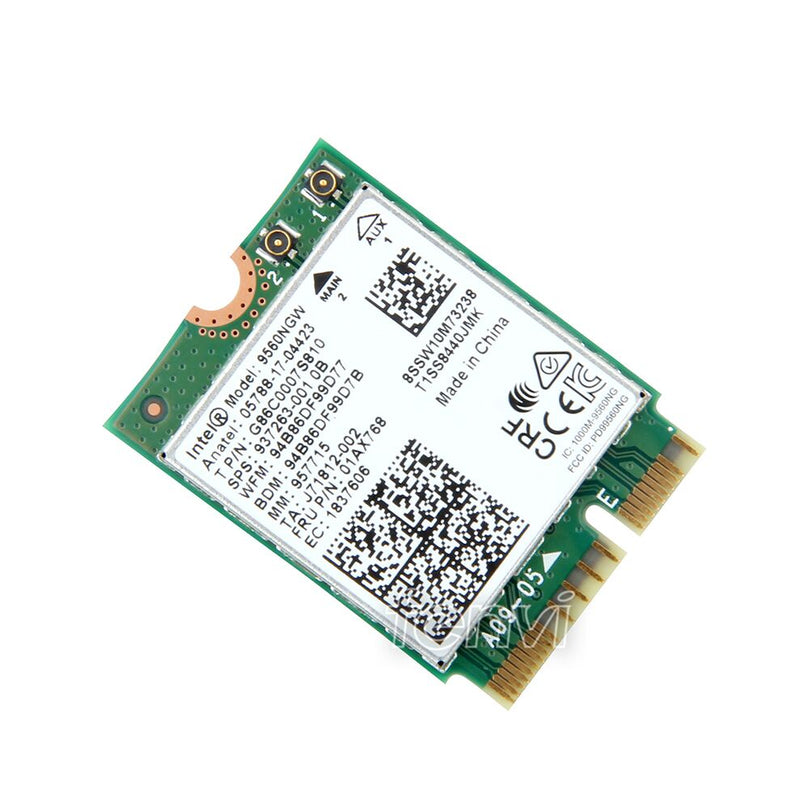

Intel Wireless-AC 9560

The Intel® Wireless-AC 9560 adapter is a CRF2 (companion RF module) supporting the 1st generation integrated Intel wireless 802.11ac solution comprised of CNVi3 and a CRF. The solution provides Bluetooth+ 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels delivering up to 1.73Gbps4 and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience at home, work, or on the go.


Chipest Brand:Intel

Model: 9560NGW, M2:CNVio (Before you order the module,pls check your device support)

Dual band:2.4Ghz / 5Ghz(160Mhz)

Speed up to 1730Mbps (The router must on 160Mhz)

Bluetooth 5.0

Support Win10

Interface:NGFF/M.2 (Key E)

Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,

(Not support Windows 7/8/8.1 )

It currently only support certain processors:

8th Gen Intel® Core™ processors

Intel® Pentium® Silver processors based on Gemini Lake

Celeron® processors based on Gemini Lake

Note: Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.

Connector Interface: for M2:CNVi Only

Not for NGFF key A/E

System requirements:

8Th Gen 8400K later cpu And intel 300 series Chipset mainboards

Compatible With:

It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc(Do not include lenovo and HP,if it can use after rewrite the whitelist ).

Not support IBM/Thinkpad/lenovo/hp laptop.

Package Included:

1 x Intel 9560NGW NGFF Wireless card
