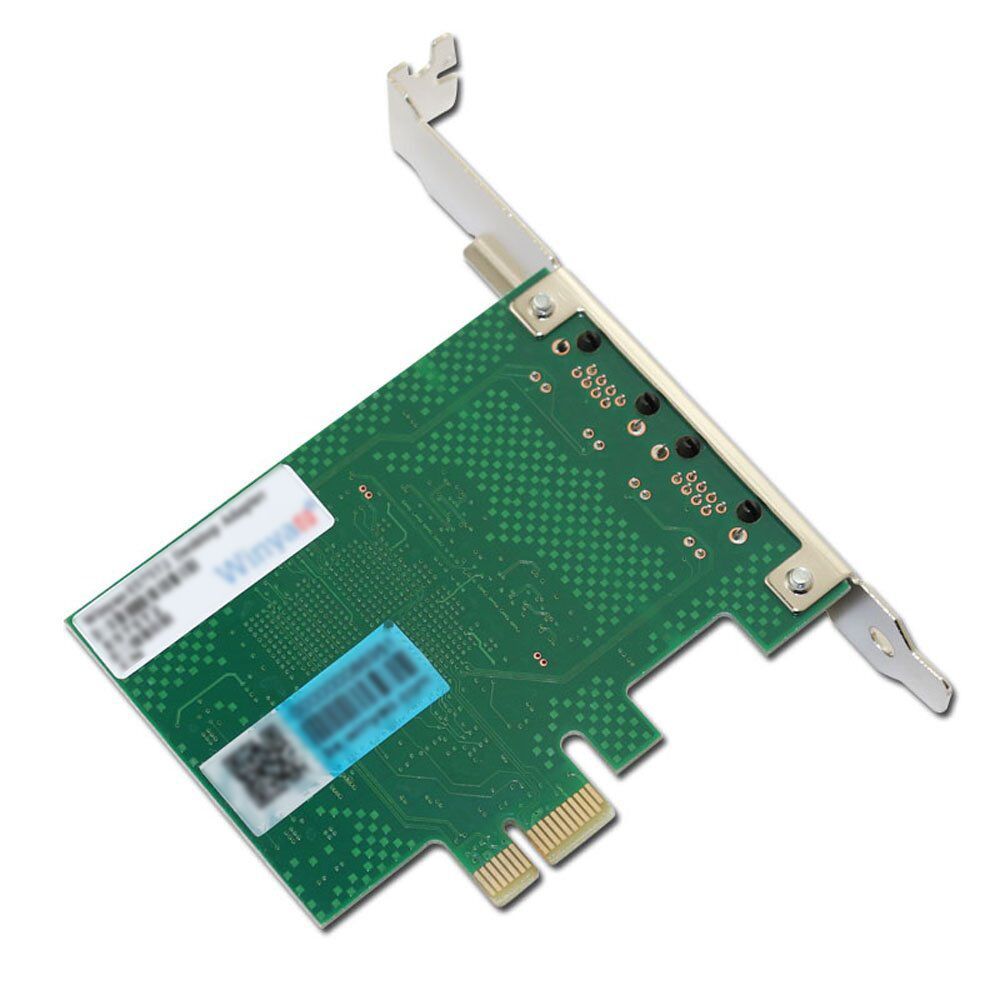

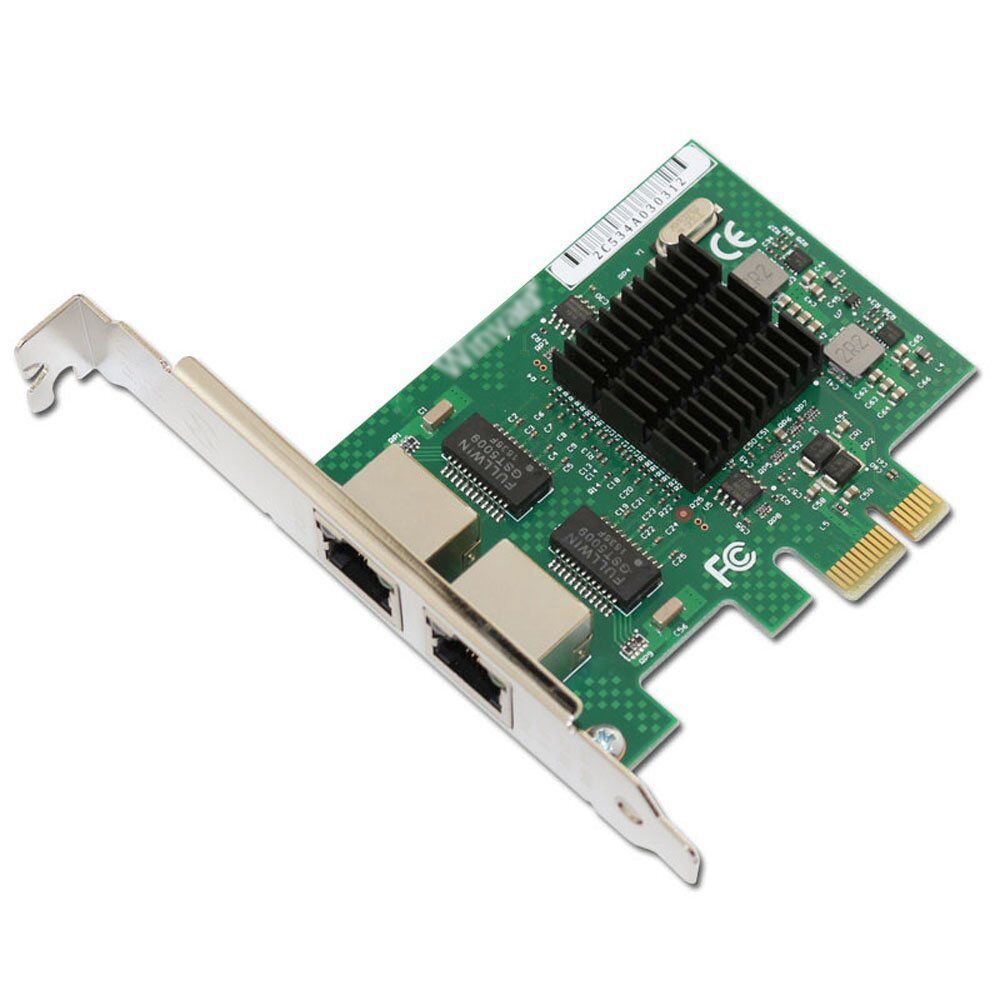

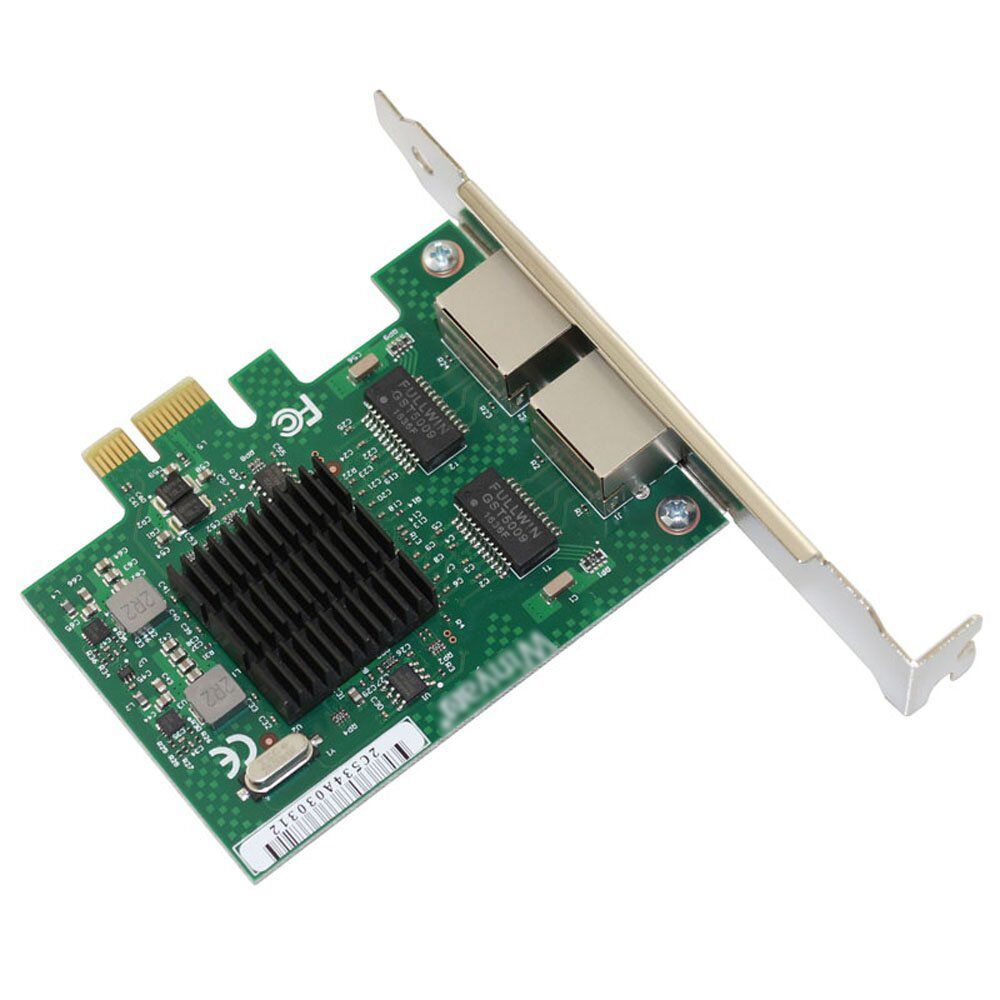

Plugadget E575T2 Dual-port PCI-E X1 Gigabit Ethernet Network Card 10/100/1000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET
Support PCI Express Base Specification 2.1 (5 GTs).
High performance, reliability, and low power use in Intel 82575 Dual integrated MAC + PHY and SERDES chip Controllers.
Ultra deep, packet buffer per channel lowers CPU utilization.
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
Server class reliability, availability and performance features:
Link Aggregation and Load Balancing.
Priority queuing – 802.1p layer 2 priority encoding.
Virtual LANs –802.1q VLAN tagging.
Jumbo Frame (9.5KB).
802.x flow control.
Multicast/ broadcast Packet replication.
Supports Vital Product Data (VPD).
LEDs indicators for link/Activity/Speed status.
Chipset: intel 82575.
Slot Type: PCI-E X1.
Interface: RJ45 * 2.
Transmission Rate: 10/100/1000Mbps.
Boot Rom: Yes.
Management: IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN.
Supports System DOS , Windows , Linux , FREEBSD, NWSERVER.

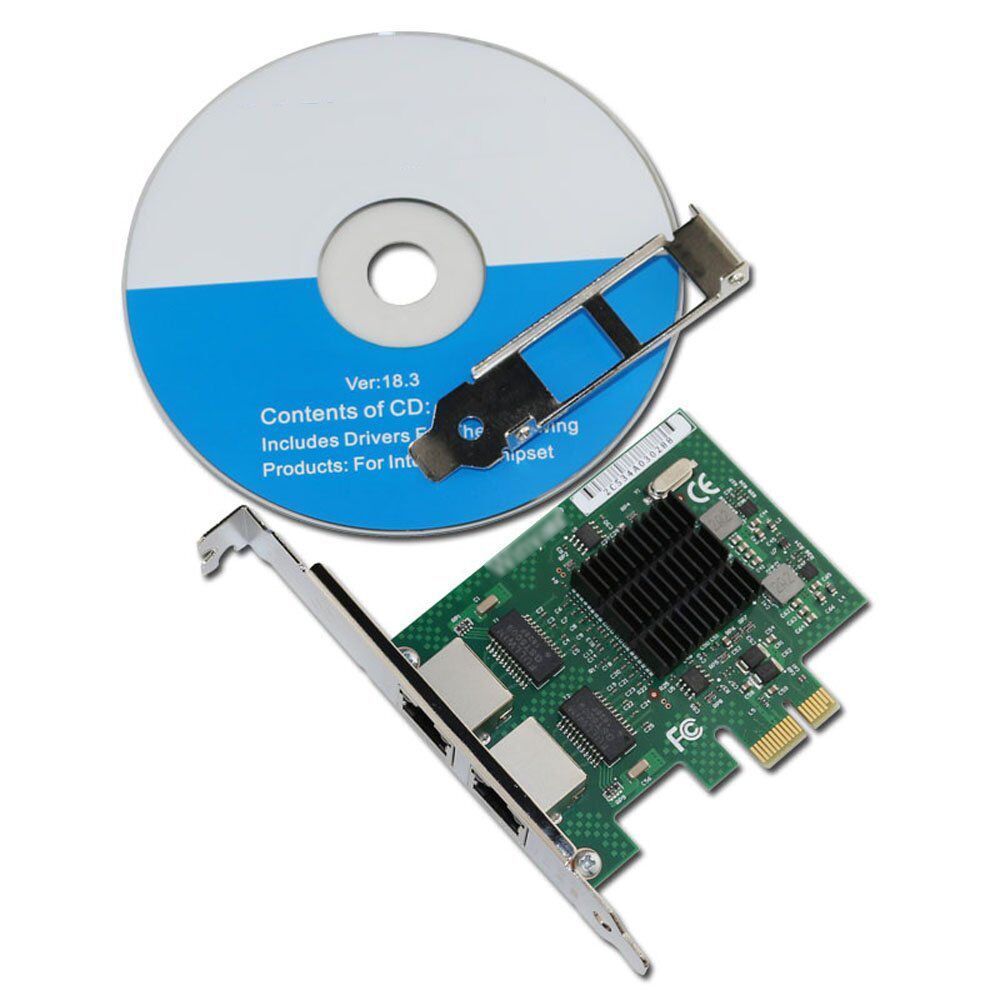

1 x Network Card
