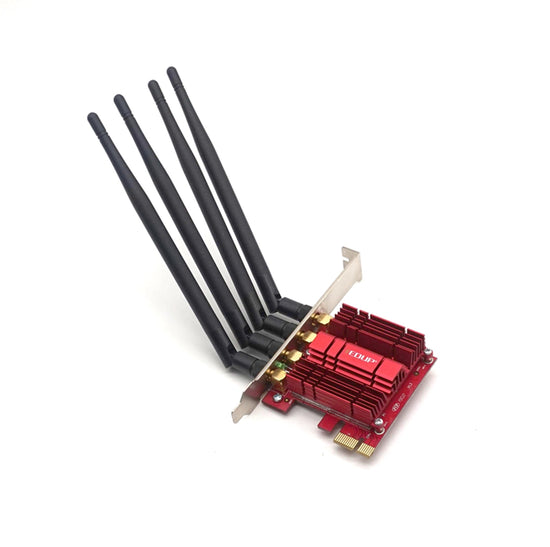

Plugadget EDUP 2.4/5Ghz Dual Band 1900Mbps PCI Express Wireless WiFi Adapter 802.11AC PCI-E Network Card 4*5dBi Antennas
:In stock
Share:
Wireless transmission rates can reach up to 1900Mbps. Using the EP-9609 Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode.
Features:
1. Compliant with IEEE 802.11ac, IEEE 802.11n / a / b / g standard
2. Support PCI-E 1.1 X1 bus
3. 4G / 5G dual-band optional, 5GHz band rate up to 1300Mbps, 2.4GHz band rate up to 600Mbps
4. Support for Cisco CCX
5. Support multiple BSSIDs
Specification:
Model: EP-9609
Chipset:RTL8814AE
Standards: IEEE802.11ac,IEEE802.11n,IEEE802.11b,IEEE802.11g,IEEE802.11a
PCI Bus :PCI EXPRESS X1
Sensitivity @PER:5G 11ac
VHT80M MCS9:-55dBm @10% PER
HT40M MCS7: -65dBm @10% PER
HT20M MCS7: -68dBm @10% PER
2.4G 11N
HT40M MCS7: -65dBm @10% PER
HT20M MCS7: -68dBm @10% PER
OFDM 54M:-70dBm@10% PER
11b 11M:-81dBm@8% PER
Transmit Power: 20dBm(Max.)
Antenna :4*5dBi dual band removable omnidirectional antennas
Transmission Rate :
2.4G up to 600Mbps
5G up to 1300Mbps
Operating System: Microsoft Windows 7 32/64, Windows 10 32/64
LED :Link/Act
Environment :Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing

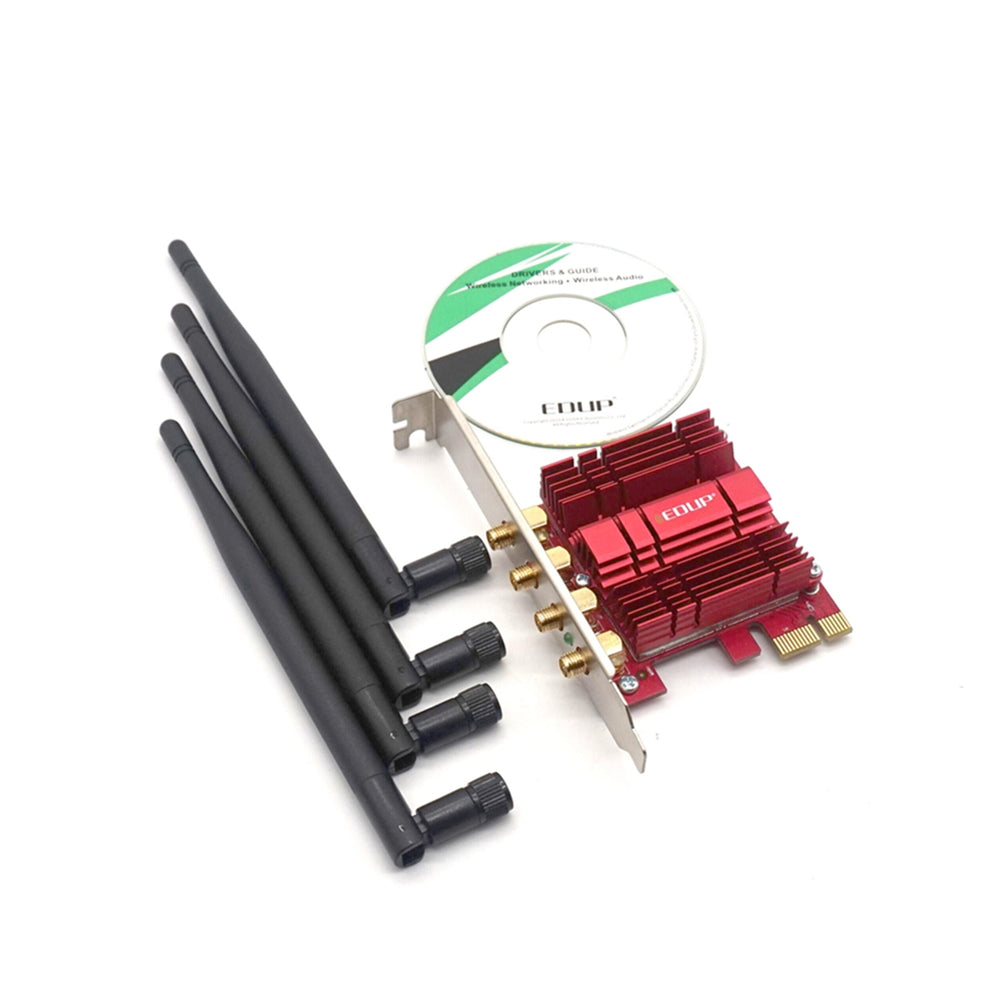

Package included:
1*PCI Express adapter
1*CD Driver
4*5dBi antenna
1*user manual
