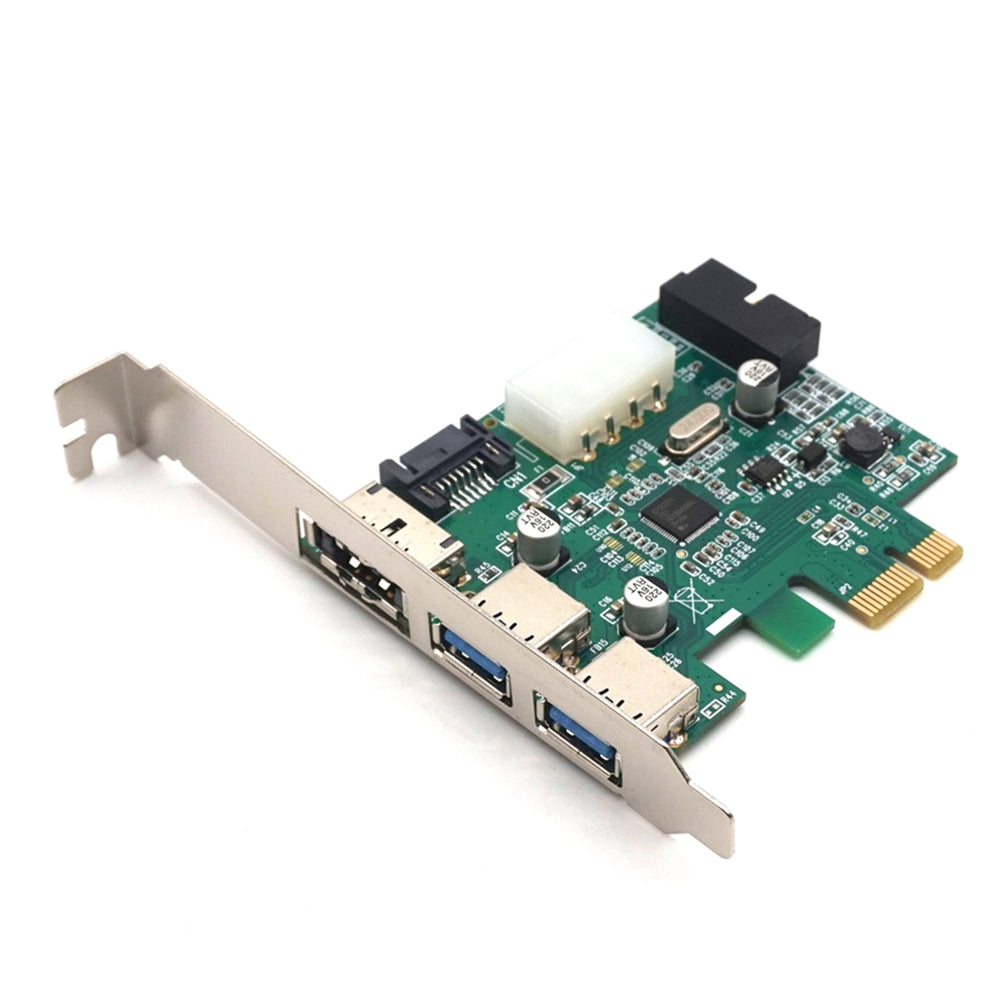

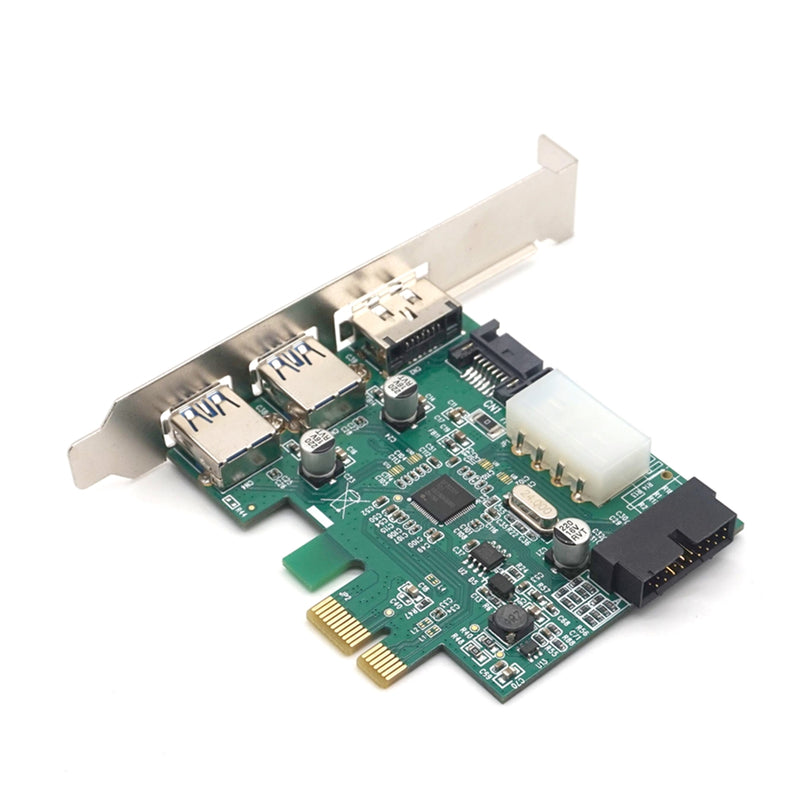

Plugadget Expansion Card PCIE 2P PCI-EXPRESS External 2 Ports USB3.0 POWER ESATA + Built-in 19PIN USB3.0 Adapter card

:In stock



Compatible Port/Slot : PCI Express x1

Interface Card Type : USB Cards

Model : Pci-e to 2 ports USB3.0 +20pin+SATA+ESATA

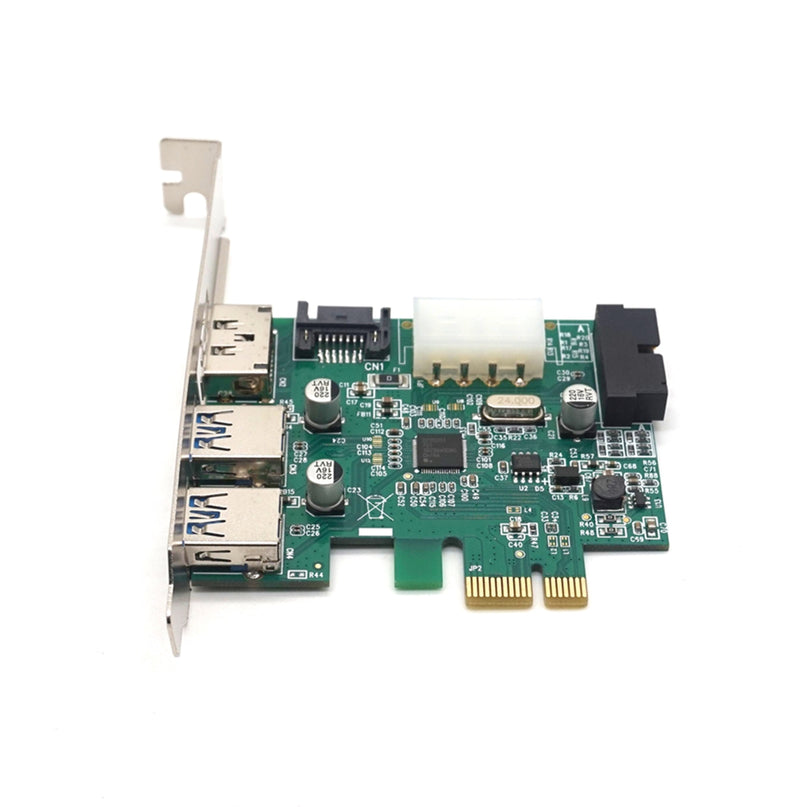

No additional power required for 2.5" HDD/SSD via Power eSATA port.

A super fast and high-capacity data transfer solution via USB 3.0 port.

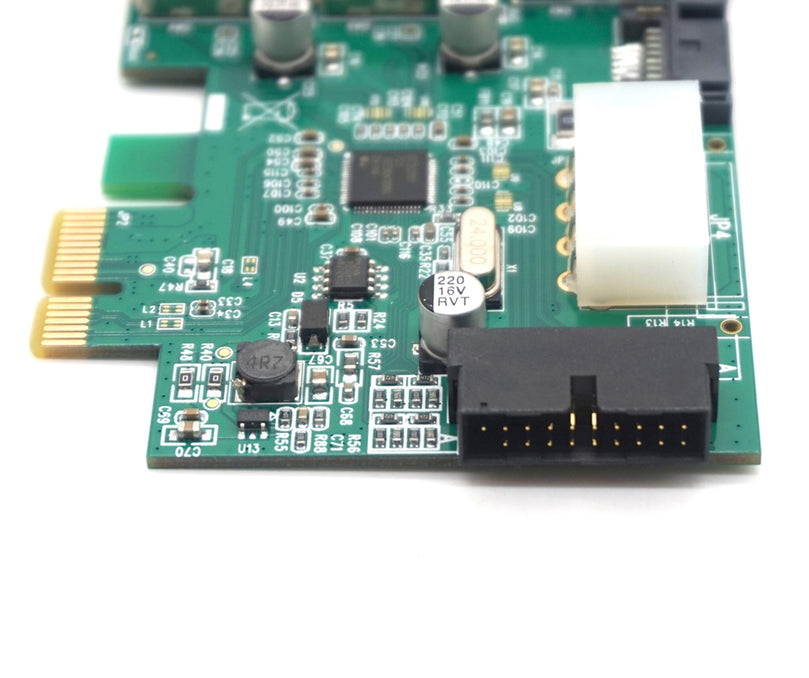

Motherboard 20P connector available for expanding 2 more USB 3.0 ports to PC case front panel.

Stable and reliable NEC Chipset Renesas D720201.

Compliant with USB 3.0 specification.

Date transfer rate up to 5.0Gbps for USB port.

Compliant with Serial ATA II specification.

Data transfer rate up to 3.0Gbps for eSATA port.

Compliant with Single-Lane (x1) PCI-Express specification revision 1.0.

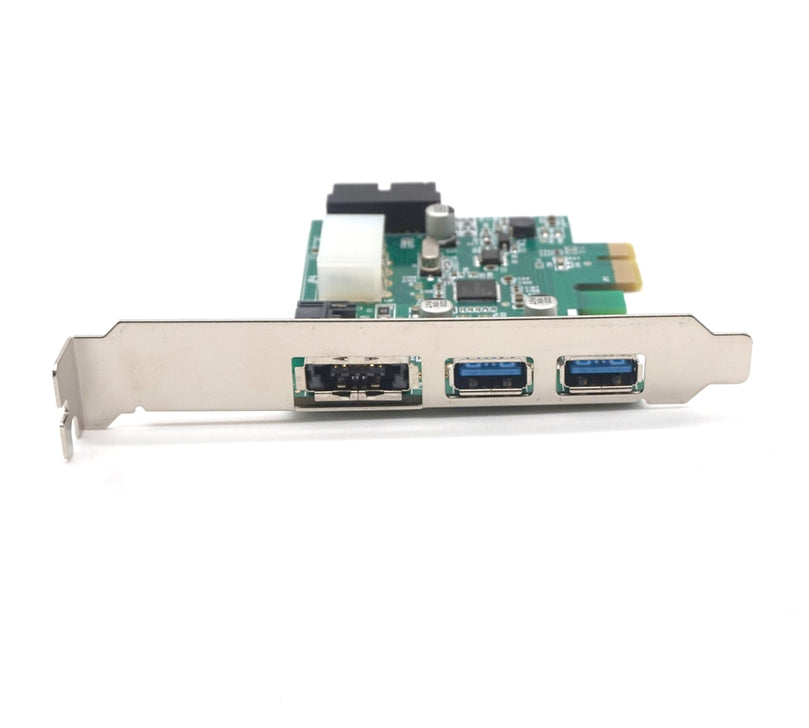

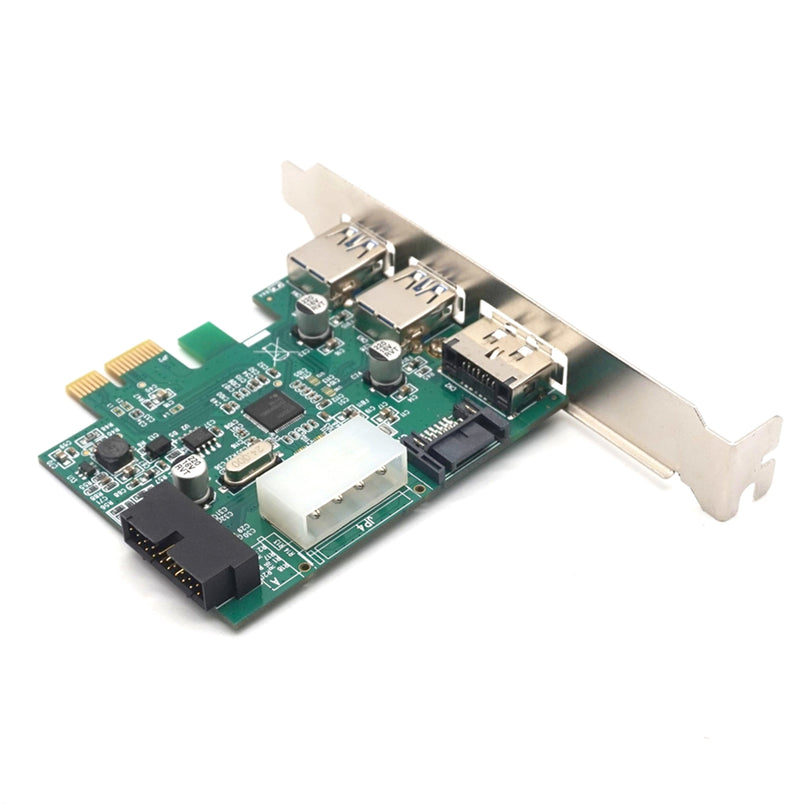

2 USB 3.0 type-A & 1 Power eSATA connectors available.

One motherboard 20P male connector available for 2 more USB 3.0 ports.

Plug & play and hot swapping capability.

Bus-powered mode and no external power required for most of peripherals.

4 pin power connector available for some high current consumption peripherals.

Supports Windows XP / Vista / 7 / 8 / Server 2008.

Please note that the internal 7 pin SATA connector need to be connected to motherboard when using the external Power eSATA port.

Please note that if the motherboard SATA port connected supports SATA III, the Power eSATA supports SATA III specification.

Please note that for 3.5" HDD/SSD there is additional power required. (4 pin Molex power connector on card can be used.)

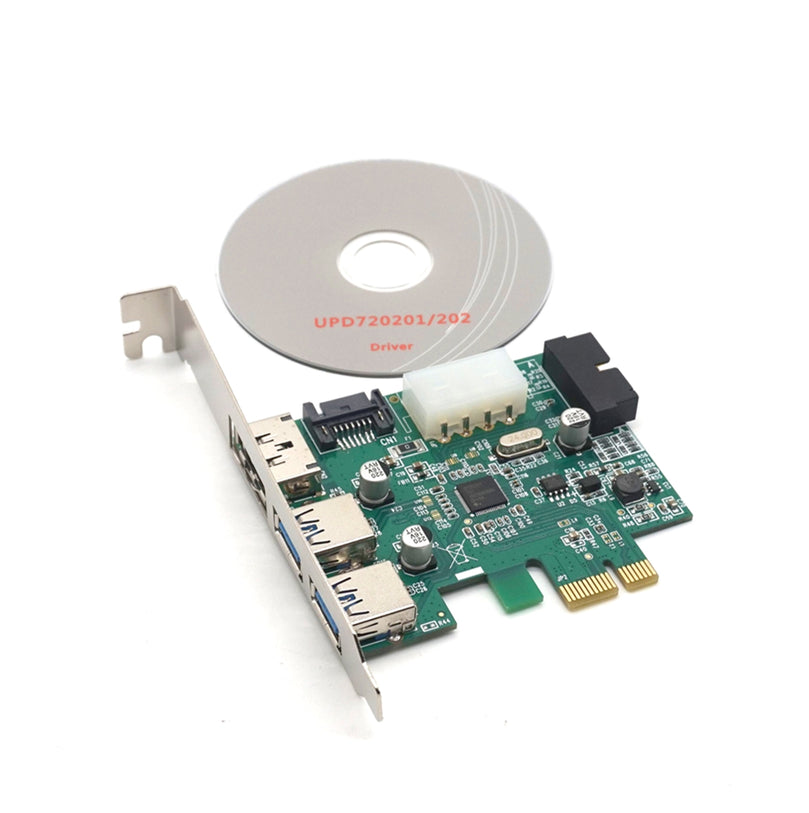

Package Included:

1 x PCI-E Card

1 x Driver CD
