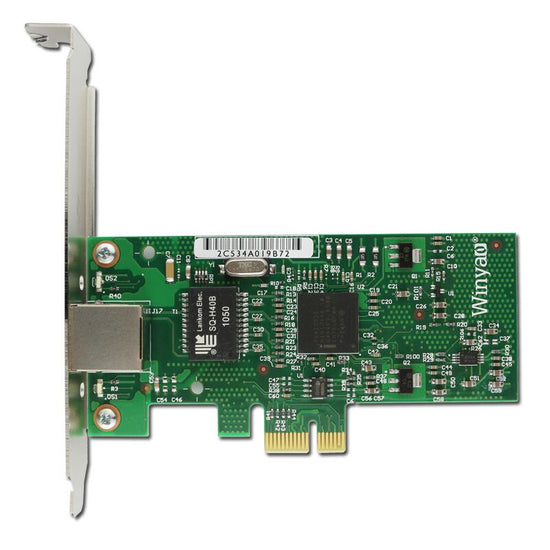

Plugadget Gigabit Ethernet Network Adapter PCI-E X1 NIC Card 1000M Chipset 82573

:In stock



About Description:

Ports: RJ45 * 1

Bus Type: PCI-E x1

Transmission Rate: 10/100/1000Mbps

Chipset: for 82573

LEDs indicators: 2 x Led for link/Activity/Speed status

Management Features: VLAN filtering, WOL, Less than ESXI 5.0 version.

Copper Gigabit Ethernet 1000Base-T:

Independently copper Gigabit Ethernet channels support Single Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)

Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation

Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex

RJ-45 female connectors

Common Key Features:

Host Interface standard support PCI-Express Base Specification Revision 1.1.

High performance, reliability, and low power use in 82573 integrated MAC + PHY and SERDES chip Controllers

Ultra deep, packet buffer per channel lowers CPU utilization

Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation

Server class reliability, availability and performance features:

Link Aggregation and Load Balancing

Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)

Switch and NIC Independent


Priority queuing - 802.1p layer 2 priority encoding

Virtual LANs -802.1q VLAN tagging

Jumbo Frame (9.5KB)

802.x flow control

Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)

Network standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad

Support system:

Microsoft Windows* (32 & 64 bit), SCO UnixWare* 7.x, Open Unix* 8.0, Novell ODI*, Novell Netware*,

SUSE Linux Enterprise Server* 9.0, Red Hat Enterprise Linux* 4.0, Linux*, FreeBSD*, Sun Solaris*,

Microsoft DOS*, VMWare ESX*

Package Included:

1 x 1-port PCIe Gigabit Ethernet Network Card

1 x Low Bracket

1 x Driver CD
