Plugadget Internal Mini SAS SFF-8087 to Mini SAS High Density HD SFF-8643 Data Server Hard Disk Raid Cable 50cm

:In stock

$13.98
Size

Features:

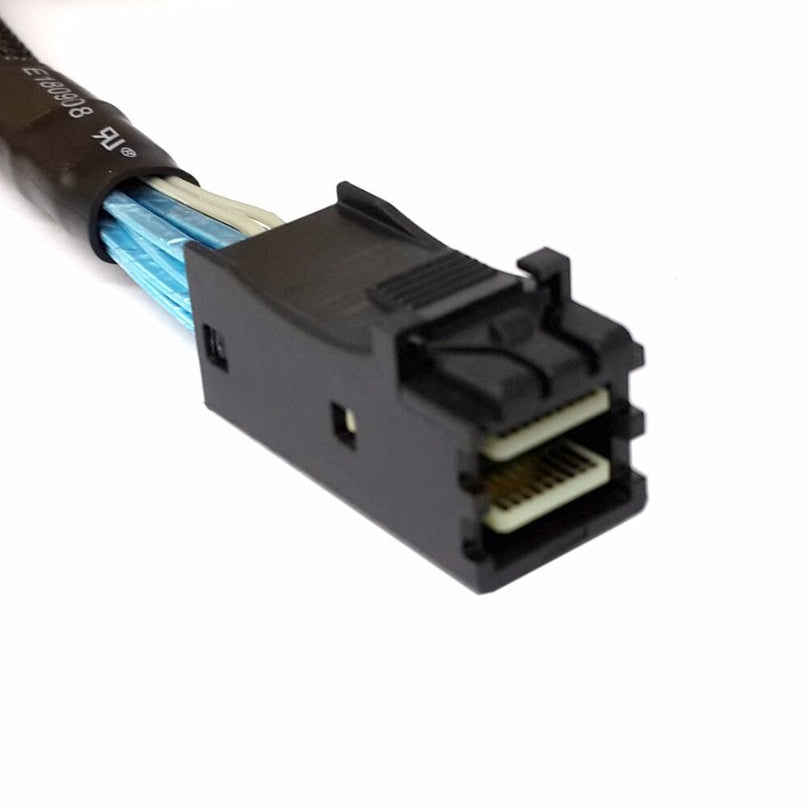

HD Mini-SAS cable configurations

It is an internal Mini Serial Attached SCSI HD x4 (SFF-8643) to Mini Serial Attached SCSI x4 (SFF-8087) cable.

It is used for connecting a SAS/SATA adapter to a SAS/SATA backplane.

The High Density (HD) system referenced as HD Mini-SAS (SFF-8643) in the SAS 2.1 standard, meets the 6Gb/s SAS specification.

These new HD Connectors will be used on the SAS 3.0 specification when it is released.

Cable material may change but the connectors will be the next generation of SAS to run at 12Gb/s.

Internal HD Mini-SAS Copper Cables

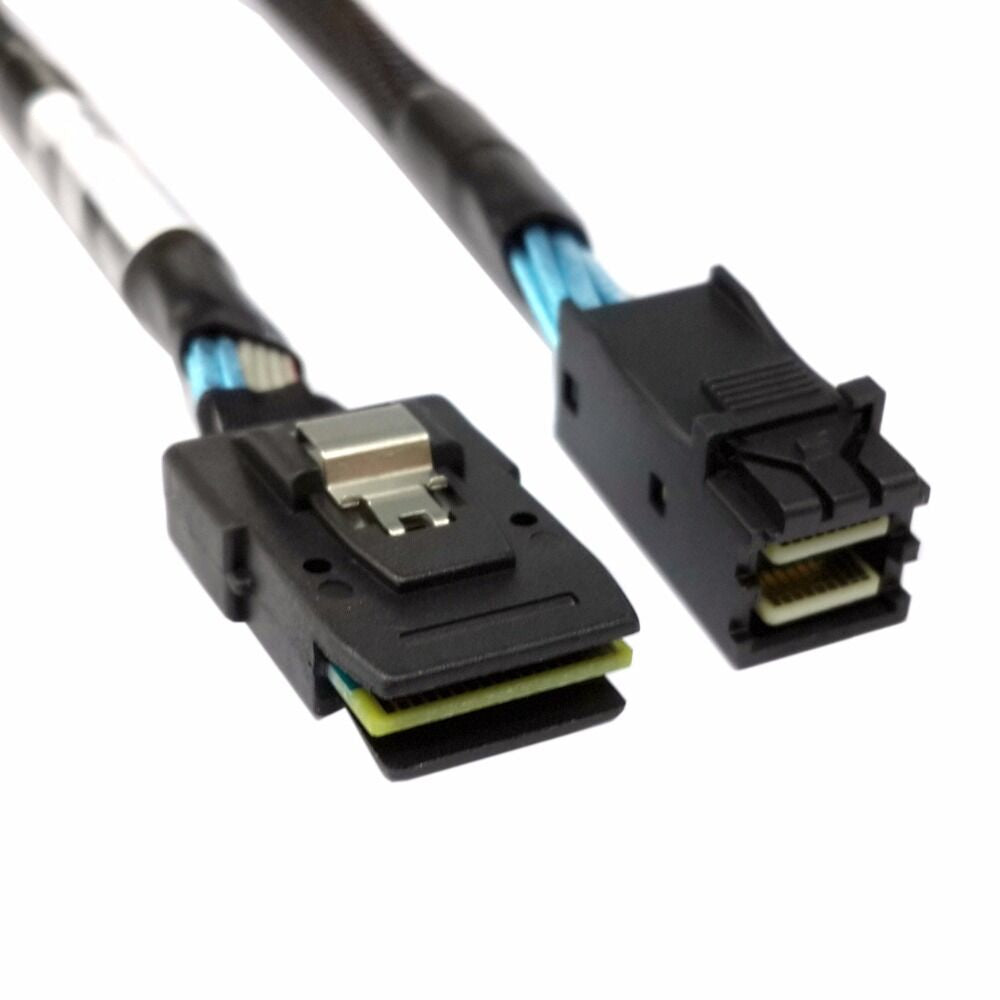

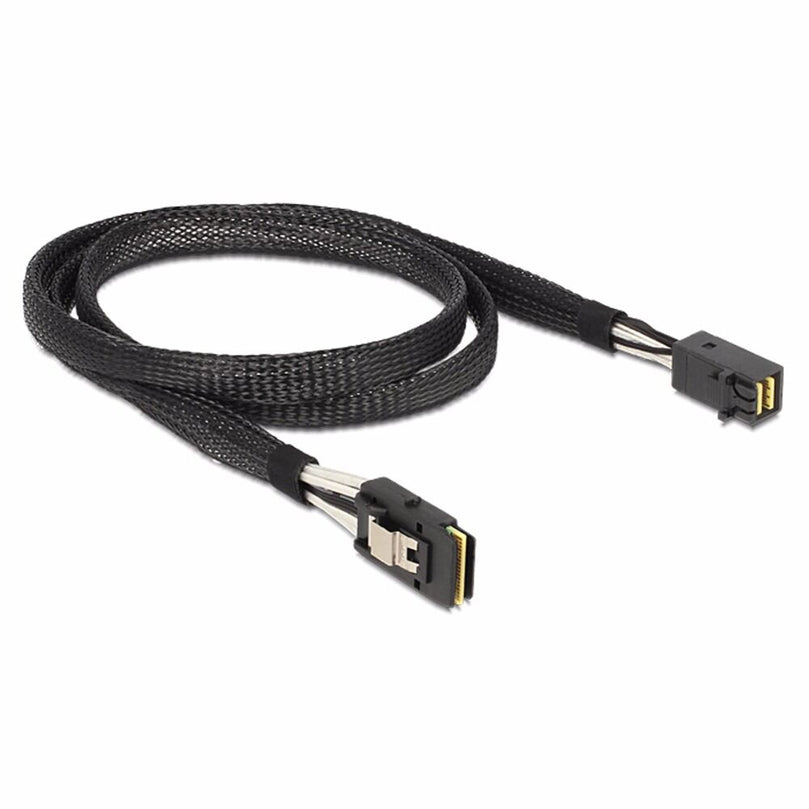

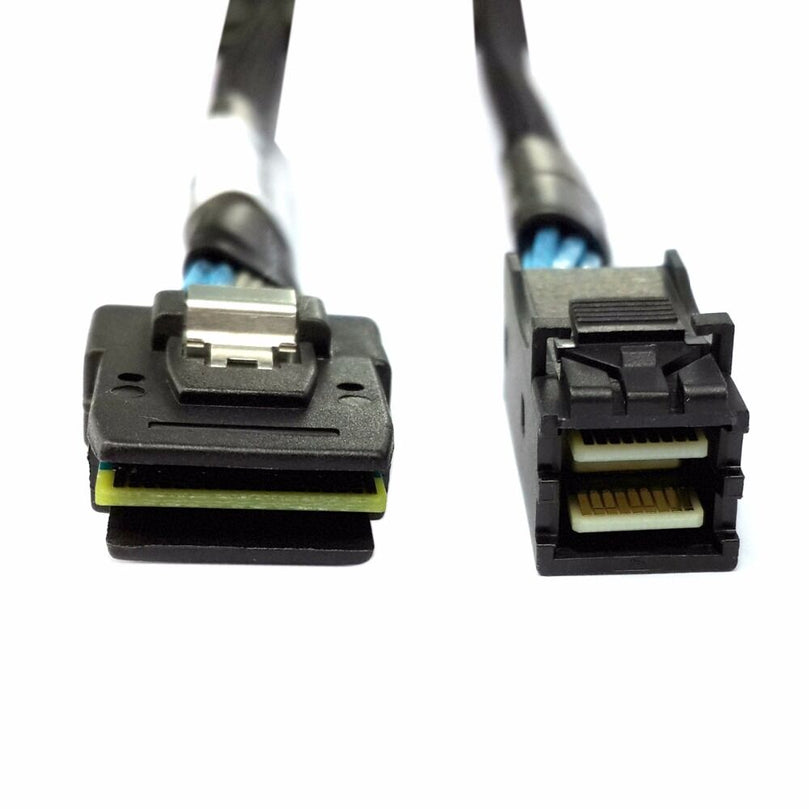

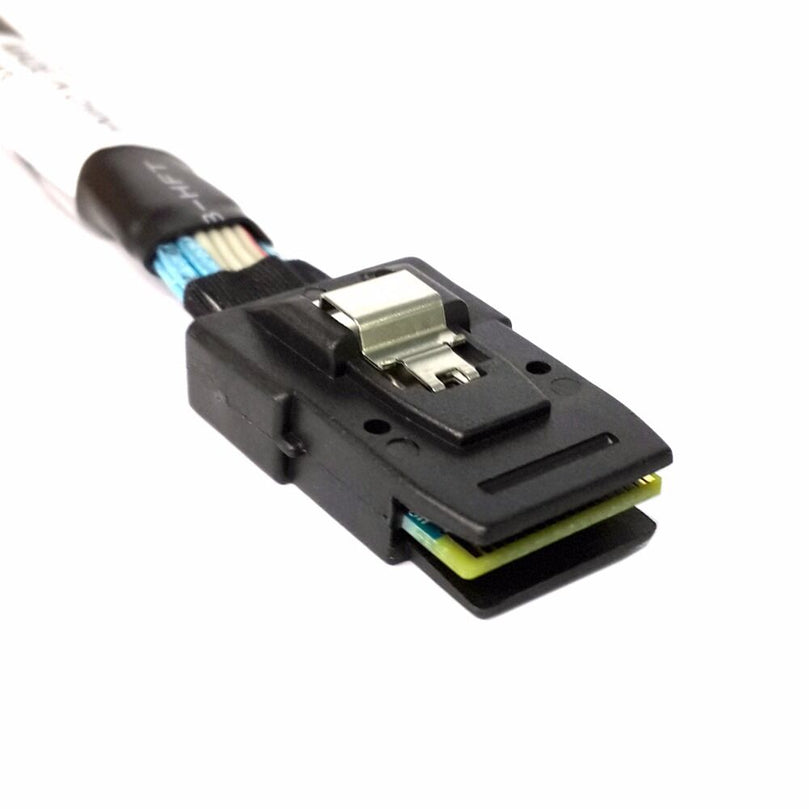

Internal Mini SAS SFF-8087 to mini sas High Density HD SFF-8643 data Cable

Length: 50cm 100cm

Notice:

There are SFF-8643 port for belowing raid card:

LSI 9207-8i,Adaptec Raid 71605,Adaptec Raid 72405,Adaptec Raid 8885Q,Adaptec Raid 8885,Adaptec Raid 8805,Adaptec Raid 8885E,Adaptec Raid 71685,Adaptec Raid 7805,Adaptec Raid 71605E,Adaptec Raid 78165,Adaptec Raid 81605ZQ

There are SFF-8644 port for belowing raid card:

LSISAS9202-16e,Adaptec Raid 71685,Adaptec Raid 8885Q,Adaptec Raid 8885,Adaptec Raid 8885E,Adaptec Raid 78165

Package Included:

1 x SFF-8087 to SFF-8643 Data Server Cable
