Plugadget M.2 PCIe Adapter M2 NGFF SSD NVME M Key SATA-based B Key to PCI-e 3.0 X4 X8 X16 2230-2280 size M.2 ssd Controller Converter Card

:In stock

  • Features:

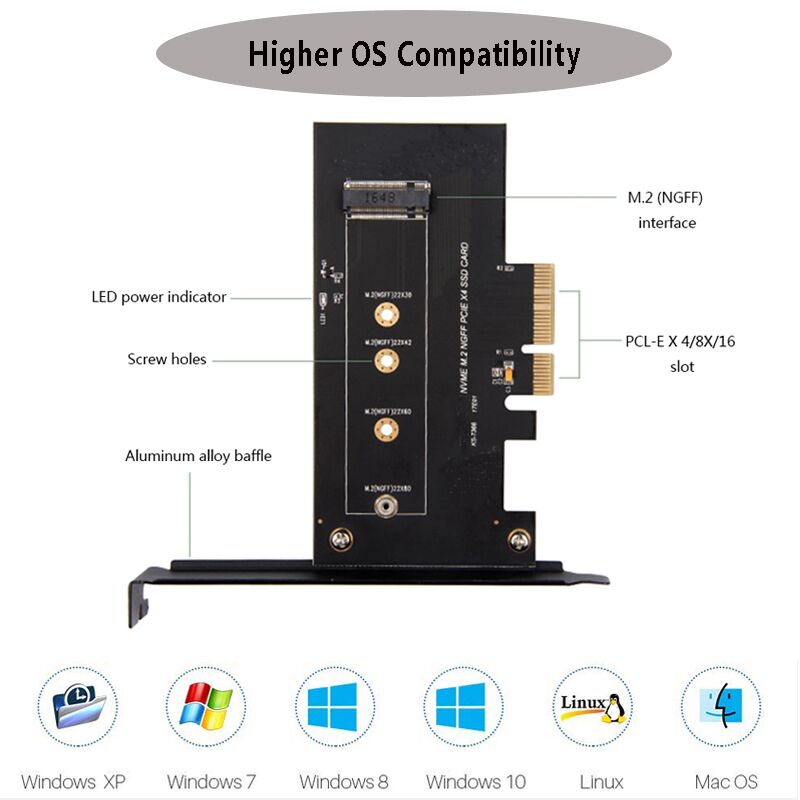

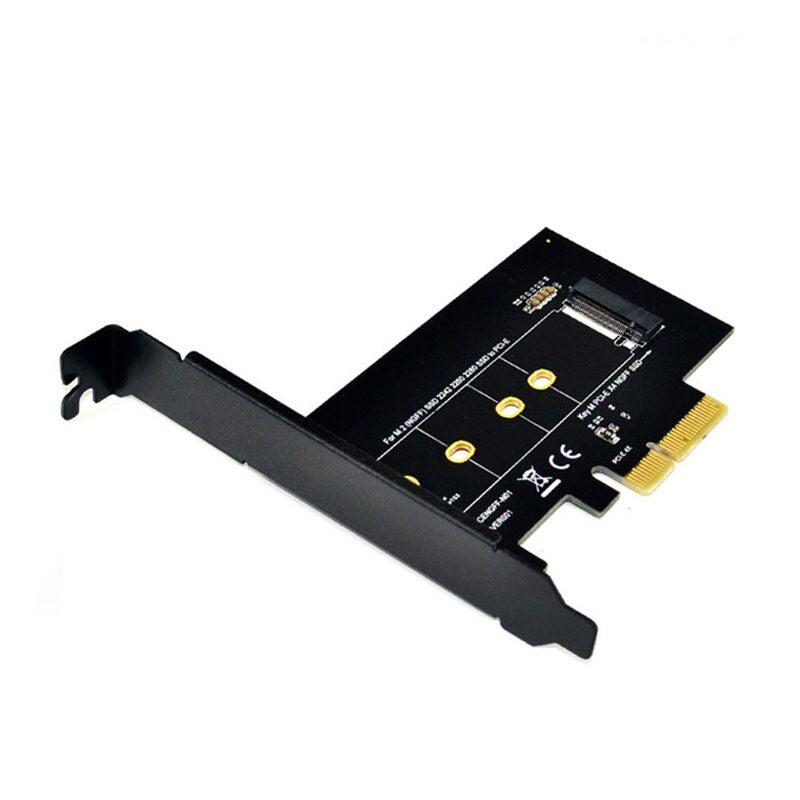

  • The item is 2 slots adapter Card: M key M.2 NGFF SSD to PCI-E X4 adapter and B key M.2 NGFF SSD to SATA adapter.

  • M key M.2 NGFF SSD to PCI-E X4 adapter or B key  M.2 NGFF SSD to SATA adapter.
  • The speed and other properties is not changed, only change the interface type and without any software or drivers.
  • Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M.2 NGFF SSD.
  • Macth with two kinds of Metal sheet ( length:8 cm, 12 cm )
  • Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ).
  • About M.2 NGFF SSD interface standard:

  • Socket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.
  • Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM  MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.
  • Package included:
  • 1 x PCIE Expansion Card
