Model:MC7455 FDD/TDD cat 6 LTE 4G module

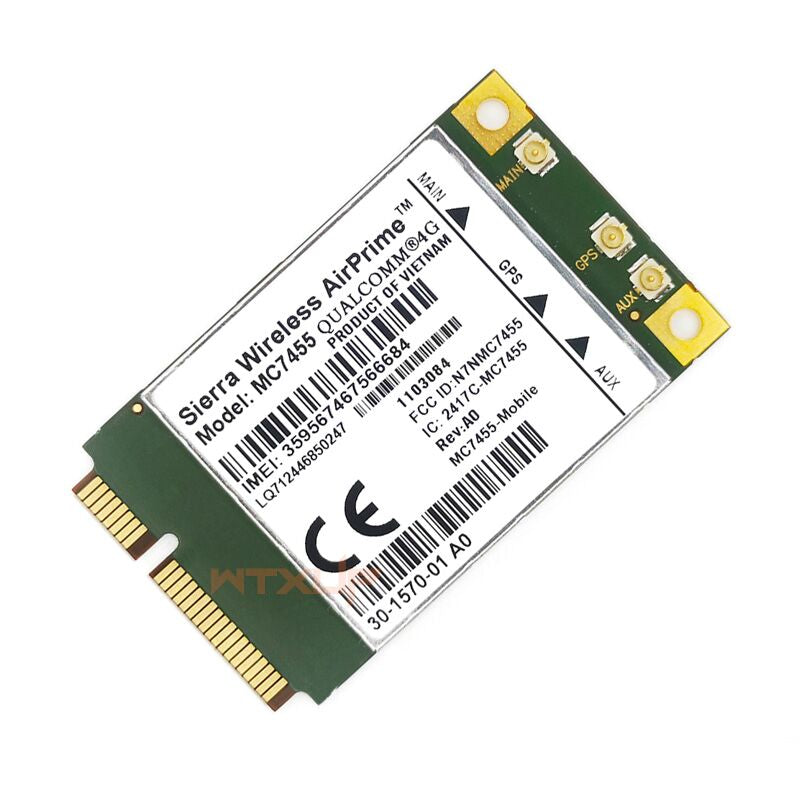

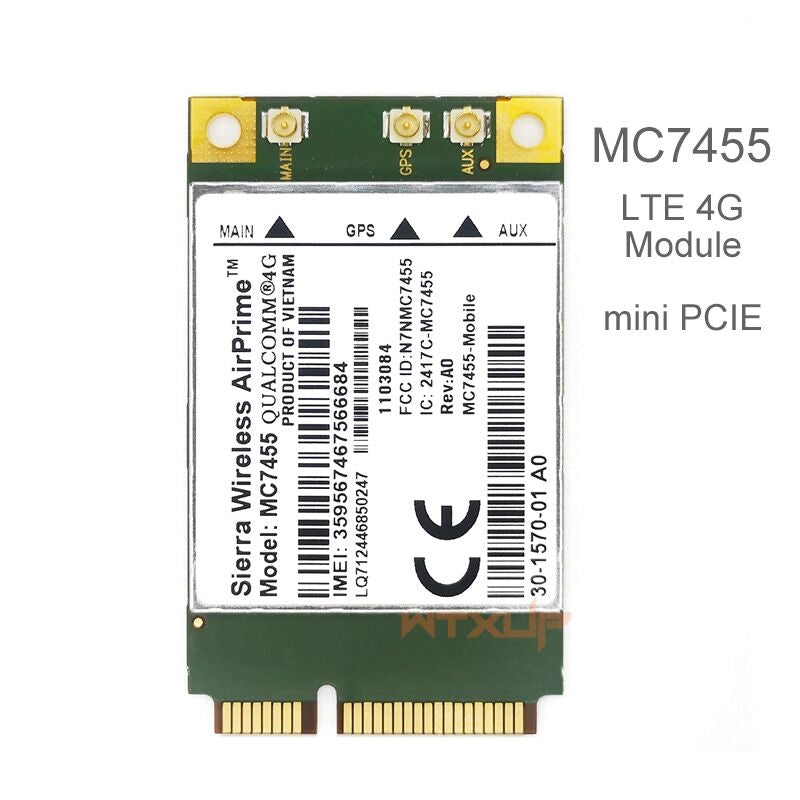

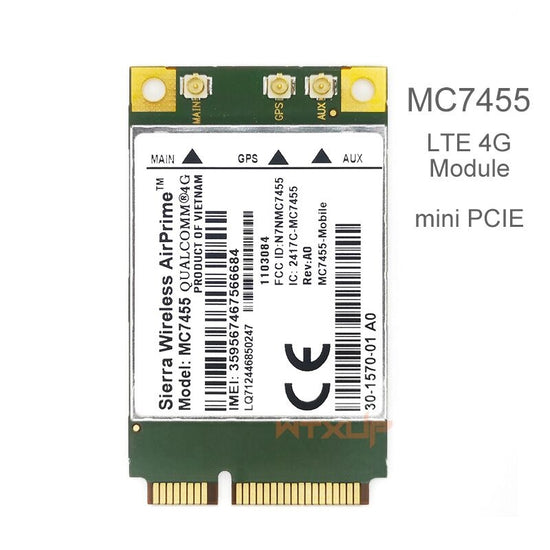

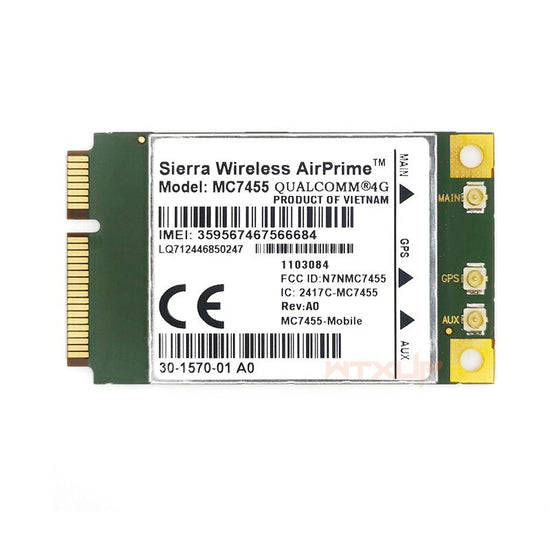

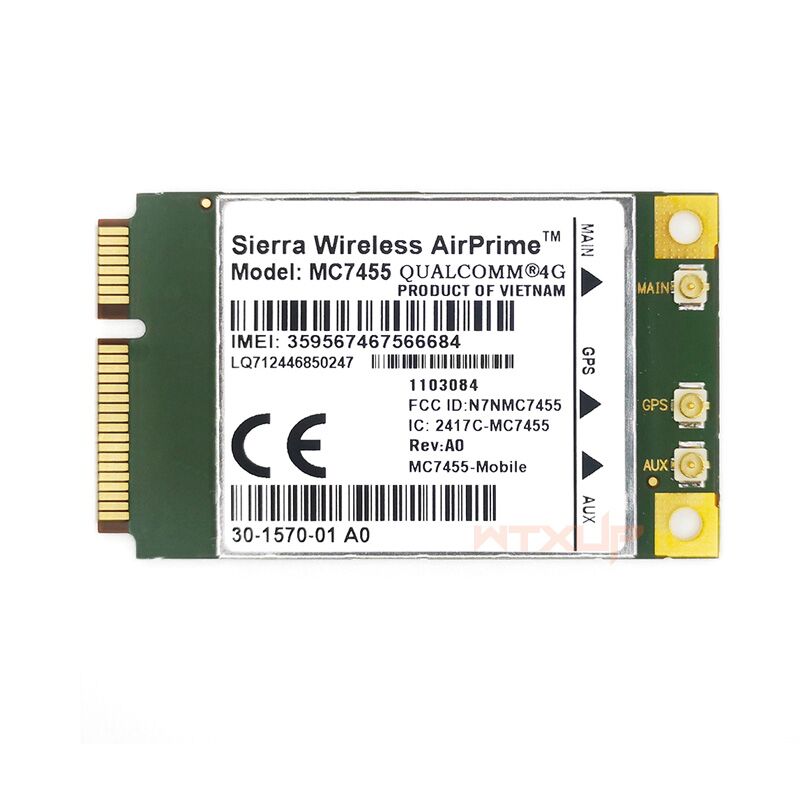

MC7455 PCI Express Mini Card is a compact, lightweight, wireless LTE-Advanced and UMTS based modem.
It provides LTE-FDD, LTE-TDD, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, and GNSS connectivity for networking, and M2M applications over several radio frequency bands and supports 3G roaming.
MC7455 is a 4G LTE cat.6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Europe, North and South America. Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G DC-HSPA+ with Rx diversity. It has a brother model Sierra MC7430 which is also a LTE Cellular module with Category 6.
MC7455 Technical Specifications:
Form factor: PCIe Mini Card.
Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS.
Support 4G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B20 (800), B25 (1900), B26 (850), B29 (700), B30 (2300), B41 (2500/TDD).
Support 3G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B8 (900).
Support LTE Peak Data rate: DL 300 Mbps, UL 50 Mbps.
GNSS (GPS, Glonass, Beidou, Galileo*):
Regulatory: FCC, IC, CE, NCC, GCF, PTCRB.
Dimensions: 51 x 30 x 2.5 mm.
Supply Voltage: 3.3 V nominal.
Operating Temperature: -40°C to +85°C.
Supported Carriers: AT&T, Verizon, Sprint, Vodafone.
- Control, Software and Features
Control options: AT Commands, QMI SDK, MBIM.
For optimum control the QMI SDK is recommended.
Drivers: Android, Linux, Windows.
Switch networks anytime with up to three different certified firmware variants on board.
System connector: 52 position Mini PCIe.
Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS with DC bias).
1x USB 3.0 and USB 2.0 High Speed
1x Wake host
1x Wireless disable
1x System RESET
3x Antenna Control (muxed with GPIO 1-3)
1x Dynamic Power Control, DPR (muxed with GPIO 4)
4x GPIO (muxed with Antenna control or DPR)
1x LED driver output
2x SIM interface: 1.8/3V
1x Digital Audio
Digital audio: PCM/I2S
3G: Circuit Switched Fall Back (CSFB voice)
1 x MC7455 4G module
