Mini PCI-E to SATA

Plugadget Mini PCI-E PCI Express to 2 Ports SATA 3.0 Converter SSD HDD SATA3 Controller Expansion Card SATA Multiplier

:In stock

$16.98
Title
Share:
  • Features:

  • 1. A native PCI-Express single chip design
  • 2. Supports two SATA 3.0 6Gbps ports
  • 3. Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
  • 4. Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
  • 5. Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
  • 6. Serial ATA (SATA) Interface
  • 7. Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
  • 8. Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
  • 9. Supports SATA 3.0 transfer rate up to 6Gbps
  • 10. Backward compatible with SATA-II (3Gbps) and SATA-I (1.5Gbps) specification
  • 11. Supports Gen1m and Gen2m SATA PHY
  • 12. Supports Native Command Queue (NCQ) and Port Multiplier
  • 13. Supports Hot Plugging on SATA port.
  • 14. None Raid function.
  • 14. ASMedia ASM1061 main chips.
  •
  • System requirements:
  • Computer system with one Mini PCI-Express slot available
  • Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux
  •
  • Package included:

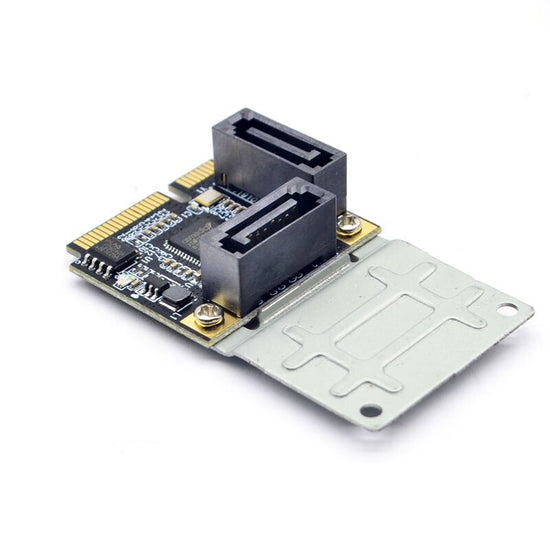

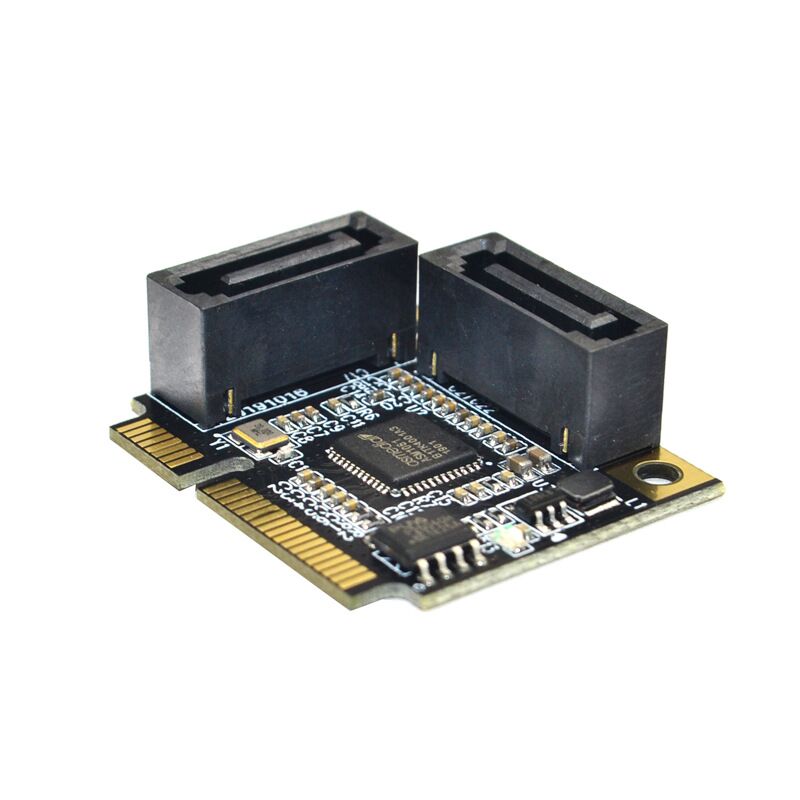

  • 1 x MINI PCI-E to 2Port SATA Expansion Card
  • 4 x Screws
  • 1 x Profile Bracket
