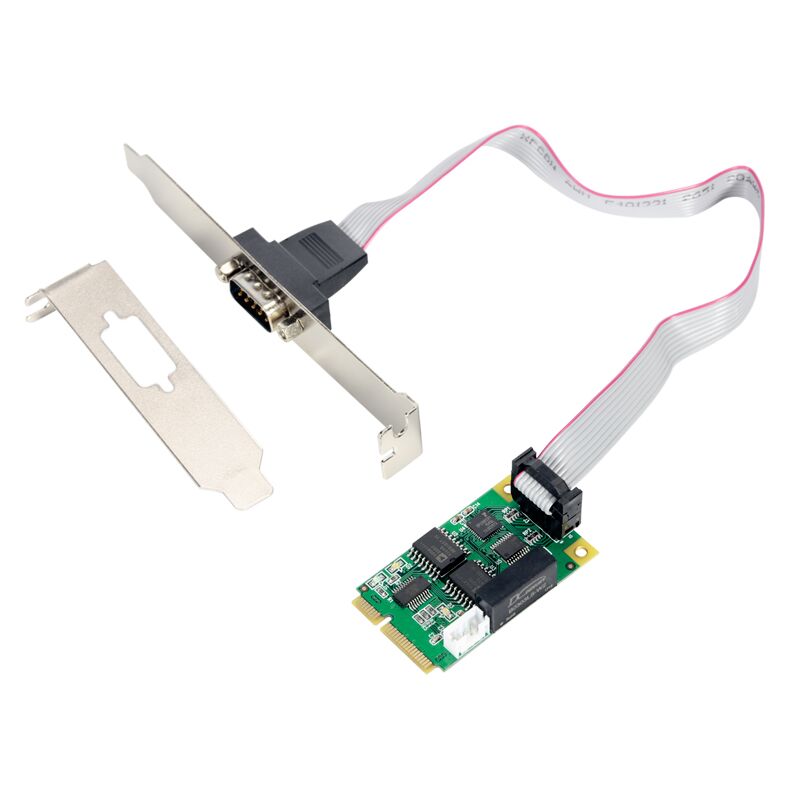

Plugadget Mini PCIE USB to RS422 RS485 RS232 COM Port Card DB9 for Modem PDA GPS Bar Code Digitizer ISDN terminal adapter

:In stock



USB 2.0 High Speed (480 Mbits sec.) and Full Speed (12 Mbits sec) compatible.

Standards: conforming to USB1.0, 1.1 and 2.0.

USB 2.0 Compliant, Full-Speed  (12 Mbps).

Full size Mini PCIe  module type combo.

MiniPCIe via USB & USB pin header.

RS232 Data Rates: 300bps to 1 Mbps.

RS422/RS485 Data Rates: 300bps to 10 Mbps.

FIFO Buffer: 4K byte transfer, 4K byte receiver.

UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none,Flow control none,hardware and xon/xoff

1.Isolation voltage: 2500V,High common-mode transient immunity

2.500W surge protection and±23KV ESD protection

3.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)

4.Operating Temperature:-40 to +85

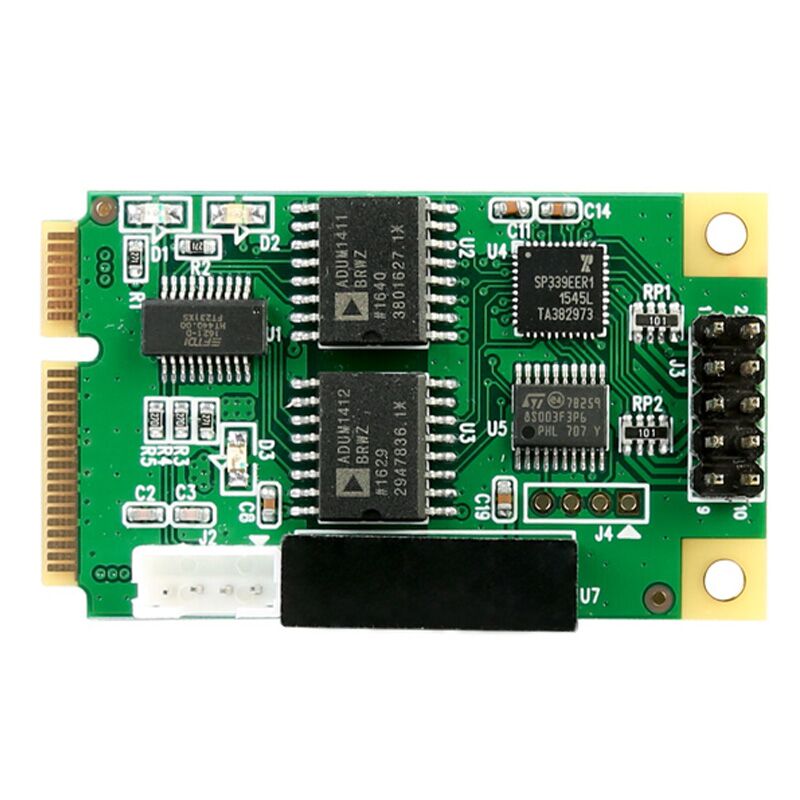

The model is ready the USB signal on both MiniPCIe side (Pin 36, 38, 2, 4) and Pin Header (J2). While using, please kindly select only one of the two.

System Requirements:

Windows XP,Vista,7,8,10 32,64-bit;

Windows Server 2K3,2K8,2K12 32,64-bit

Windows XP Embedded

Windows CE 4.2, 5.0 and 6.0

Mac OS-X

Linux 3.2 and greater



POS Printer Terminal

Networking System

Industrial and Power Meter

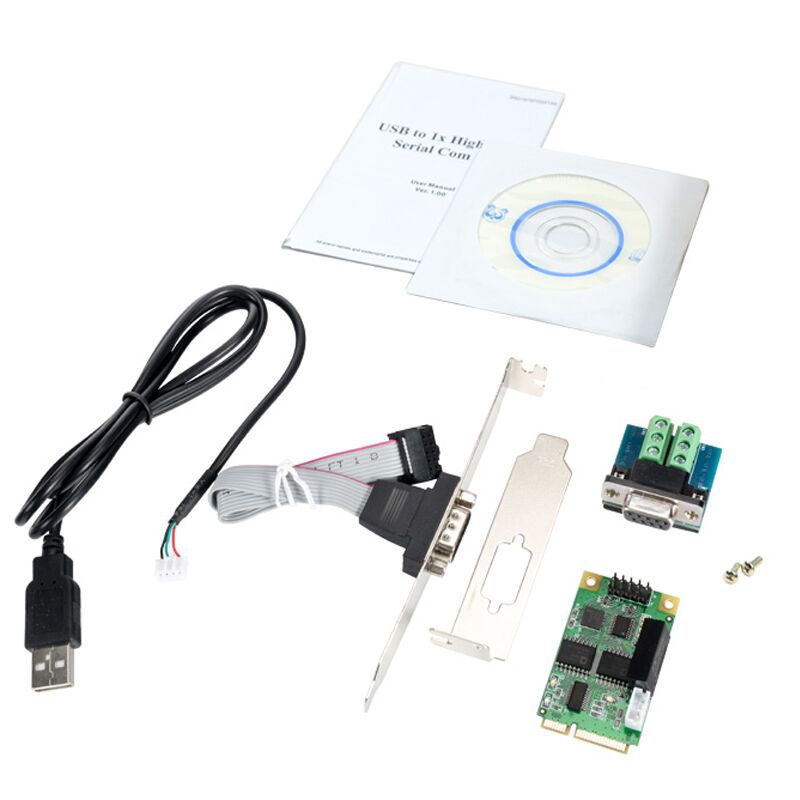

Package Included:

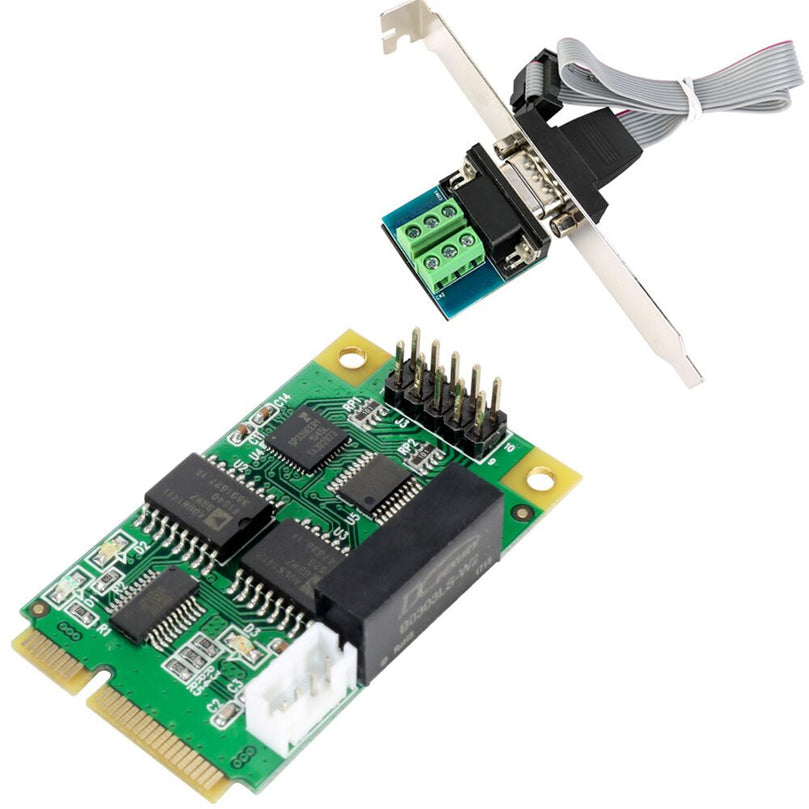

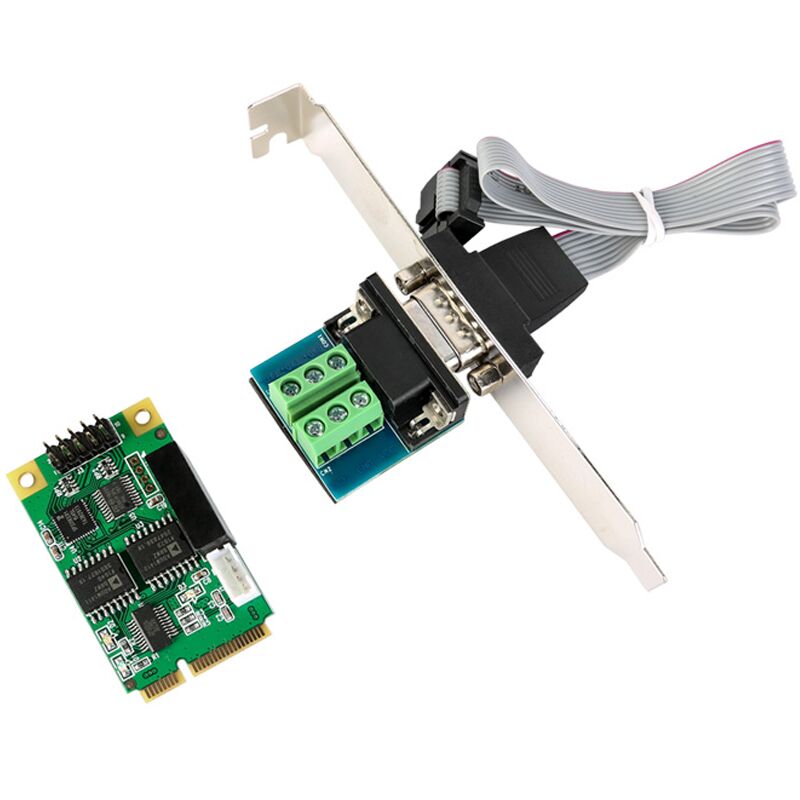

1 x MINI PCI-E To RS232/422/485 Card
