Plugadget Mini SAS HD SFF 8644 To SATA Cable 180 degree 4 port 7Pin, M

1 8

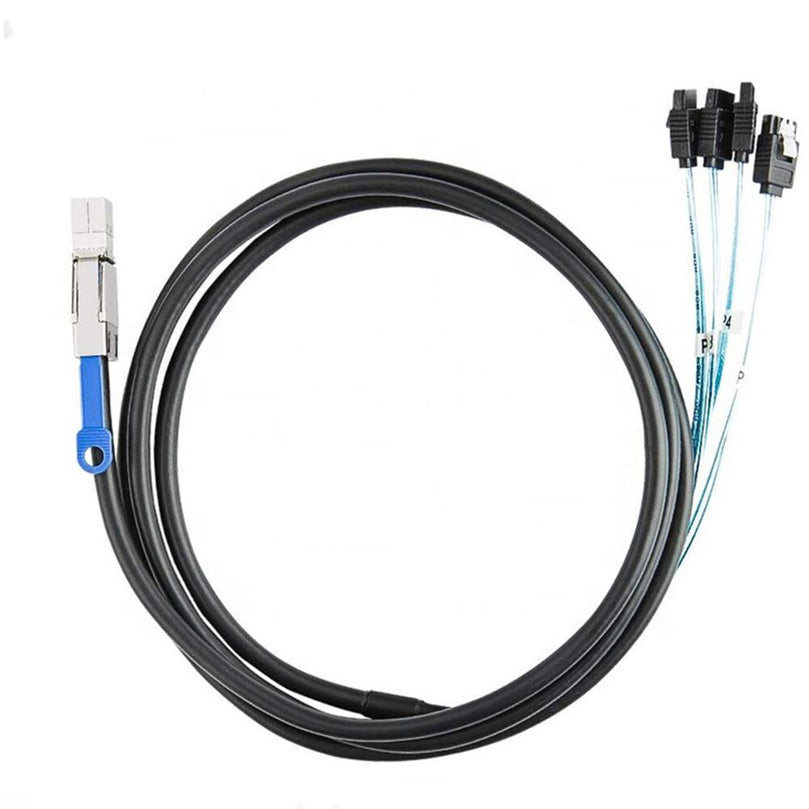

Plugadget Mini SAS HD SFF 8644 To SATA Cable 180 degree 4 port 7Pin, Mini SAS HD SFF-8644 to 4 SATA 7pin 12GB for Hard Disk Data Server

()

Features: HD Mini SAS 36P to 4X SATA 7P Product Description: HD Mini SAS 36P Straight to 4X SATA 7P Series: HD Mini SAS Cable...

Type: SAS Cables

Vendor: Plugadget

Sku: PGSASC-052

Availability: In Stock

Size 1m 2m

Product variants

Quantity

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Features:
HD Mini SAS 36P to 4X SATA 7P
Product Description: HD Mini SAS 36P Straight to 4X SATA 7P
Series: HD Mini SAS
Cable Length: 1.0/2.0 meters
Wire Size: 28AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch for HD Mini SAS end
Plating: PCB Au 3u" min over Ni 100u" min,
SATA Au 1u" min over Ni 100u" min
Color: Cable White, Over mold Black
Environmental Compliance: RoHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications:
Data/Communications
1.RAID (Redundant Array of Independent Disks ),2.Workstations,3.Rack-mount server,4.Servers,5.Storage rack.
Features and Benefits:
1. Transmission rate 12 Gbps.
2. Meet SAS4.0 specification.
Package included:
1 x SFF-8644 To sata cable
