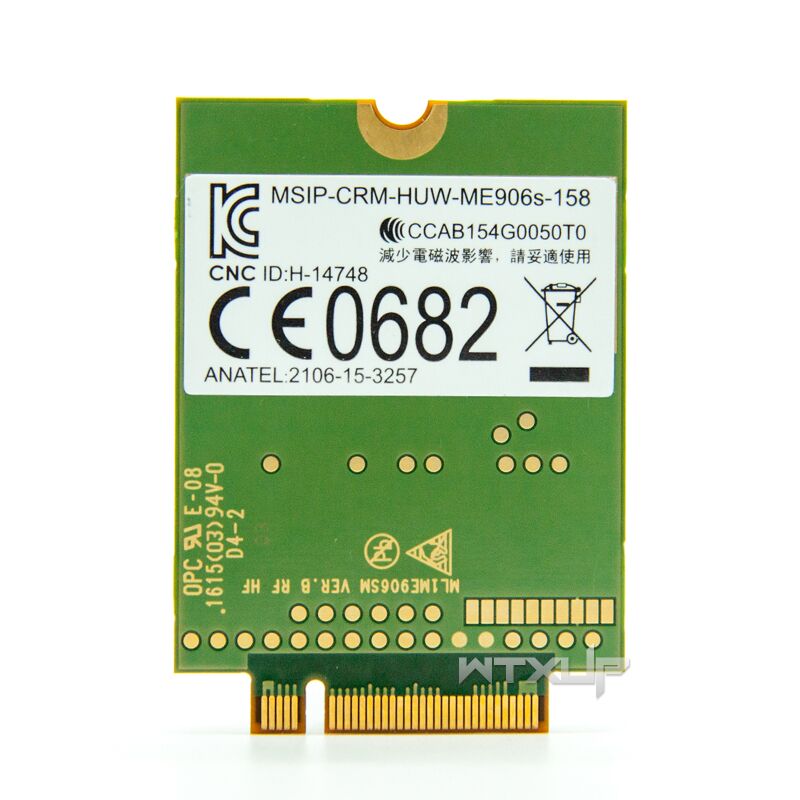

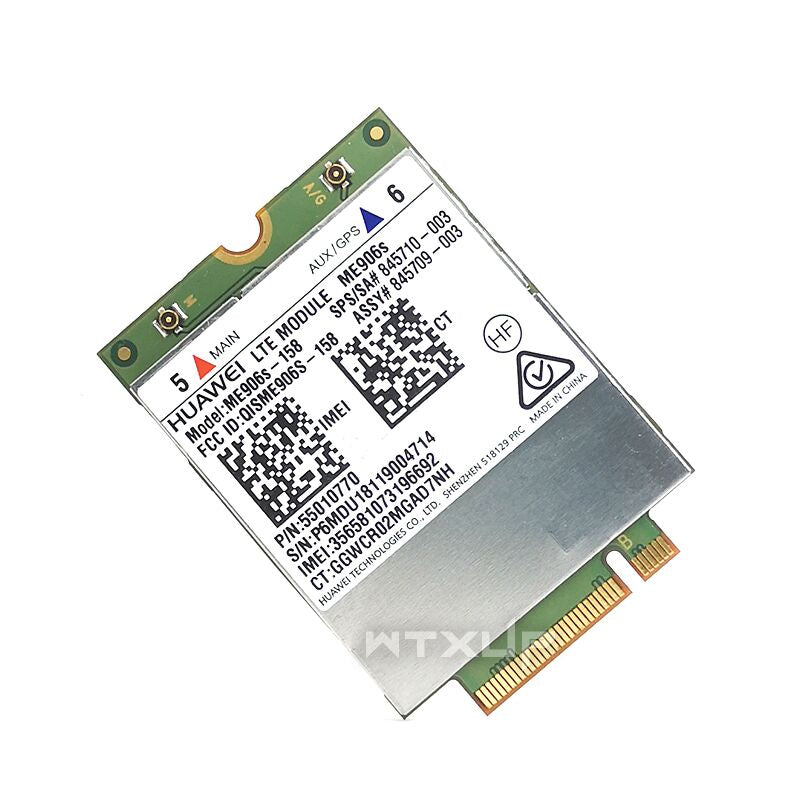

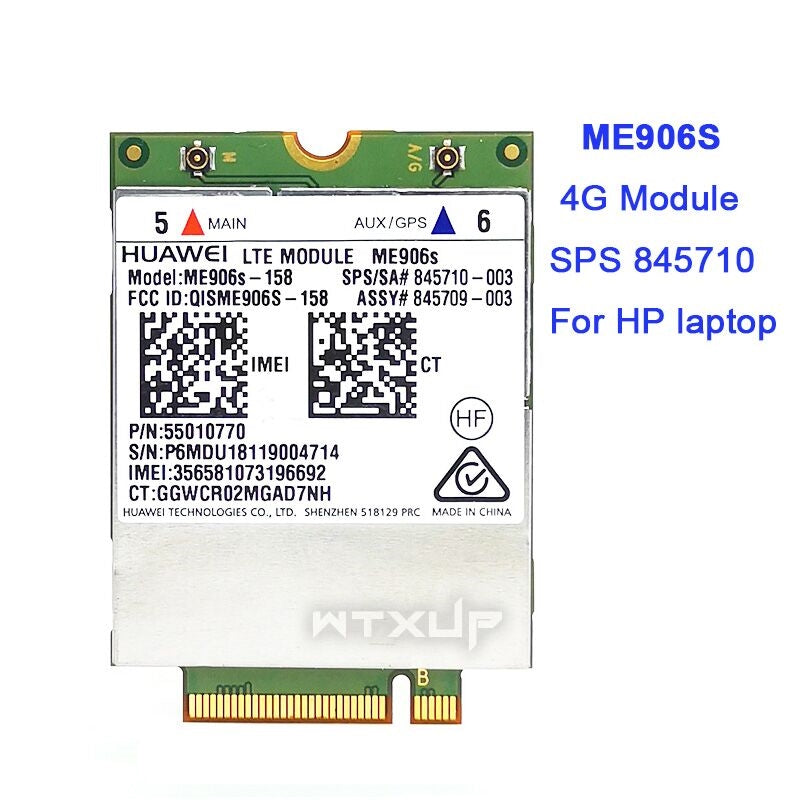

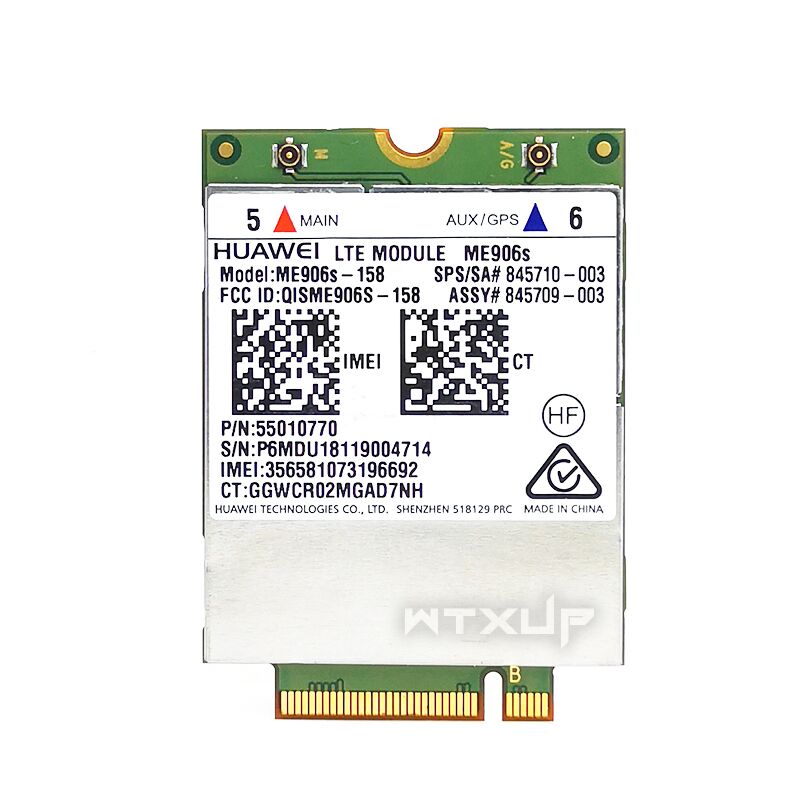

Plugadget Mobile Broadband Card for HP 840 850 LT4132 LTE HSPA+ 4G Module ME906S ME906S-158 845710-003

:In stock

$32.98
Title

Features:

ME906s-158  is a M.2 interface LTE module with Hisilicon Balong V711 chipset embedded, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28, Qual-band DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8 for Europe and APAC network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Europe carrier certifications, enabling easier and more flexible design and integration into end devices.

ME906s-158 is the ideal choice for Notebook, Tablet and Ultrabook etc.

It is compatible with HP:EliteBook 725 G4, 745 G4, 755 G4,820 G4, 840 G4, 850 G4;ProBook 640 G3, 645 G3, 650 G3, 655 G3;ZBook 15u G4,ProBook 430, 440, 450,  470 G4

Bands

LTE FDD:B1,B2,B3,B5,B7,B8,B20,B28

DC-HSPA+/HSPA+/HSPA/WCDMA:B1,B2,B5,B8

EDGE/ GPRS/GSM 1900/1800/900/850 MHz

Data Transfer Rate

EDGE: DL 236.8 kbps/UL 236.8 kbps

WCDMA PS: DL 384 kbps/UL 384 kbps

HSPA+: DL 21.6 Mbps/UL 5.76 Mbps

DC-HSPA+: DL 42Mbps/UL 5.76 Mbps

LTE FDD: DL 150 Mbps/UL 50 Mbps @20M Bandwidth cat4

Interface

Antenna interfaces * 2.

M.2 Socket.

Signal Control interface.

USB 2.0 interface high speed.

USIM Card interface.

Power supply interface.

Power Supply.

3.135 V to 4.4 V (typical: 3.3 V).

GNSS:GPS Standalone, A-GPS, LTO, Glonass.

SIM Hotswap.

IPV6.

BodySAR.

Tunable Antenna

Package Included:

1 x  ME906S module network card
