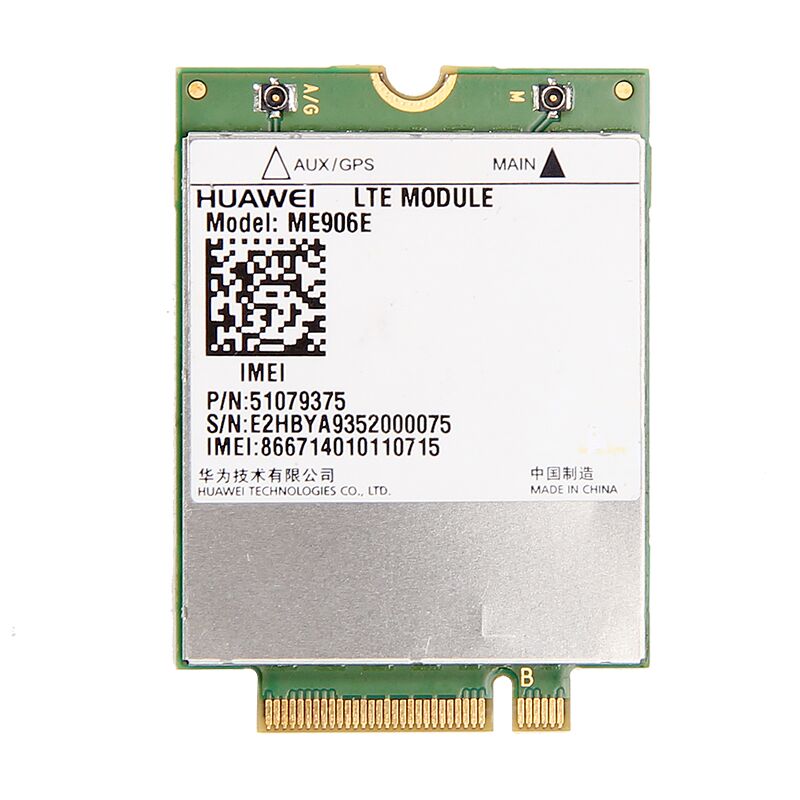

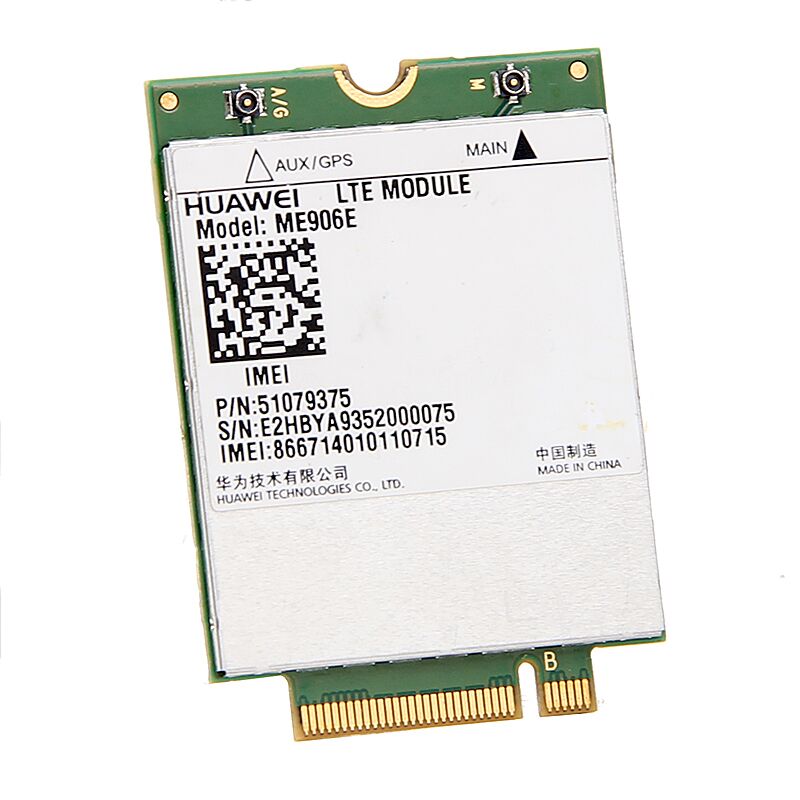

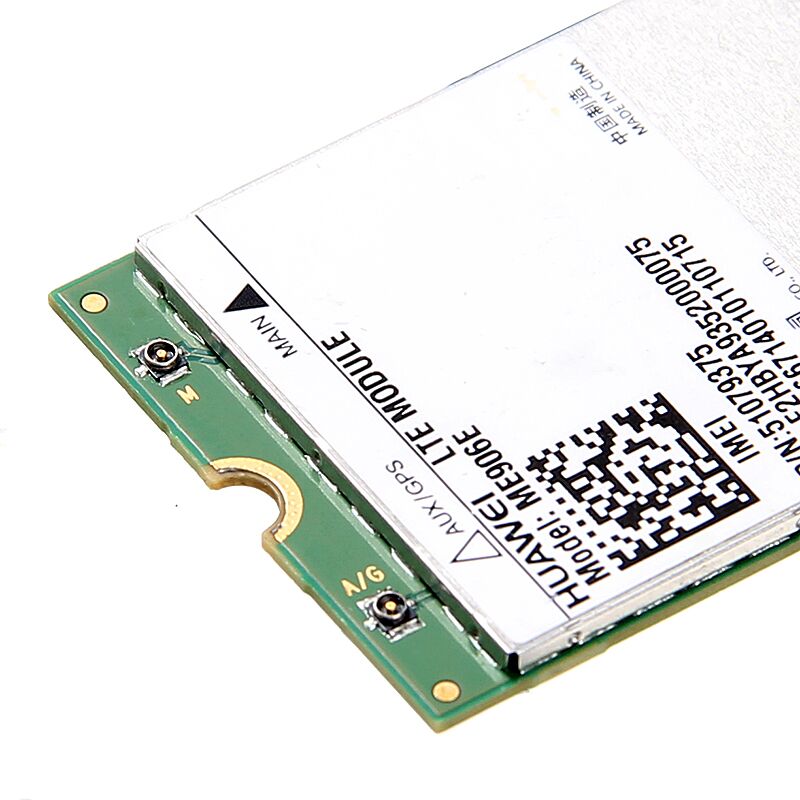

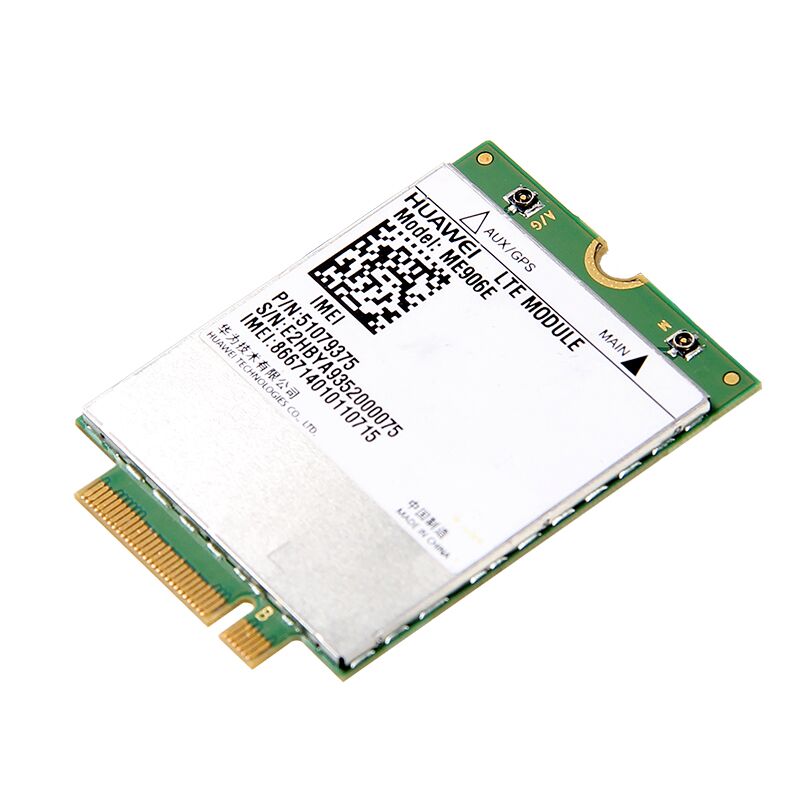

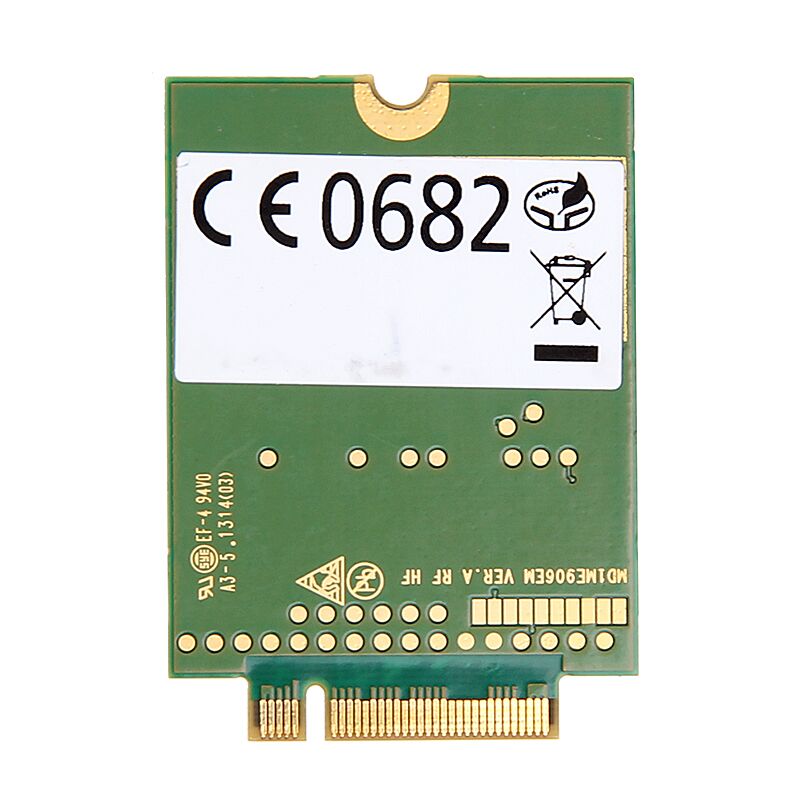

Plugadget Original Unlocked HUAWEI ME906E 4G LTE Module 3G Quad-band GPS WCDMA HSPA+GPRS NGFF Wireless 3G WWAN card for Ultrabook Laptop

:In stock

$38.98
Title

Features:

Note:Not support HP/IBM/Lenovo /Thinkpad Laptop.

LTE (FDD) B1/B2/B3/B5/B7/B8/B20

·Quad-band  DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

·Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz

·GNSS

  GPS L1: 1575.42 MHz

  Glonass L1:  1602 MHz

·Receive diversity

   DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

   MIMO LTE: DL 2*2 MIMO

· Max. transmitter power

    WCDMA/HSPA+:+24dBm (Power Class 3)

    GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1)

    GSM/GPRS 900M/850MHz: +33dBm (Power Class 4)

    EDGE 1900MHz/1800MHz: +26dBm (Power Class E2)

    EDGE 900M/850MHz: +27dBm (Power Class E2)

    LTE:Accorded with 3GPP TS 36.101 R8 Class 3(23dBm)

·Control via AT commands

  3GPP TS 27.007 and  TS 27.005

  Huawei extended AT command

· SIM card supply voltage

  1.8V/3.0 V UICC (SIM/UICC/UIM), ISIM supported

·  Supply voltage range

   3.135V~4.4V (3.3 V recommended)

·Temperature range

   Normal operation:     -10°C to +55°C

   Extended operation:  -20°C to +70°C

   Storage:                     -40°C to +85°C

· Humidity: 5% -  95%

· Dimensions: 42 mm x 30 mm x 2.3 mm

· Weight: <6g

·OS: Windows 7 / Windows 8 / Android 4.0

 Data Features

 GPRS/EDGE: Multi-slot Class 12

·WCDMA PS: UL (384 kbps)/ DL (384 kbps)

·DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps)

·LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)

 SMS Features

Supporting MO and MT

·Supporting formats of PDU

·Point-to-point and cell broadcast

 Interfaces

 Antenna interfaces x 2

·M.2 Socket 2

  USB 2.0 interface high speed

  Power supply

  UICC interface

 Approvals & Certifications

· CE

·FCC

·GCF

·RoHS Compliant/ Halogen free

·Operator  TA: Vodafone, Telefonica, Telstra, TMO

Package Included:

1 x HUAWEI ME906E 4G LTE Module
