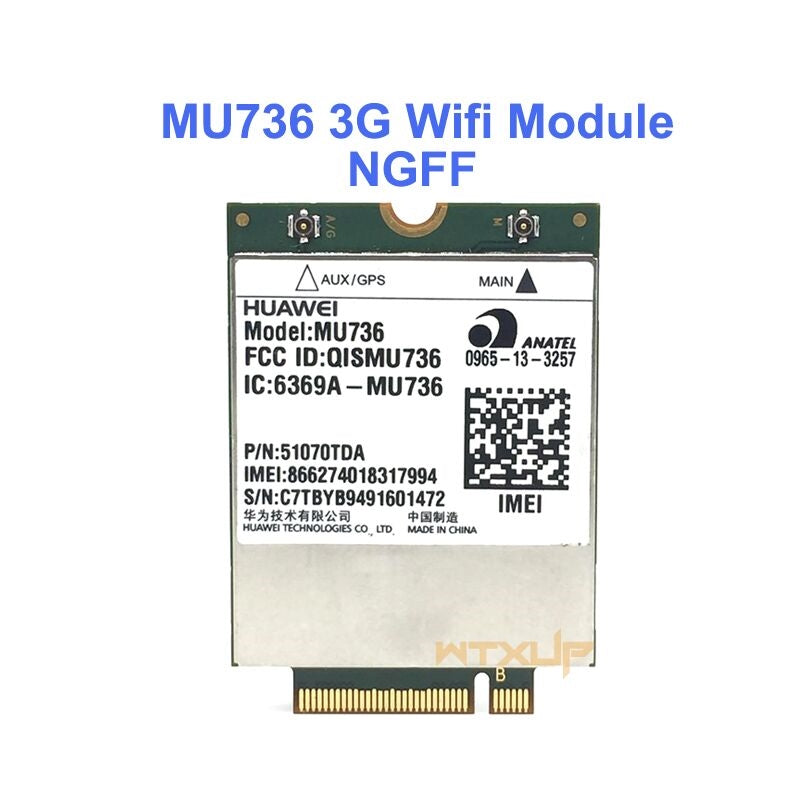

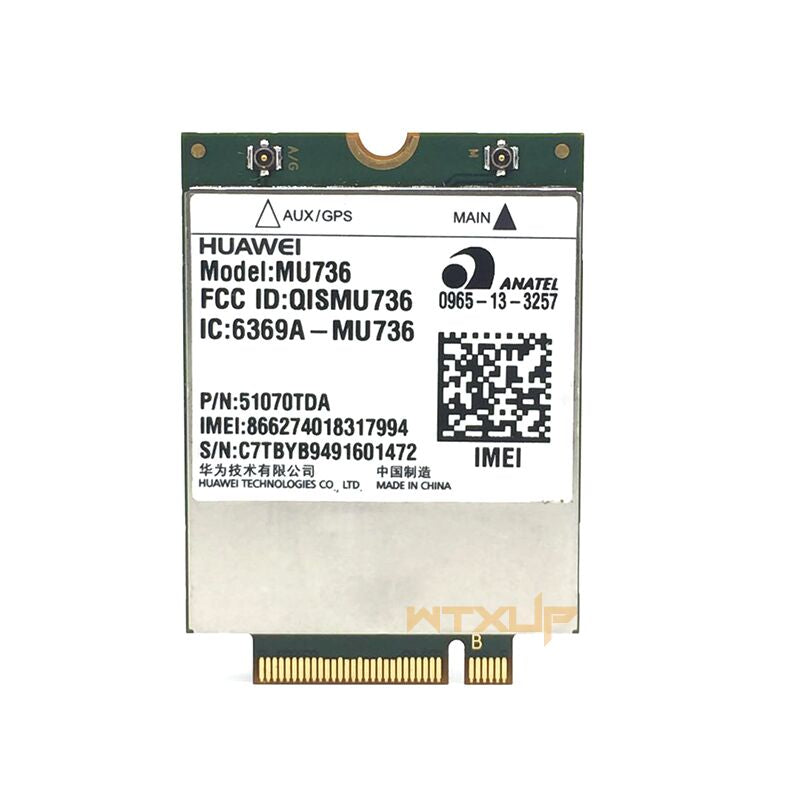

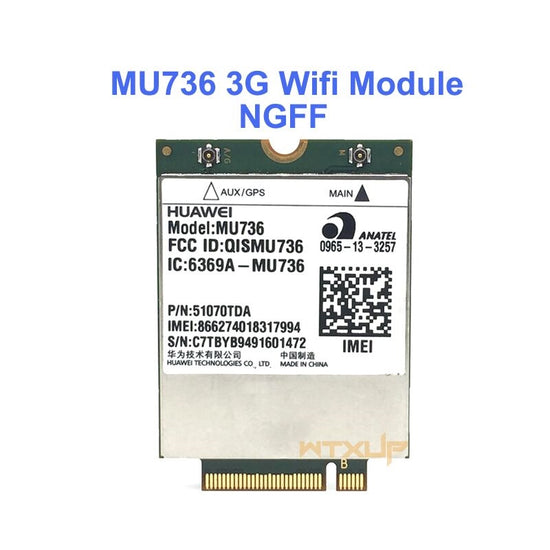

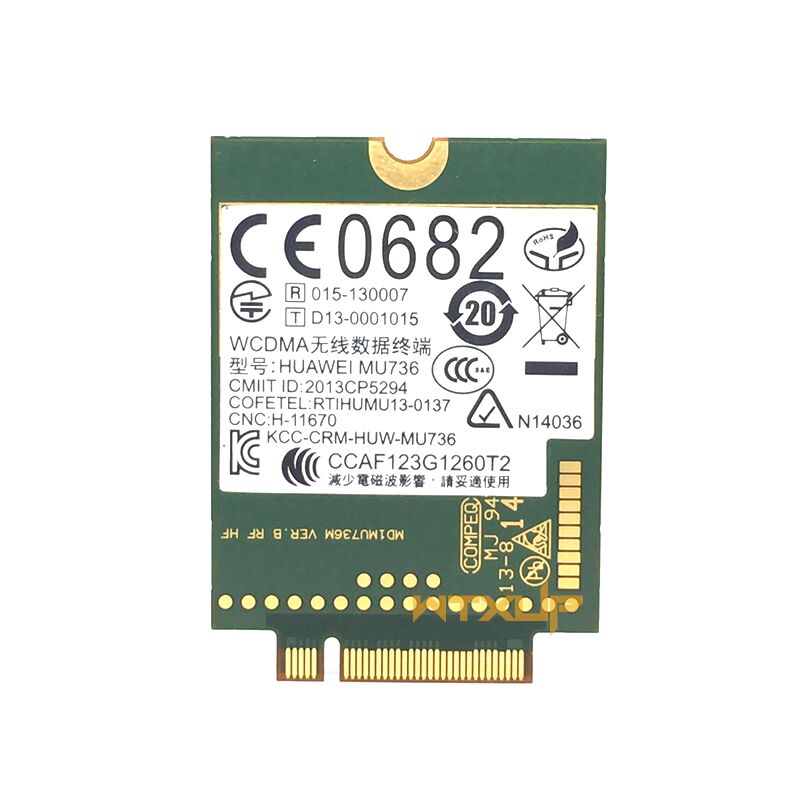

Plugadget Original UNLOCKED MU736 3G NGFF M.2 interface Wireless Card WCDMA/HSP/HSPA+/EDGE/GPRS/GSM Module

:In stock

$13.98
Title

Features:

Model:MU736 HuaWei 3G Module

Product Description:

Physical Features

Dimensions(LXWXH): 42 mm × 30 mm × 2.3 mm

Weight: about 6g

Operating Bands

WCDMA/HSDPA/HSUPA/HSPA+: 850 MHz/900 MHz/1700 MHz (AWS)/1900 MHz/2100 MHz

GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz

GPS: L1

Operating Temperature

Normal operating temperature: - 10C ~ + 55C

Extended operating temperature : - 20C ~+70C

Storage Temperature 40C to +85C

Power Voltage 3.135 V ~ 4.4V (3.3 V is typical)

Application USIM (3.0 V or 1.8 V)

Feature Description:

Interface (75-pin Gold Finger)

USIM Hot Swap Detection

USB 2.0 (high speed)

Power_On_Off pin

Reset# pin

LED# pin

W_DISABLE# pin

GPS_DISABLE# pin

Tunable Antenna Control (4 GPIOs)

Wake_On_WWAN# pin

BodySAR_N pin

Power supply (5 pins)

Antenna interface

MAIN and AUX(supports Diversity and GPS simultaneously)

SMS New message alert

Management of SMS: read SMS, write SMS, send SMS, delete

SMS and SMS list.

Supporting MO and MT. Point-to-point

Data Services GPRS:UL 85.6 kbps/DL 107kbps

EDGE: UL 236.8 kbps/DL: 296 kbps

WCDMA CS: UL 64 kbps/DL 64 kbps

WCDMA PS: UL 384 kbps/DL 384 kbps

HSPA+: UL 5.76 Mbps/DL 21.6 Mbps

It can support DEll/ASUS/Acer... which has NGFF G3 interface, but it cannot support Lenovo/Thinkpad/HP laptop.

Package Included:

1 x HUAWEI MU736 module
