Plugadget Pci 4 Port Expansion Card Sata Controller Pci Raid Card Pci To Sata Adapter Sata Pci Converter Card For Desktop/Computer
- Regular price
- $15.98
- Sale price
- $15.98
- Regular price
-
- Unit price
- per
Features: Support four hard drives. Support more than 137 GB capacity hard disk (48-bit LBA). Support RAID 0, RAID 1, RAID 5, RAID 0 +...
Type: SATA Adapter
Vendor: Plugadget
Sku: PGSATA-048
Availability: In Stock
Tags: 4 Port SATA Expansion Card,PCI to 4 port SATA,PCI to 4 Port SATA RAID Card,PCI to SATA,PCI-SATA,SATA Card,SATA RAID,SATA to PCi,Sil3114,
Couldn't load pickup availability
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Share
Features:
Support four hard drives.
Support more than 137 GB capacity hard disk (48-bit LBA).
Support RAID 0, RAID 1, RAID 5, RAID 0 + 1 mode, support JBOD.
4 internal SATA interface, the transmission rate is up to 1.5Gb / s.
Supports PCI 32-bit bus; Bus speed of 33MHz / 66MHz; PCI 2.3 Standard .
PCI "Plug and Play" compatibility.
Applications: 150MB / sec (S-ATA Rev1.0 theoretical value).
Support Windows 98SE / Me / 2000 / XP / NT 4.0 / XP 64-bit / Vista, Linux & Netware OS.
Specifications:
Chipset: Silicon Image Sil3114
Package weight: 100g
SATA:
Support four internal SATA interface, the transmission rate is up to 1.5Gb / s
Supports SATA 1.0 standard
256 bytes FIFO port for quick read / write operation
RAID:
Support RAID 0, RAID 1, RAID 5, RAID 0 + 1 mode, support JBOD
Supported device:
Hard disk, CDROM, DVD ROM, CD-R, CD-RW, DVD-R, DVD-RW, and the like
System Requirements:
There is at least one available 32-bit PCI slot on the PC
Supported Operating Systems: Windows 98SE / Me / 2000 / XP / NT 4.0 / XP 64-bit / Vista, Linux & Netware OS.

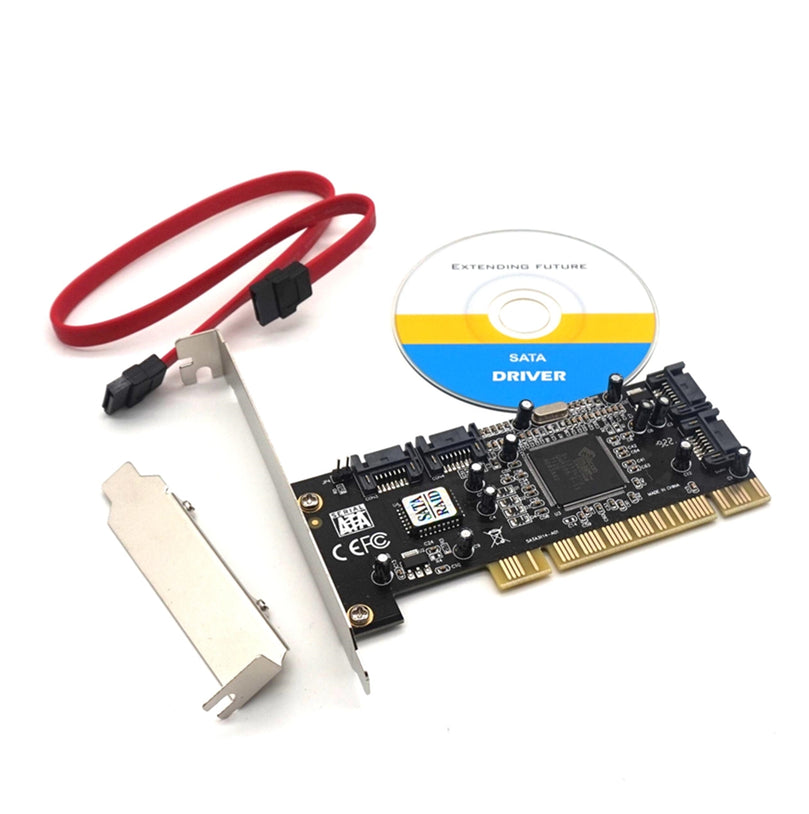

Include
1 x PCI to 4 Port SATA RAID Card
1 x Drive CD
1 x SATA Cable
