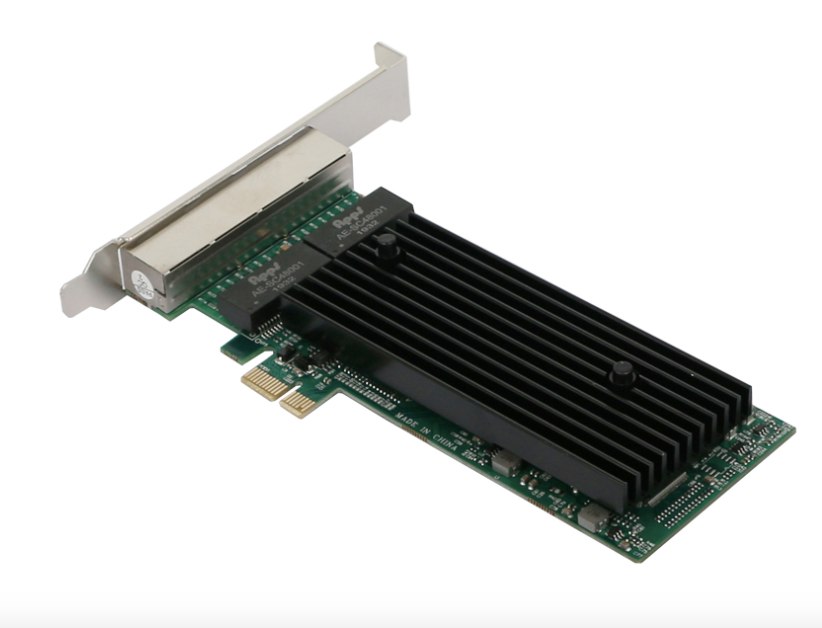

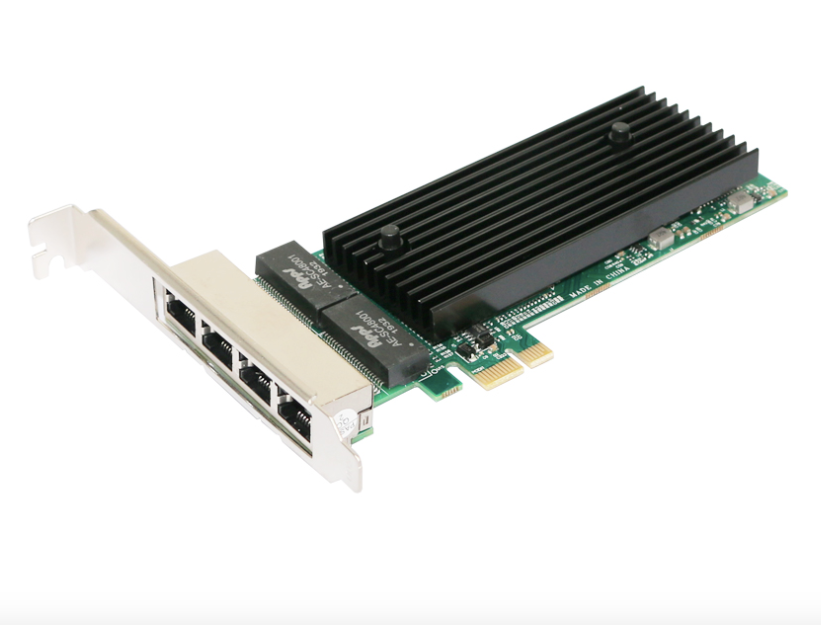

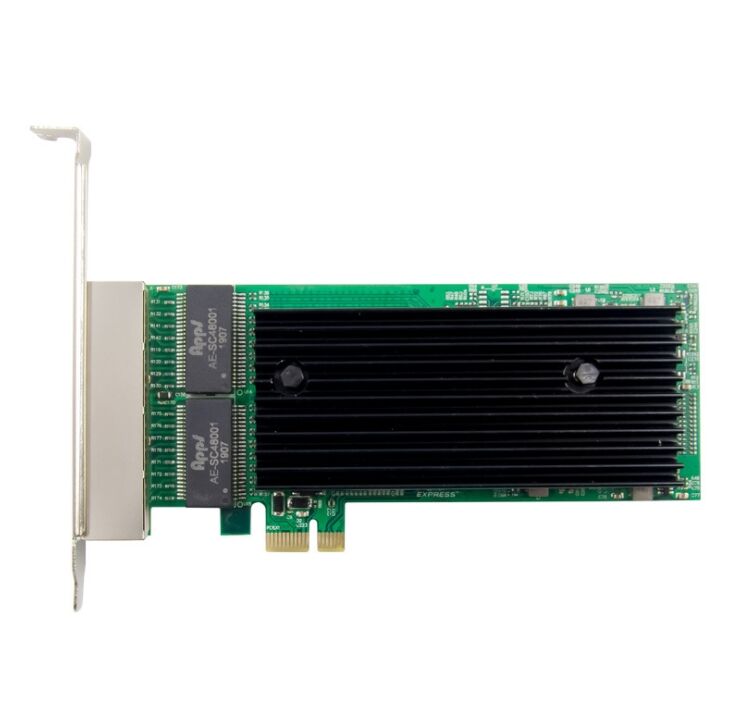

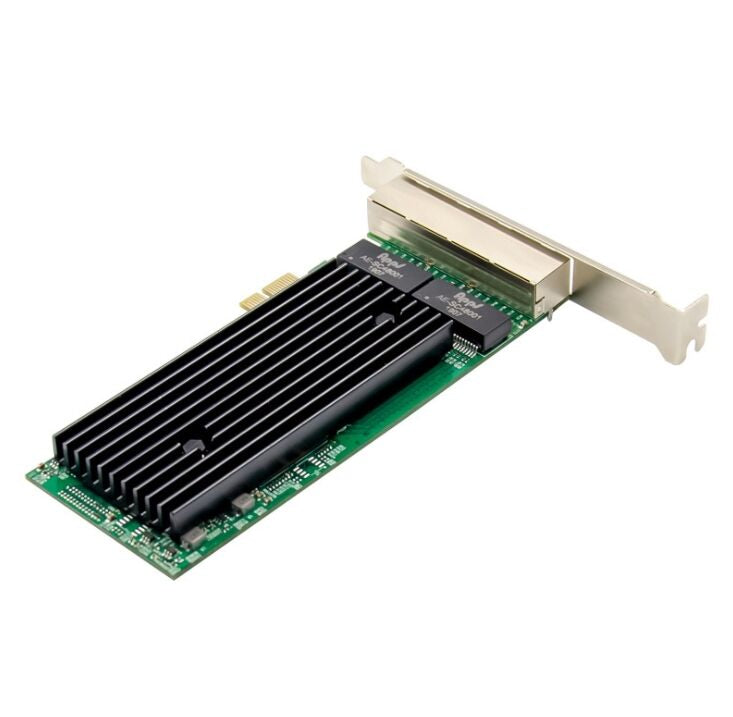

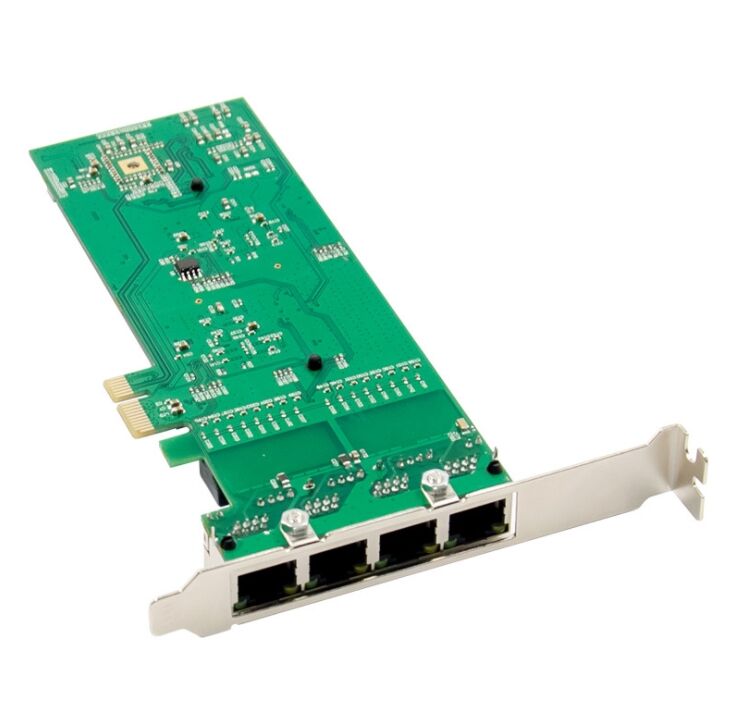

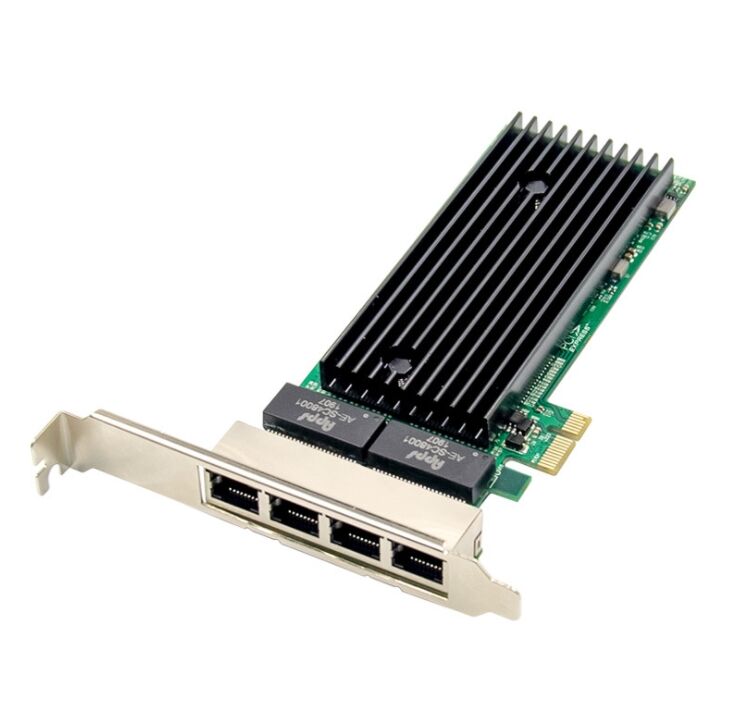

Plugadget PCI-E 10/100/1000M Lan 4-Port RJ45 Gigabit Ethernet PCI-Express X14 Server Adapter Network Card Intel I82576EB T4 Chipset

:In stock



Gigabit LAN CARD intel I82576 CHIPSET

Supports 10/100/1000Mbps Nway Auto-Negotiation

Supports 10/100Mbps full and half duplex, 1000Mbps,full duplex

Supports Full Duplex Flow Control (IEEE 802.3x)

Supports IEEE 802.1P, IEEE 802.1Q VLAN tag

Supports Jumbo Frame

Supports Auto-MDI/MDIX

supporting remote boot

Supports ACPI, PCI power management

Contain two large independent receive and transmit


One STP/UTP connector

Provides LEDs to indicate network Link/Activity/Speed/Duplex

Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p

CSMA/CD, TCP/IP, PCI Revision 2.1/2.2

Transmission Rate:10/100/1000Mbps for Half-Duplex mode

Flow Control: IEEE 802.3x Flow Control (Full-Duplex)

Ports:10/100/1000Mbps RJ45

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicator ;1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex


Operating Temperature: 0℃~40℃(32℉~104℉)

Storage Temperature : -40℃~70℃(-40℉~158℉)

Operating Humidity :10% ~ 90%, non condensation

Storage Humidity : 5%~90% non-condensing

Operating System

Windows 95/98/ME/NT4.0/2000/2003/XP/Vista, win7/WIN8/WIN10,Mac ios。Netware, Linux

Package Included:

1 x PCI-E Gigabit Ethernet 4 ports
