Plugadget PCIe 1X IEEE 1394A 4 Port(3+1) PCI-E Firewire Card Adapter With 6 Pin To 4 Pin IEEE 1394 Cable For Desktop PC

:In stock



1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel.

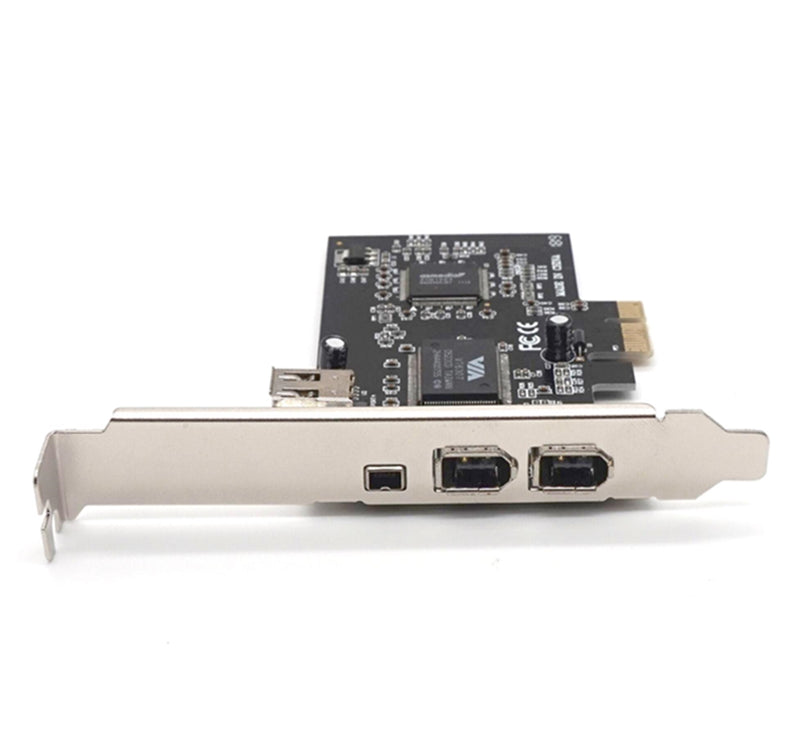

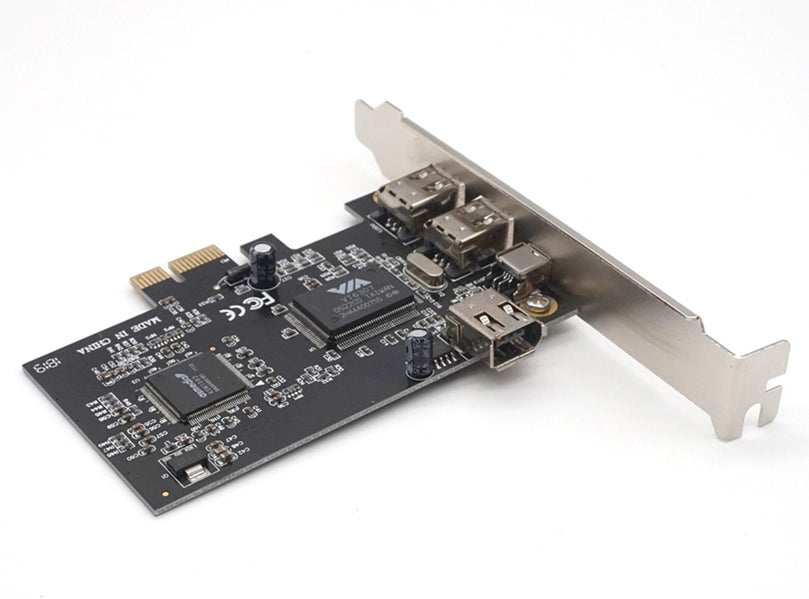

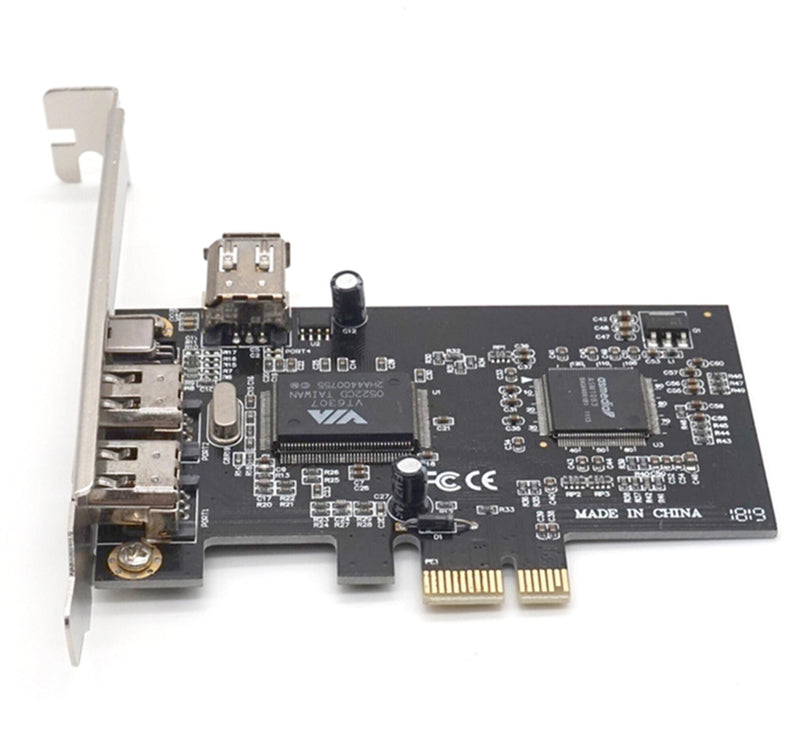

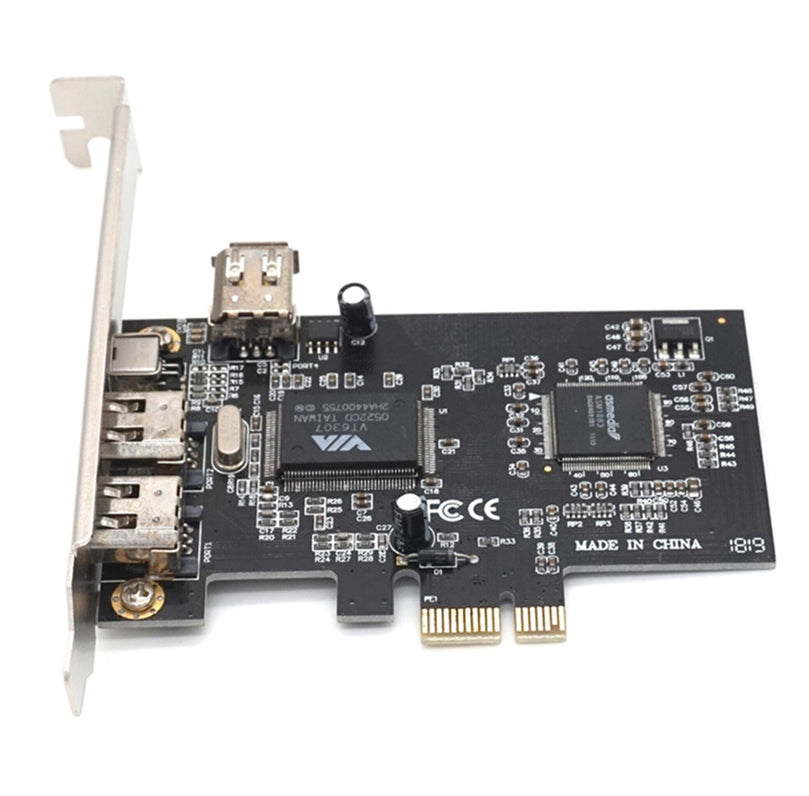

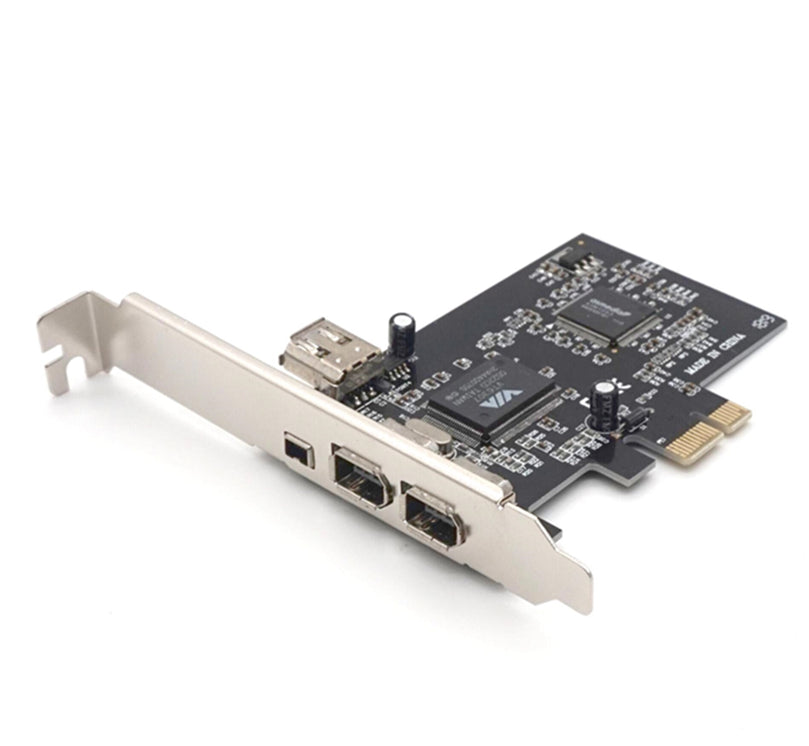

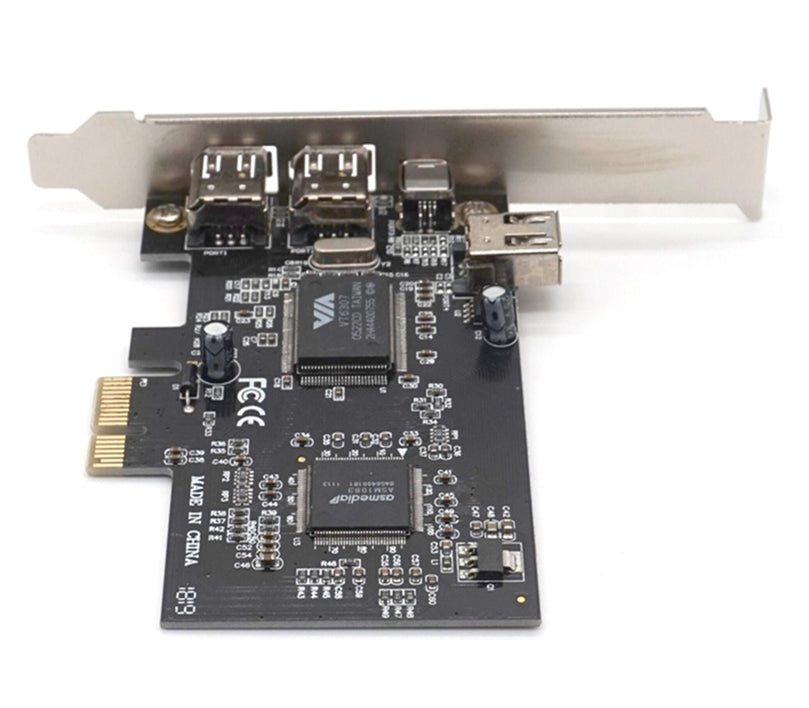

3x external 1394A ports (2 * 6 Pin + 1 * 4 Pin) and 1x internal 1394A port (1 * 6 Pin).

Compliant with PCI-Express revision 1.0a.

Compliant with IEEE 1394-1995, 1394a-2000 standard.

Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1.

Support 400/200/100Mbps data transfer rate.

Allows to connect more 1394a devices to your computer easily.

Attention: Don't Support hot-plugging. Before installation, Turn off the power and then plug in the power cord.

3 external FireWire(1394a) ports to support DV camcorders, hard disk, removable drives, scanner, digital cameras and other FireWire devices.

 OS Support:

for Windows 2000/XP/Server 2003/Vista /Windows 7 /Windows 8 / Windows 10 32/64 bit

Please note: The built-in 6-Pin IEEE 1394 female on metal bar can not work with the 9-Pin IEEE 1394 female on board simultaneously.


Material: Plastic + Metal

Color: Black (shown as pictures)

Size: 100×120×18mm/3.94×4.72×0.71in (Approx.)

Cable length: 80cm/31.50in (Approx.)


     2* 6-Pin IEEE 1394 female(on metal bar); 1* 6-Pin IEEE 1394 female(on board)

     1* 4-Pin IEEE 1394 female

Quantity: 1 Set

Package Included:

1 X PCI-Express IEEE 1394A Firewire Card

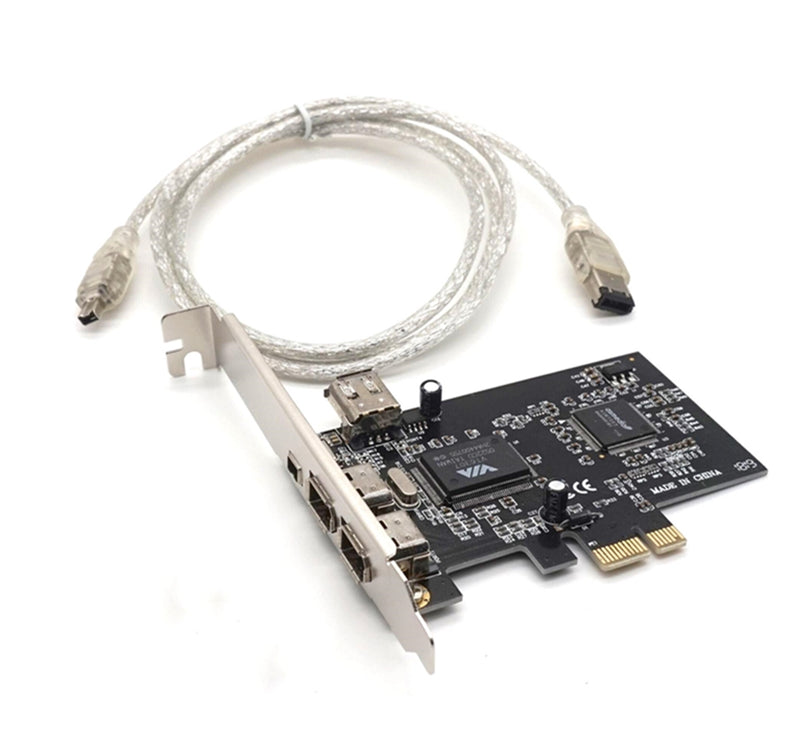

1 X 6Pin To 4Pin IEEE 1394 Cable
