Features:

1). PCI Express

. Single-lane (X1) PCI Express End-point Controller with PHY integrated

. Compliant with PCI Express 2.0 Gen 1

. Compliant with PCI Express card specifications

. Compliant with PCI Power Management 1.2

. Supports both legacy and MSI Interrupts

. Supports ASPM Power Management

Please note some sections of the manual are only applicatable for the production that have such functions.

2). Serial Port

. Dual or Quad UARTs

. Supports RS-232

. Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control

. Supports Hardware, Software Flow Control

. Supports 5, 6, 7, 8 and 9-bit Serial format

. Supports Even, Odd, None, Space and Mark parity

. Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port

. Supports remote wakeup and power management features

. Serial Port transceiver shutdown support

. Supports Slow IrDA mode (up to 115200bps) on all Serial Ports

. Supports multi-drop application for 9-bit mode

. Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin

. Supports DMA burst transfer

. Operating temperature range: 0 to 70°C or -40 to +85°C （option）

. Support special baud rate （option）

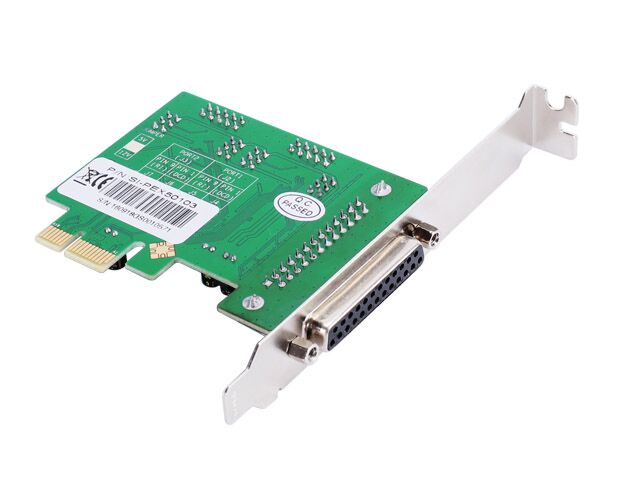

3). IEEE1284 Parallel Port

. Compatible with IEEE 1284-SPP/Byte/ECP Mode

Applications

. Serial Attached Devices

. Serial Networking/Monitoring Equipment

. Data Acquisition System

. POS Terminal & Industrial PC

. Add-On I/O Cards -Serial /USB

. Embedded systems - For I/O expansion

Software Support

. Windows XP/2003 Server/Vista/7/8.x/10

. Linux Kernel 2.6.15 and later

. Android 1.x/2.x/3.x/4.x/5.x

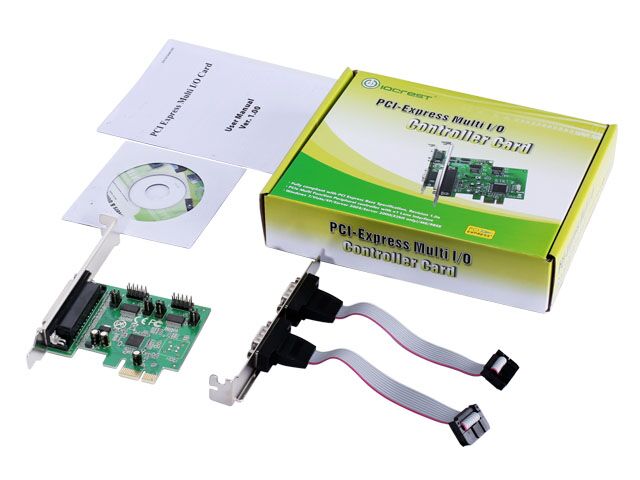

Package Included:

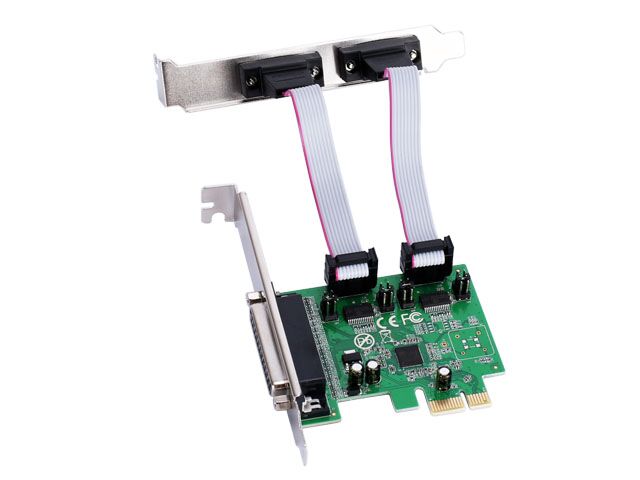

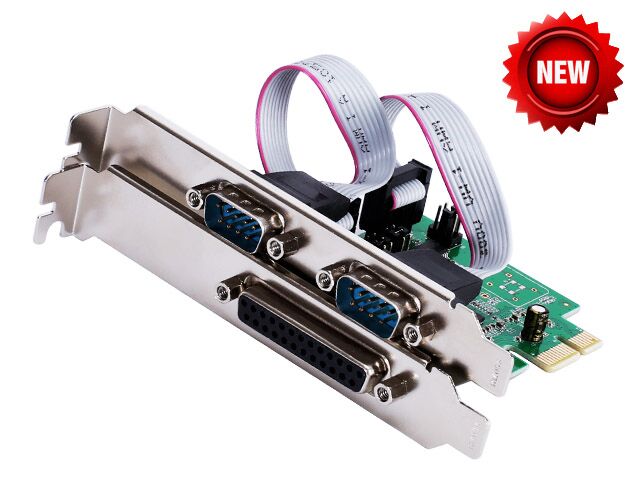

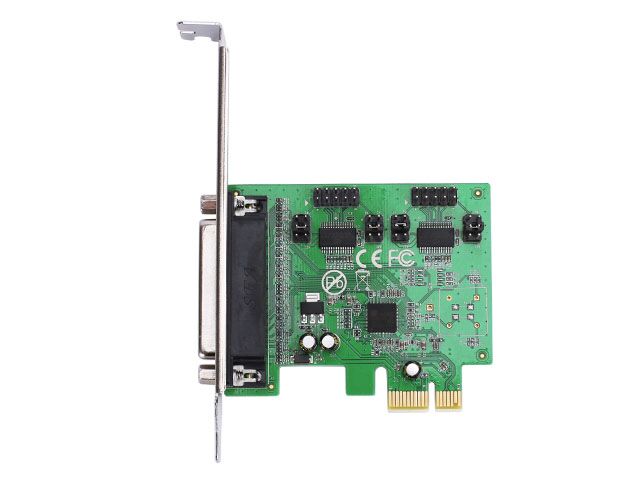

1 x PCI-E Controller card
