Plugadget RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail) 4 Port RS485 HUB Adapter

()

Regular price: $109.00
Sale price: $109.00
Regular price
Unit price: per

Features: RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail) Specification model： UT-5204 Standards: RS-232C、RS-485 EIA/TIA Interface: RS-232C: 10 bits terminal block RS-485: 10 bits terminal...

Type: Serial Adapter

Vendor: Plugadget

Sku: PGSCA-033

Availability: In Stock

Tags: 4 Port RS485 Adapter,4 Port RS485 HUB,RS485,RS485 1 to 4,RS485 RS232,

Product variants

Quantity

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

size chart

Care Instructions

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Description
Reviews

Features:

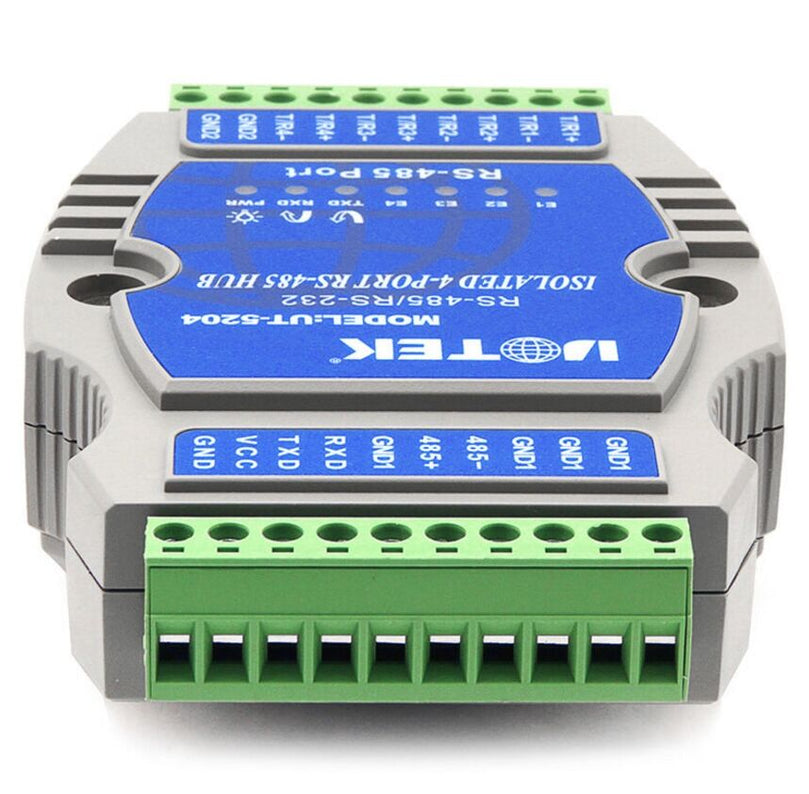

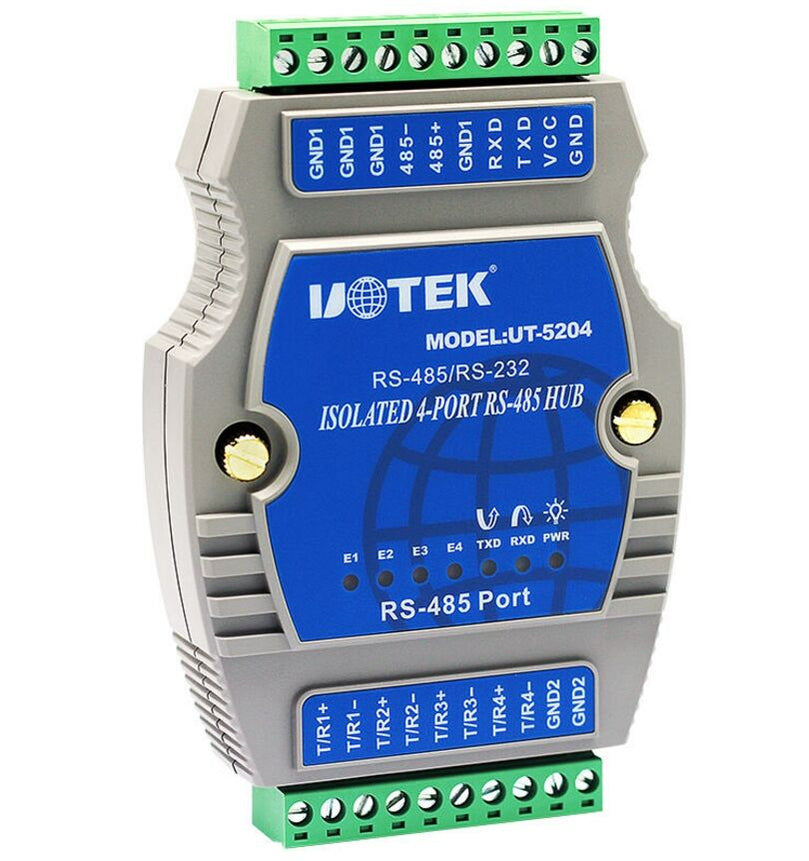

RS-232/RS-485 to 4 Ports RS-485 Hub (Din Rail)

Specification model： UT-5204

Standards: RS-232C、RS-485 EIA/TIA

Interface: RS-232C: 10 bits terminal block

RS-485: 10 bits terminal block

Transmission media: twisted-pair or shielded cable

Working mode: asynchronous half-duplex

Operating power: 9-30VDC/350mA

LEDs for indicating PWR TXD, RXD, and E1-E4 activity

Isolated voltage 2,500VRMS 500 DC, DC/DC module

Baudrate: 300bps-115.2kbps

Protection level: RS-232 ±15KV ESD protection

RS-485 provides with 600W lightning, surge protection each line

Transmission distance: 0-5,000m (115,200-300bps)

Dimension: 120mm×80mm×25mm

Operating temperature: -40℃ to 85℃

Relative humidity: 5% to 95%

Work with all communication software, plug & play

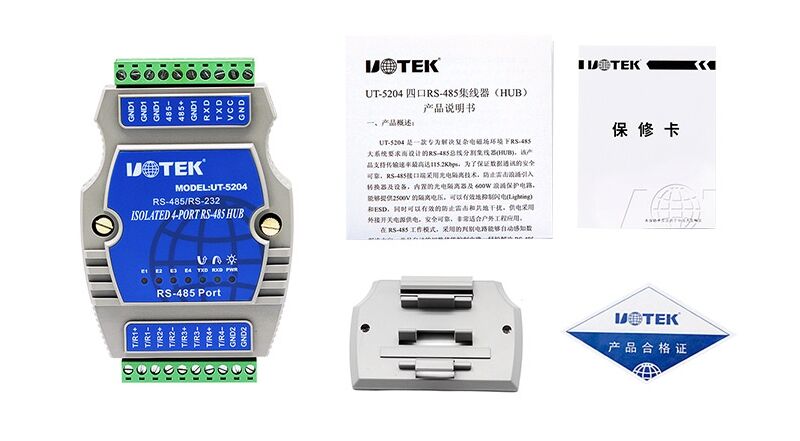

Package Included:

1 x RS-232/RS-485 to 4 Ports RS-485 Hub
