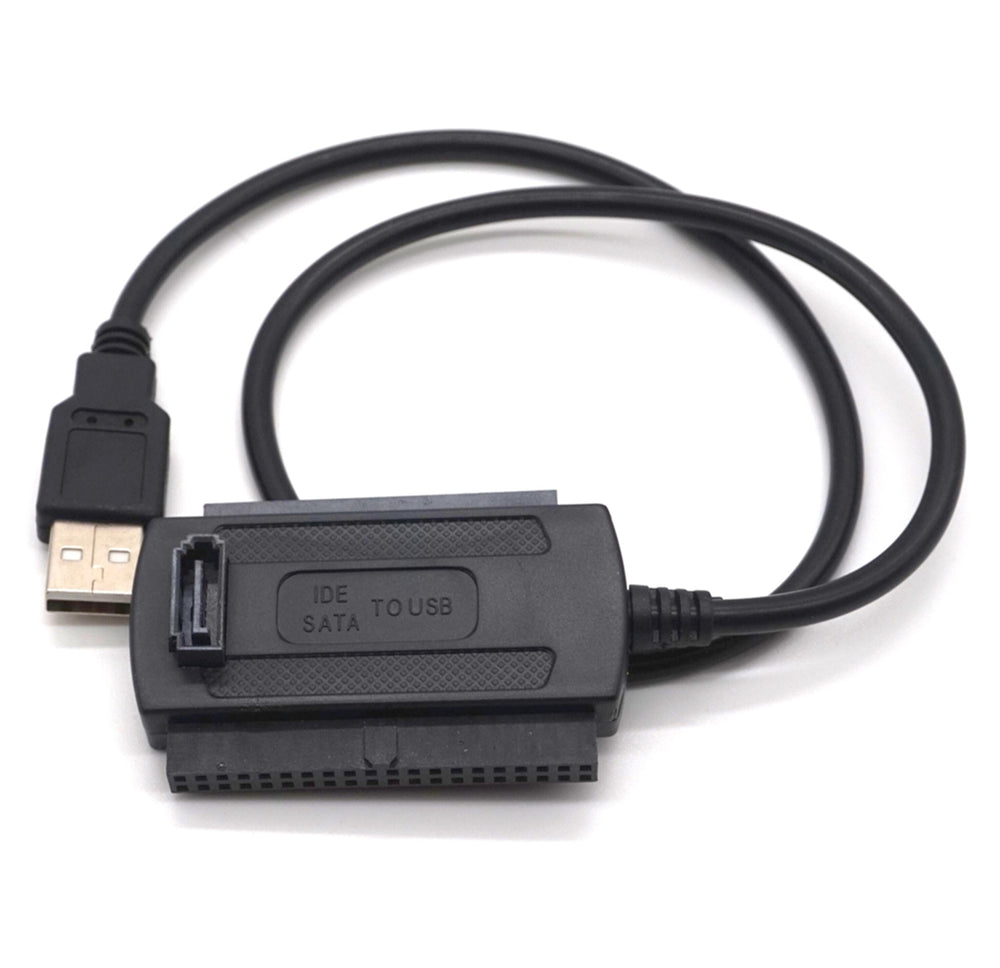

Plugadget SATA/PATA/IDE Drive to USB 2.0 Converter Cable SATA Data Cable for Hard Drive Disk 2.5/3.5
This USB 2.0 to IDE/SATA drive adapter implements a bridge between a USB port and one SATA, ATA or ATAPI based mass storage device port. The Hi-Speed USB interface provides for easy installation with its Plug and Play design. The adapter supports all existing IDE/ATAPI devices such as a CD-ROM, CD-RW, DVD-ROM and 2.5 and 3.5 IDE and SATA hard drives.
USB 2.0 to IDE/SATA drive adapter turns any standard IDE or SATA drive into a convenient external drive. Easily transfer files from computer or notebook, back up files, or store large file archives on hard drives.
The USB interface connected to the 2.5 and 3.5 inch IDE and SATA hard disk interface.
USB2.0 TO IDE/SATA high-speed connection.
USB2.0 high speed transmission, stable performance.
Support CR cd-rom, DVD, cd-rom, CD - RW, DVD RW.
Supported system: Windows 2000, me, XP, Vista and Mac OS.
If it is below Windows 2000 / ME / XP / Vista, then the drive is not needed.
-Solid structure and stable performance
-USB transfer IDE/SATA conversion cable
-Conversion head integration (2.5 inch, 3.5 inch and 5.25 inch, type hard disk (below 320g), cd-rom (the recorder)
-It supports hot plug, plug and play.
-It can be used in hard disk, cd-rom, Campbell, MO and ZIP transfer thereof.
-With good compatibility, it can realize data exchange across the hardware platform.
-It is designed with up to 480 MB/s quick transfer rate.
USB Cable Length: about 62cm / 24.41in.
4 Pin Power Cable Length: about 17.5cm / 6.89in.
SATA Cable Length: about 36cm / 14.17in.
1. Place the hard disk (with hard disk box) of the jumper wire under the disc (MASTER) mode before using. (There is no power cord and other accessories.)
2. Connection Order
(1) First connect the power cord to 220 v mains.
(2) Connect the power adapter to the power cord end so as not to spark phenomenon due to too large electric current, which may burn the power adapter.
(3) Connect the USB cable to your PC and turn on the hard disk box power, then it can exchange data a few minutes after the computer identifies the USB device.
3. Hard Disk Box Removal
Remove the hard disk box in the same way of the USB device removal and then pull out the hard disk box.
1 x USB 2.0 To IDE SATA Adaptor Cable
1 x 4 Pin Power Cable
1 x SATA Cable
