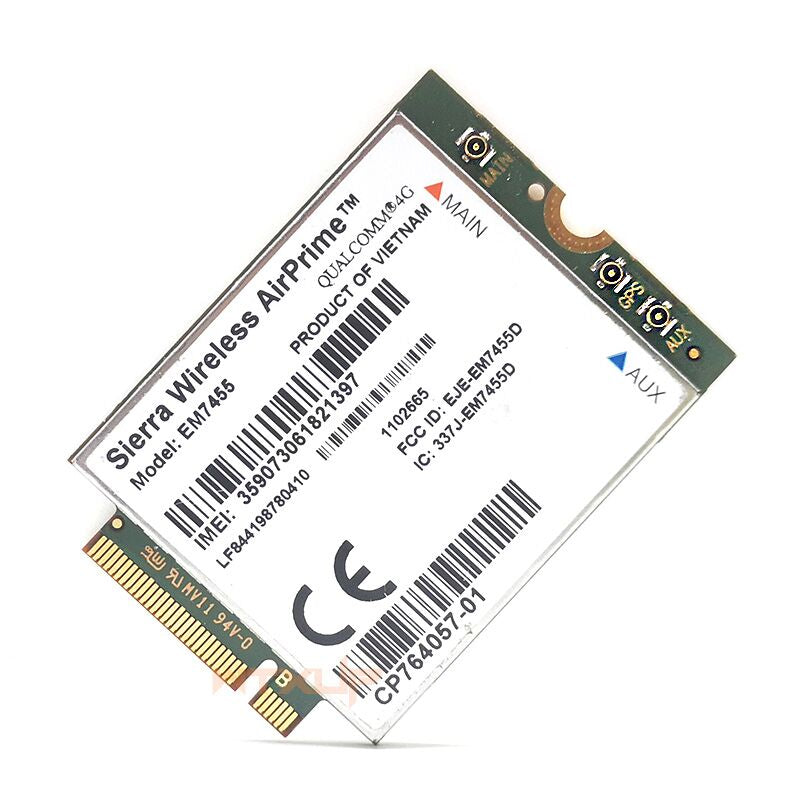

Plugadget Sierra Wireless EM7455 FDD/TDD LTE Cat6 NGFF/M.2 4G MODULE 4G CARD 300Mbps

:In stock



The Sierra Wireless EM7455 Embedded Module is an LTE Cat 6 M.2 module that provides LTE, UMTS, and GNSS connectivity for notebook, ultrabook, tablet computers, and M2M applications over 15 different LTE radio frequency bands globally with primary target area Americas and EMEA.

The EM7455 will allow a maximum downlink speed of 300 Mbps and a maximum uplink speed of 50 Mbps, including LTE Advanced, with automatic fall back to 3G networks.

Don't use with Lenovo/HP laptop.

Sierra Wireless Airprime EM7455 Technical Specifications:

* Category: 4G Module

* Manufacturer: Sierra Wireless

* Chipset: Qualcomm

* Form Factor: PCIe M.2

* Pins: 52-pin

* Frequency bands

- LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25,B26, B29, B30, B41

- UMTS/HSPA+: B1, B2, B3, B4, B5, B8

* Technologies: UMTS,HSDPA,HSPA+,LTE

* Max Download Speed: 300 Mbps

* Max Upload Speed: 50 Mbps

* Temperature: -10 o C to 55 o C

* Certifications/Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB

* Carriers Approved: Planned: AT&T, Verizon, Sprint, Vodafone, Telefonica, Orange

* Connectors: Main, Aux/GNSS, GNSS

* Satellite Systems: GPS, Glonass, Beidou, Galileo

* Modes: Standalone, SUPL 2.0, XTRA 3.0

* Contrl Options: APIs, AT Commands

* Voltage: 1.8V

* Active Antenna Control: 4 pin

* Dynamic Power Control: 1 pin

* Interfaces: "USB 3.0, USB 2.0 High Speed"

* SIM interface: 2 x 1.8v or 3v* Audio: PCM/I2S**

Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset

* Dimensions: 42 x 30 x 2.3 mm

Package Included:

1 x  EM7455 Sierra Wireless 4G module
