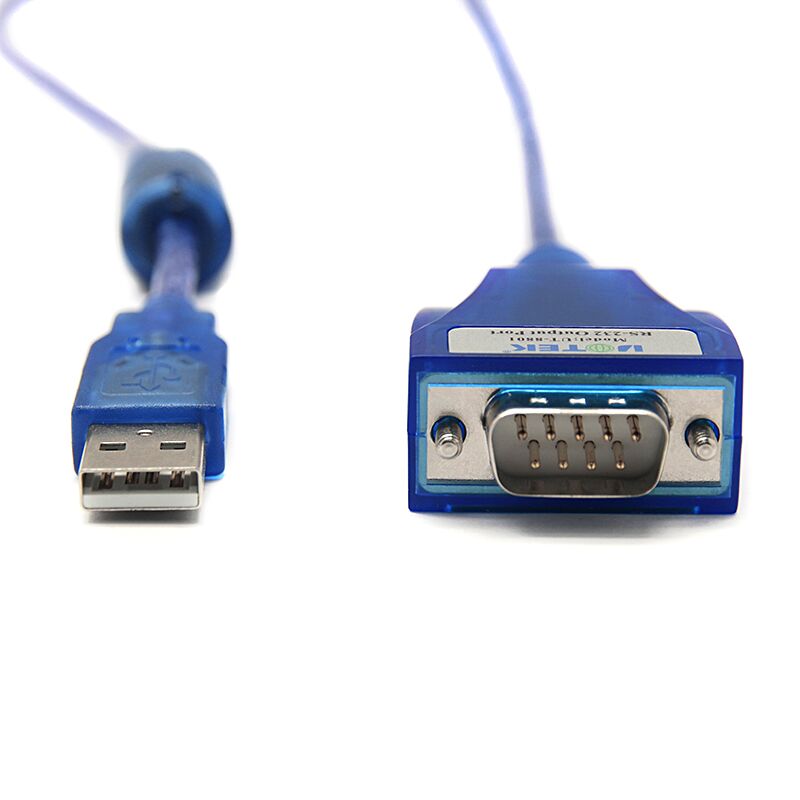

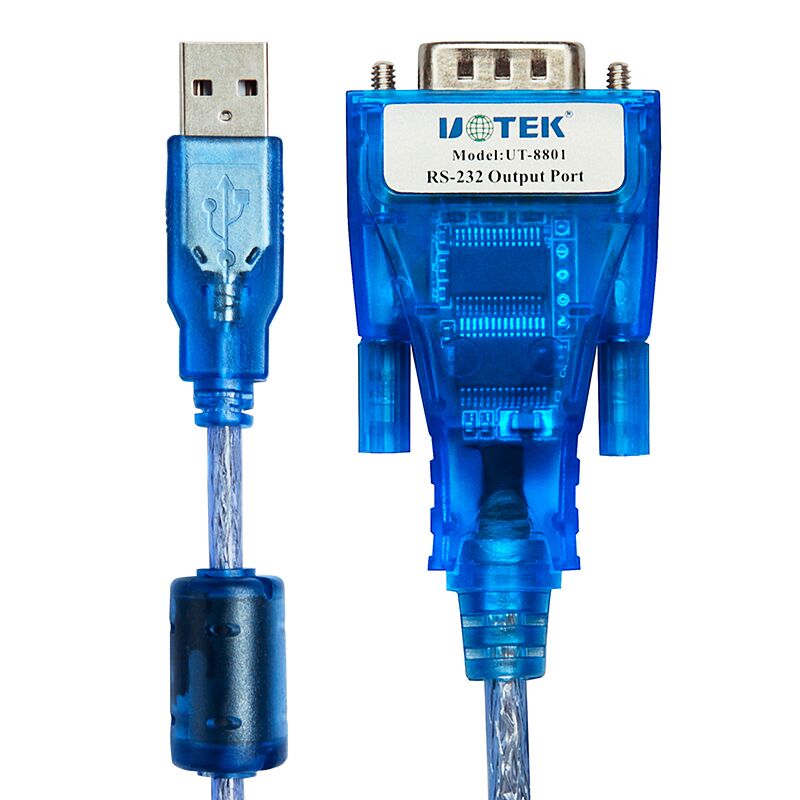

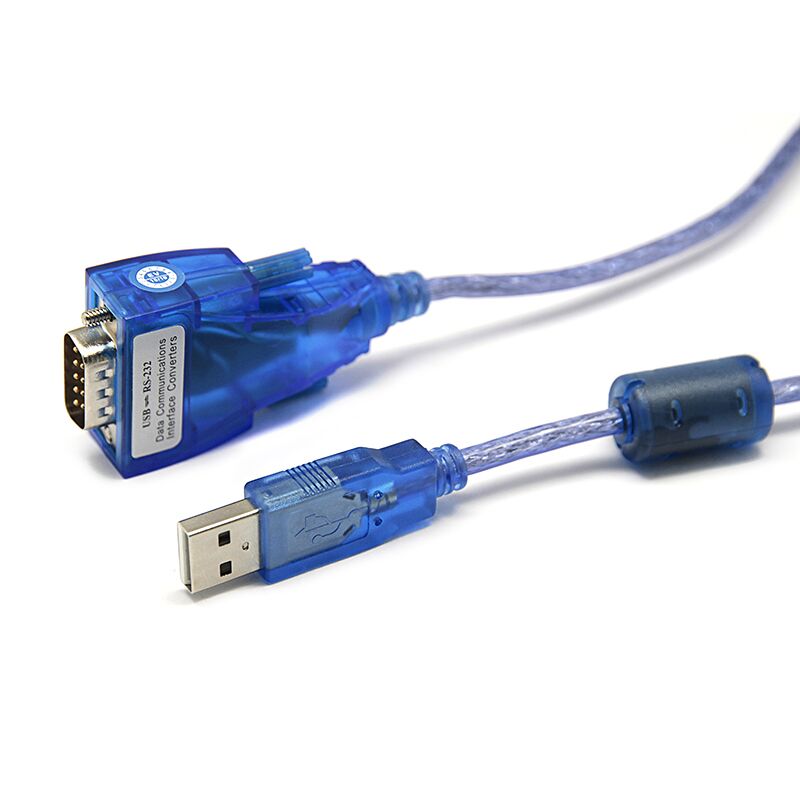

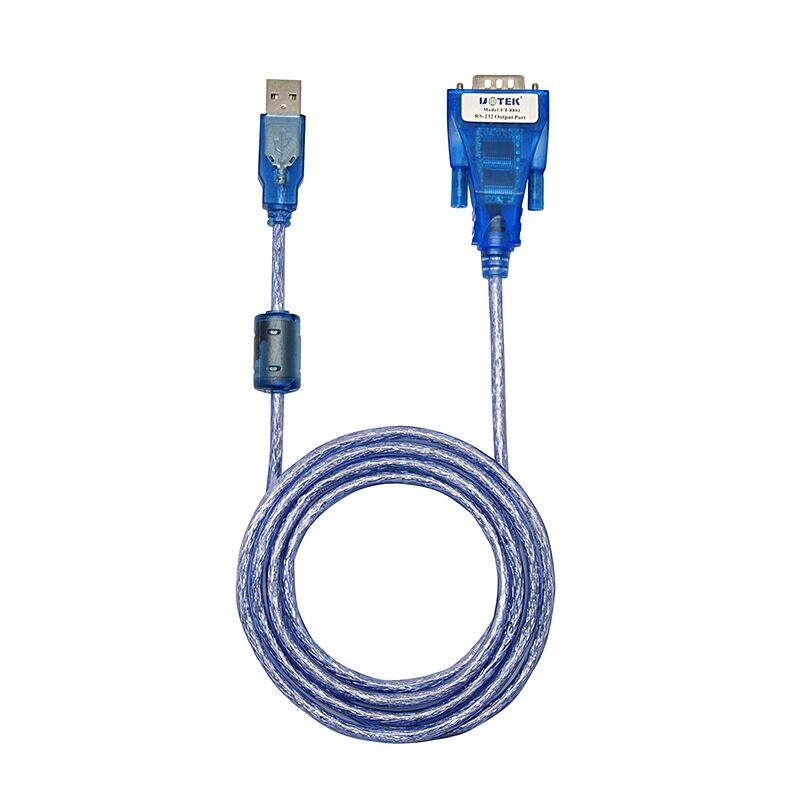

Plugadget USB to RS-232 Serial Converter with ESD protection Converter Adapter Cable FTDI Chipset usb to com db9 UT-8801
Standards: confirming to USBV1.0,1.1 and 2.0 and EIA RS-232.
USB signals:VCC, DATA+,DATA-,GND and FG.
Working signals:DCD RXD TXD DTR GND DSR RTS CTS RI
Working mode:asynchronous point-to-point.
Direction control:adoption of automatic data stream control for automatic recognition and control of data transmission direction.
Baud rete:300-921.6Kbs, automatic detection of the transmission rete of the serial interface signal.
Transmission distance:5 meters for RS-232 and less than 5 meters for USB.
Interface protection:+/- 15KV electrostatic protection.
Interface forms:B interface female connector and DB9 male connector for USB.
Signal indication:9 indicator lights for Power(PWR),Send (TXD) and Receive(RXD).
Transmission media:teisted-pair cable or shielded cable.
Dismensions:1530mm X 33mm X 16mm.
Working environment: -25°C to 70°C,relative humidity 5% to 95%.
Windows95/98/2000/XP/Vista and IMAG are supported.
Both BUS and external power supply are supported.
1 x USB to RS-232 Serial Cable
