Plugadget Wi-Fi 6 Intel AX201 M.2 Key E CNVio 2 Wifi Card Dual Band 3000Mbps Wireless Bluetooth 5.0 2.4Ghz/5Ghz 802.11ac/ax AX201NGW

:In stock




AX201NGW is compatible with fewer computers. It requires a computer with 10th generation CPU. Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVio2.

Wifi-6 AX201

The Wi-Fi 6 AX201 adapter is a CRF(companion RF module)supporting the integrated wireless 802.11ax solutions.The solution provides Bluetooth 5 and 2x2 802.11ax Wi-Fi.The maximum throughput supported by the Wi-Fi 6 AX201 is a speedy 2.4 Gbps(160Mhz). The AX201NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.


Model: AX201NGW

Dual band: 2.4Ghz / 5Ghz(160Mhz)

Speed up to 2.4Gbps (The router must on 160Mhz,802.11ax);

Speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both).

With Bluetooth 5.0, Support MU-MIMO

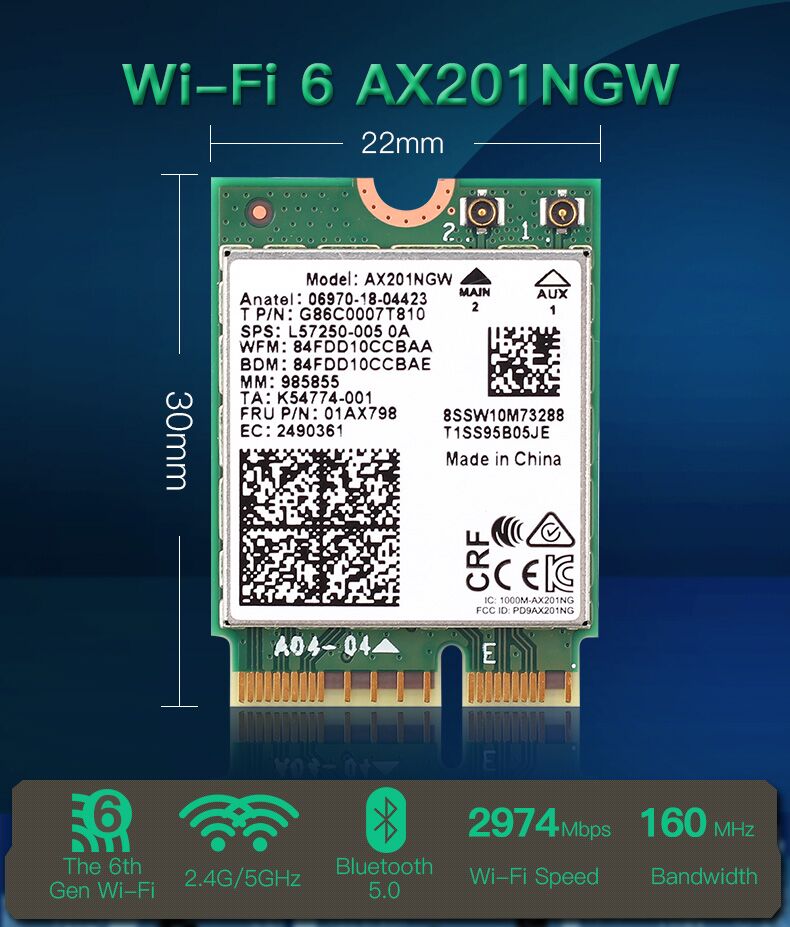

​Interface: M.2,CNVIo2, 22*30MM

Supported Operating Systems:  Only work on Microsoft Windows 10* 64bit,

Note: Not support Windows 7/8/8.1

The module supports MU-MIMO, 2x2 TX/RX channels with two antenna and Bluetooth 5.0

Compatible With:

Support almost laptop with NGFF(M.2) 2230 slot; Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc

(Do not include lenovo and HP,if it can use after rewrite the whitelist ).

Not support IBM/Thinkpad/lenovo/hp laptop.

(Any question,pls feel free to contact with us,thanks.)

Package Included:

1 x ax201NGW NGFF Key E Wireless card
