Plugadget WY5715DF-SX PCI-E X1 SFP Gigabit Fiber Ethernet Network Card Broadcom BCM5715S 10/100/1000 Mbps Multi Mode 1G 850nm LC

:In stock

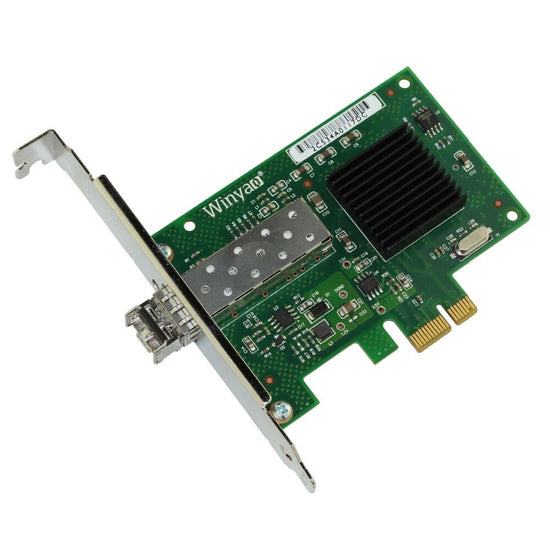

WY5715DF-SX is a PCI Express Gigabit optical network adapter card. The PCI Express adapter card contains an independent SFP LC multimode Gigabit Ethernet port.

---Based on the Broadcom BCM5715S PCI-E Gigabit Ethernet controller, this controller is the industry's first controller to support PCI Express server adapter cards.

Industry-leading performance

---The solution is designed for desktop computers and high-end equipment, and the performance is optimized so that system I/O is no longer a bottleneck for high-end network applications.

Reliability, availability, serviceability

---Able to achieve fault tolerance through bundling groups. Communication from the failed port will be routed to up to seven other members of the same group.

---Contains software with the best performance and features in the industry. VLAN (802.1q) can realize communication separation and protect data privacy. Through the support of 802.1p communication priority, the realization of network quality of service (QOS) management.

---With integrated hardware acceleration function, it can perform TCP/UDP/IP checksum offload and TCP segmentation tasks. Host processing technology can offload accelerators and free up CPU resources to process other applications.

---It is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

Applicable network type: Gigabit fiber Ethernet

Transmission rate: 1000Mbps

Bus type: PCI-E X1

Transmission medium and interface: optical fiber SFP (with a multimode 1G 850nm optical fiber module)

Number of interfaces: 1

Transmission distance: Multimode: 220 meters at 62.5 um, 550 meters at 50 um

Boot Rom: Not supported

Full duplex/half duplex: full duplex/half duplex adaptive

LED indicator: 1 indicator, Link/ACT indicator

Application areas: desktop, workstation, server

Main chip: Broadcom BCM5715S

Metal bracket: long and short baffle

Network standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad

Driver support: Microsoft Windows* (32 & 64 bit), SCO UnixWare* 7.x, Open Unix* 8.0, Novell ODI*, Novell Netware*, SUSE Linux Enterprise Server* 9.0, Red Hat Enterprise Linux* 4.0, Linux*, FreeBSD*, Sun Solaris*, Microsoft DOS*, VMWare ESX*

Features: Support PXE diskless boot, VLAN aggregation, soft routing, etc.

Package Included:

1 x WY5715DF-SX Card
